N9K-C9364C Cisco Nexus 9364C ACI Spine Switch with 64-Port 40/100G QSFP28 2-Port 1/10G SFP Network Switch

Key Attributes:

Model No.: N9K-C9364C
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable

Product Details

* 100% Original New * N9K-C9364C: Cisco Nexus 9364C ACI Spine Switch with 64-Port 40/100G QSFP28, 2-Port 1/10G SFP

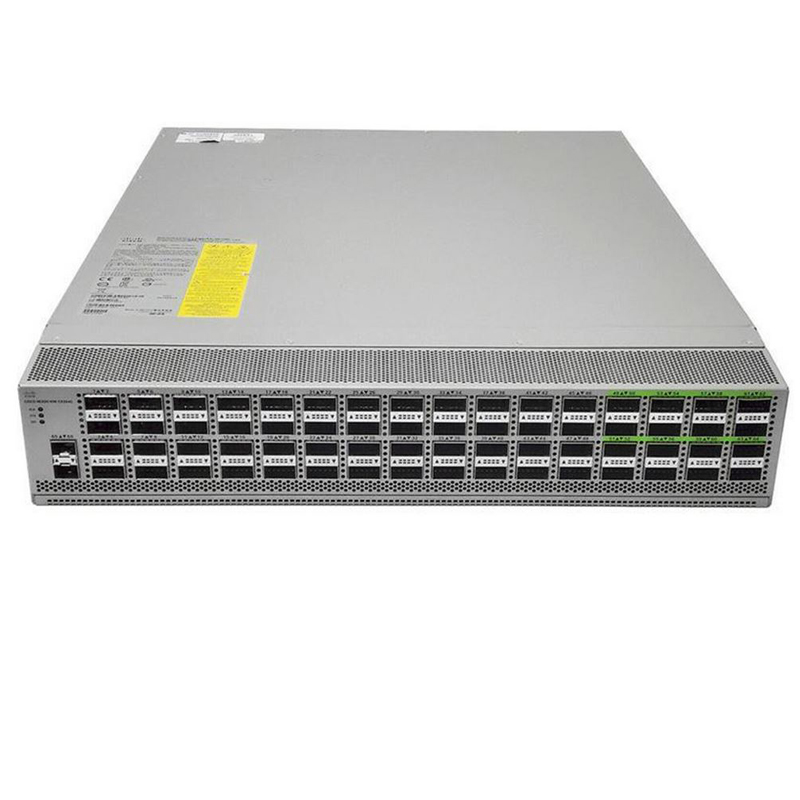

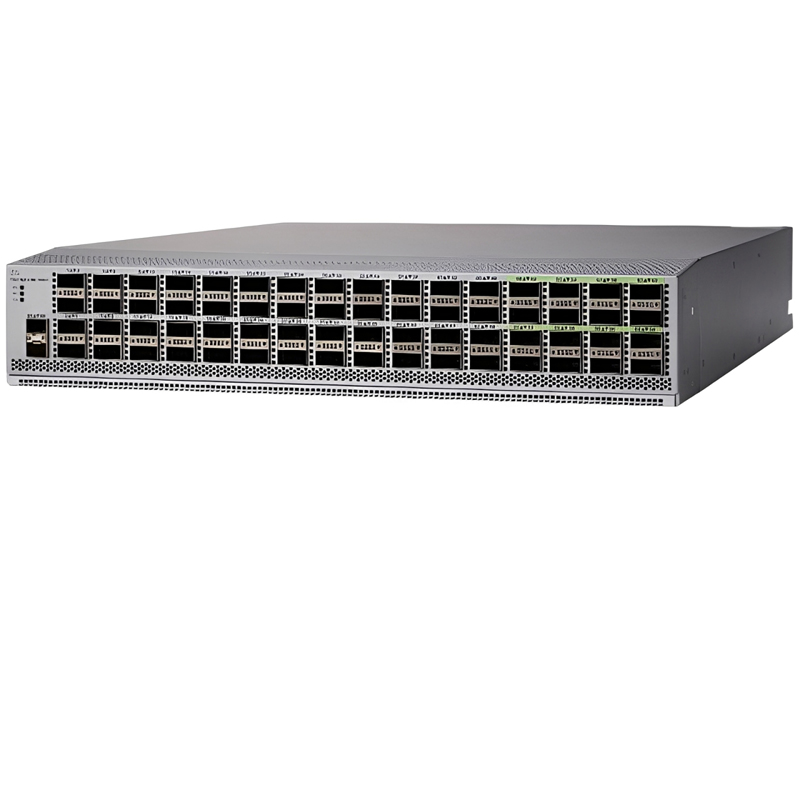

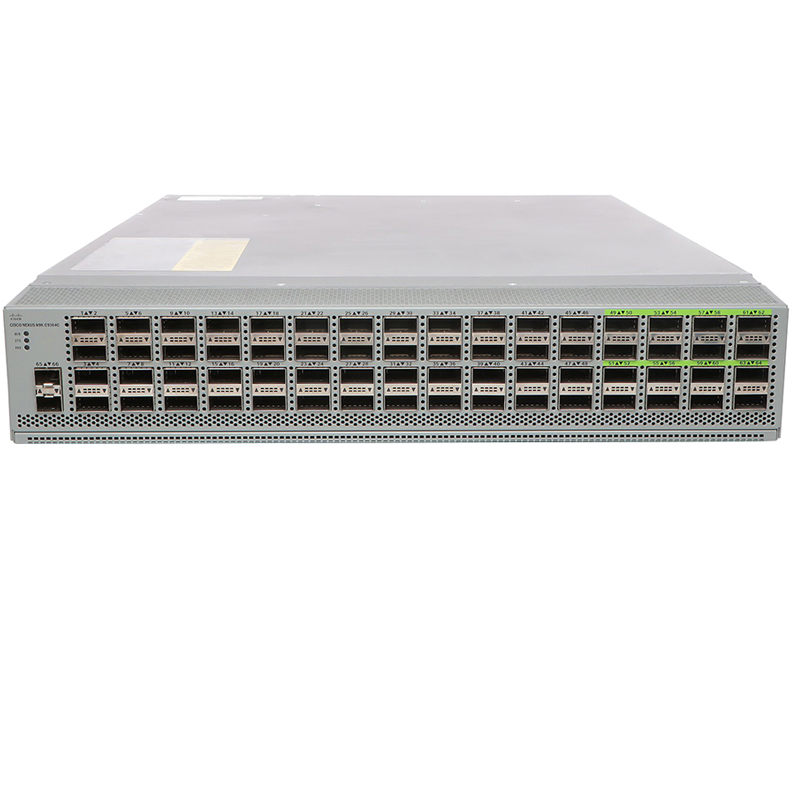

N9K-C9364C is the Nexus 9364C ACI Spine switch with 64p 40/100G QSFP28. The Cisco Nexus 9364C ACI Spine Switch is a 2-Rack-Unit (2RU) spine switch for Cisco ACI that supports 12.84 Tbps of bandwidth and 4.3 bpps across 64 fixed 40/100G QSFP28 ports and 2 fixed 1/10G SFP+ ports. Breakout is not supported on ports 1 to 64. The last 16 ports marked in green support wire-rate MACsec encryption.

Specification

N9K-C9364C Specification
Model No.	N9K-C9364C
Brand	Cisco
Physical	64-port 40/100G QSFP28 ports and 2-port 1/10G SFP+ ports Buffer: 40MB System memory: 32GB SSD: 128GB USB: 1 port RS-232 serial console ports: 1 Management ports: 2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) Broadwell-DE CPU: 4 cores

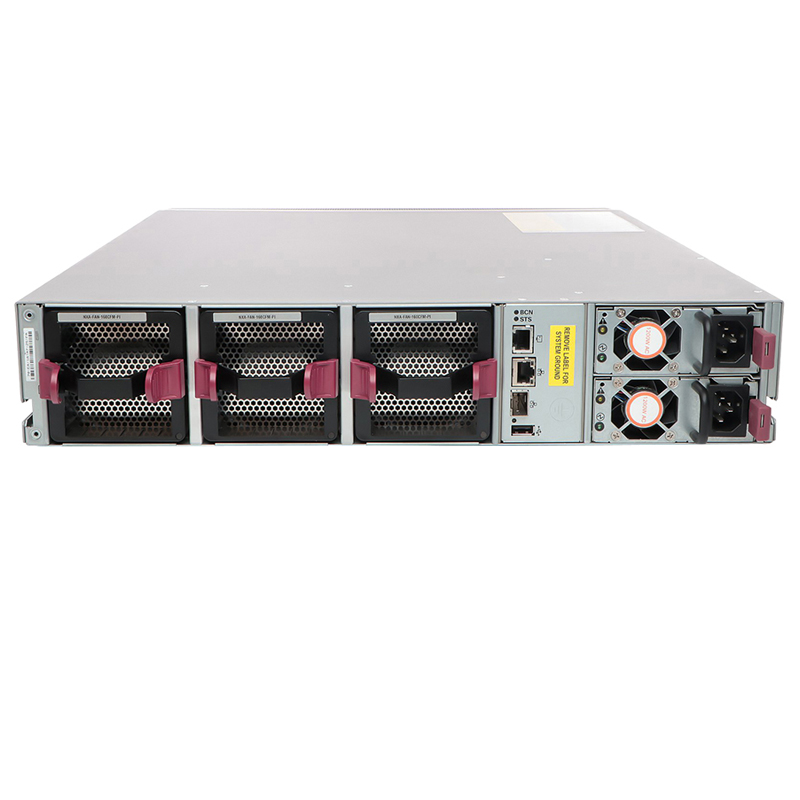

Power and cooling	Power: 1200W AC, 930W DC or 1200W HVAC/HVDC Input voltage: 100 to 240V * AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal) *Supports input voltage of 100-120V for a max output of 800W, 200-240V for a max output of 1200W. PSU redundancy is not supported when used in 100-120V Hot-swappable, dual fan trays with redundant fans Frequency: 50 to 60 Hz (AC) Efficiency: 90% or greater (20 to 100% load) Port-side intake or port-side exhaust options Typical power: 429W (AC) Maximum power: 1245W (AC)
Environmental	Physical (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm) Weight: 36.9 lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans Operating temperature: 32 to 104°F (0 to 40°C) Nonoperating (storage) temperature: –40 to 158°F (–40 to 70°C) Humidity: 5 to 90% (noncondensing) Altitude: 0 to 13,123 ft (0 to 4000m) RoHS compliance: Yes
Acoustics	Fan speed at 40%: 76.7 dBA Fan speed at 70%: 88.7 dBA Fan speed at 100%: 97.4 dBA
MTBF	257,860 hours
