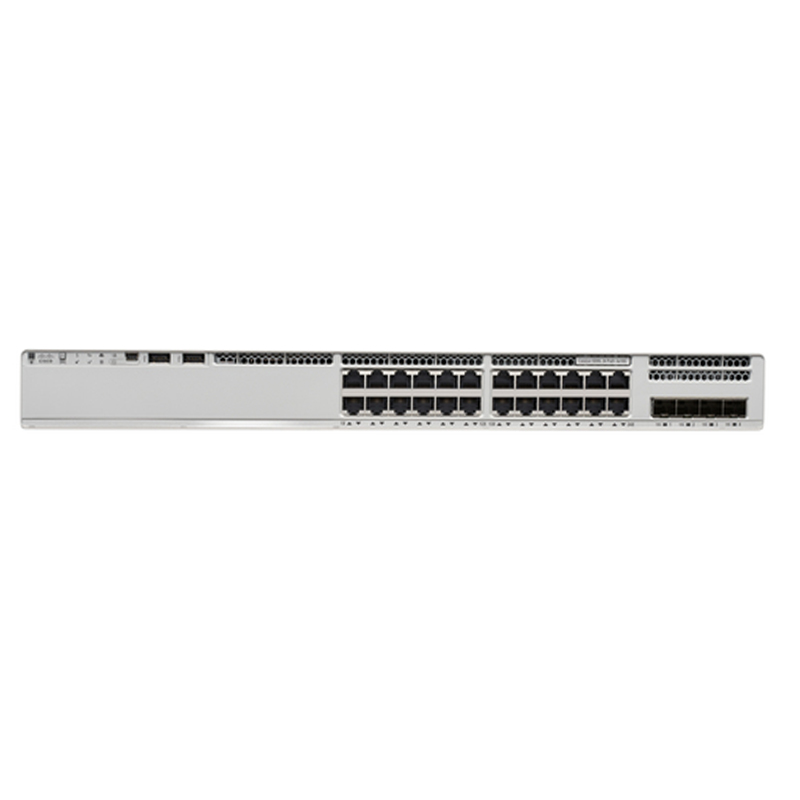

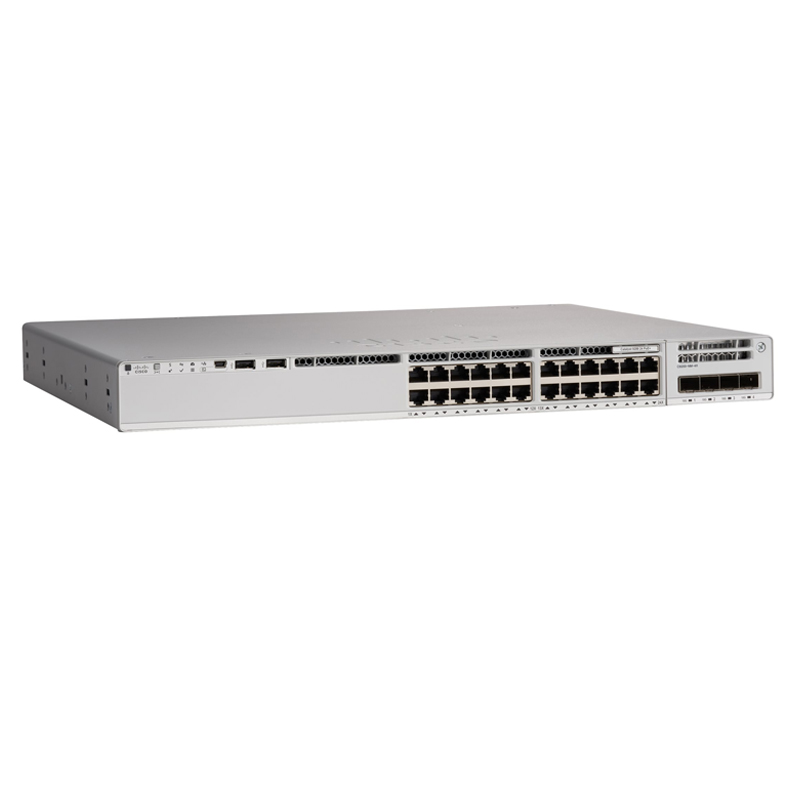

C9200L-24P-4X-A Cisco Catalyst 9200L 24-port PoE+ 4x10G uplink Switch Network Advantage
Model No.: C9200L-24P-4X-A
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9200L-24P-4X-A: Cisco Catalyst 9200L 24-port PoE+ 4x10G uplink Switch, Network Advantage
Cisco's C9200L-24P-4X-A is a robust enterprise-class switch built to deliver resilient networking for modern business environments. Part of the Catalyst 9200 series, this model advances the legacy of reliable Cisco solutions, delivering scalable and efficient Layer 2/3 switching for distributed campuses and secure branch deployments. At its core, the 9200 series stands out for its comprehensive feature set, highlighted by the C9200L-24P-4X-A's support for advanced PoE+ on all 24 access ports, fast 4x 1G SFP uplinks, and energy-efficient operation. The cisco platform ensures sophisticated security, powerful routing protocols like OSPF, EIGRP, RIP, and BGP, and rock-solid compliance to global standards. End users, SMB system integrators, and distribution partners benefit alike: seamless device power delivery (370W total PoE budget), simplified management via Cisco IOS-XE and SNMPv3/RESTCONF, and compact design with silent operation in diverse climates. For those investing in the future, the 9200 architecture emphasizes not only high availability—thanks to advanced security features including TrustSec and MACsec—but also long-term operational confidence with an impressive MTBF of 390,310 hours. The C9200L-24P-4X-A represents an agile networking solution specifically engineered to meet the evolving needs of mid-sized and distributed enterprise networks, across global regions. It empowers a secure, efficient foundation for organizational growth and digital transformation, with trusted cisco dependability at the forefront.
Specification
| C9200L-24P-4X-A Specification | |
| Model | C9200L-24P-4X-A |
| Brand | Cisco |
| Series | Catalyst 9200L Series |
| Product Type | Fixed Configuration Switch |
| License Level | Advantage (A) |
| Chassis Dimensions (Base Unit) | 1.73 × 17.5 × 11.3 in (4.4 × 44.5 × 28.8 cm) |
| Chassis Dimensions (With FEP/Fan) | 1.73 × 17.5 × 12.9 in (4.4 × 44.5 × 32.9 cm) |
| Fixed Ports | 24 × 10/100/1000BASE-T (RJ45) with PoE+, 4 × 1G SFP uplinks |
| Switching Capacity | 96 Gbps |
| Forwarding Rate | 72 Mpps |
| Buffer Memory | 16 MB shared |
| MAC Address Table | 32,000 entries |
| VLAN Support | 4,096 active VLANs, 1,500 STP instances |
| Power Supply | 600W AC (PWR-C5-600WAC or PWR-C6-600WAC) |
| Input Voltage | 100–240V AC, 50/60Hz |
| MTBF | 390,310 hours (~44.6 years) |
| PoE Budget | 370W total PoE power, supports 802.3af/at PoE+ |
| Licensing | Advantage (pre-installed) |
| Minimum IOS-XE Version | 16.12.1 |
| Layer 3 Routing | Static routing, RIP, EIGRP, OSPF, BGP |
| Security Features | 802.1X, MACsec, TrustSec, Flexible NetFlow, sFlow |
| Operating Temperature | 32°F to 104°F (0°C to 40°C); short-term: -5°C to 50°C (up to 96 hrs/year) |
| Humidity | 5% to 90% non-condensing |
| Altitude | Up to 10,000 ft (3,000 m) |
| Noise Level (25°C ambient) | LpA: 42 dB typical, 45 dB max; LwA: 5.3 B typical, 5.6 B max |
| Management Interfaces | 1 × RJ45 console (10/100), 1 × RJ45 management (10/100) |
| Management Protocols | SNMPv3, NETCONF/YANG, RESTCONF, gRPC |
| Compliance | Safety: UL 60950-1, EN 62368-1; EMC: FCC Part 15 Class A, EN 55032; RoHS compliant |
| Weight | 12.13 lbs (5.5 kg) |
