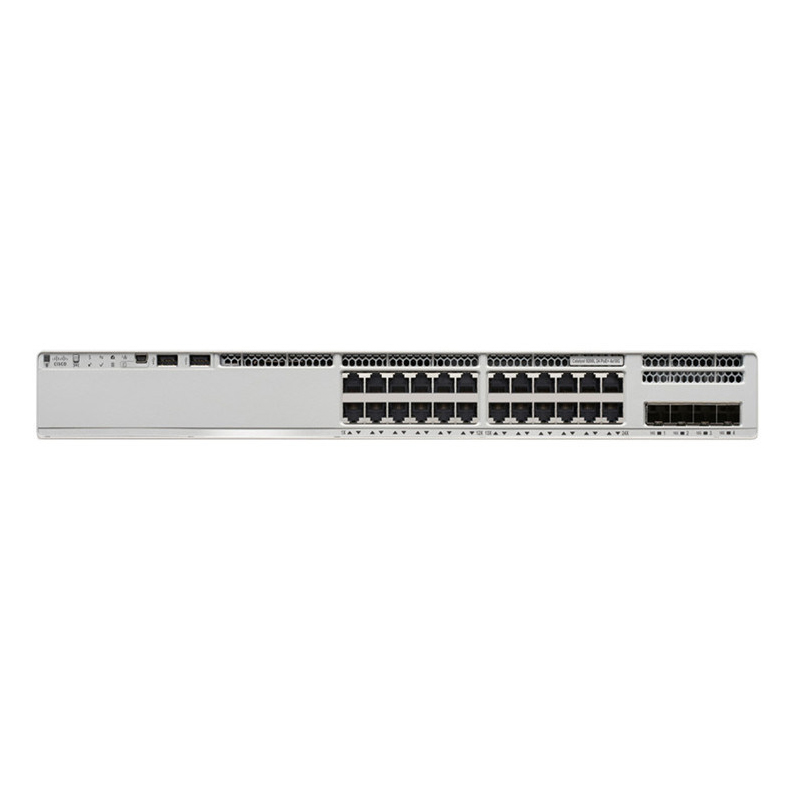

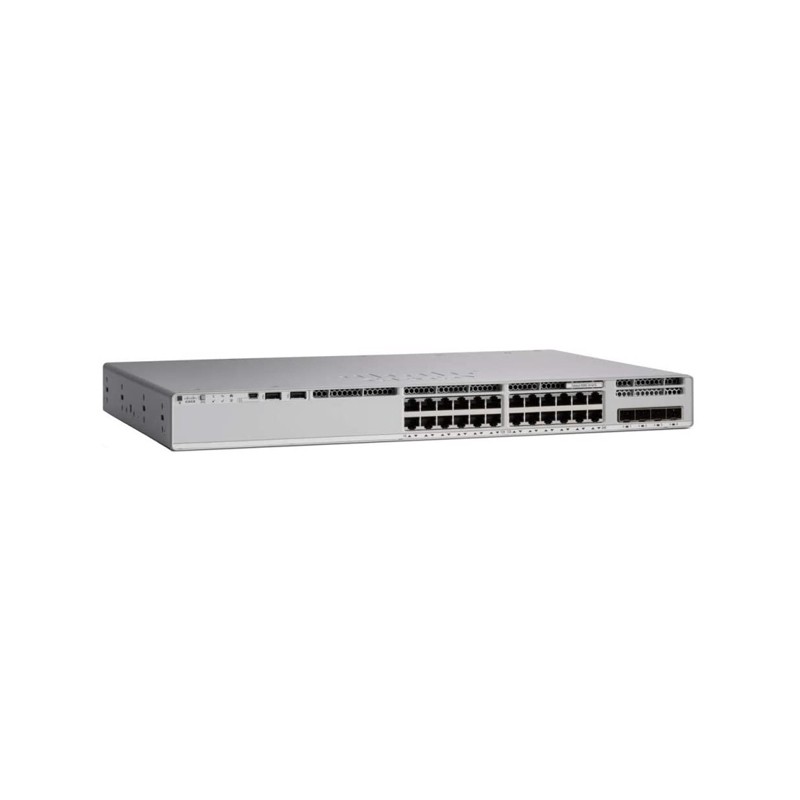

C9200-24T-E Cisco Catalyst 9200 24-port Data Switch Network Essentials
Model No.: C9200-24T-E
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9200-24T-E: Cisco Catalyst 9200 24-port Data Switch, Network Essentials
The Cisco C9200-24T-E is an enterprise-grade switch purpose-built for modern business networks, integrating advanced features, reliability, and flexible deployment capabilities. As part of the renowned Catalyst 9200 Series, this cisco switch brings outstanding scalability and efficiency to organizations seeking resilient LAN solutions. With its robust port configuration, the c9200-24t-e ensures seamless connectivity for all devices, supporting 24 × 10/100/1000BASE-T (RJ45) and 4 × SFP uplinks to accommodate high-volume traffic scenarios. The 9200 series is engineered for performance and network agility, with a switching capacity of 96 Gbps and a forwarding rate of 72 Mpps, making it suitable for dynamic environments that demand uninterrupted business operations. Management is intuitive through the Cisco IOS-XE CLI, a web interface, and SNMP, enabling centralized control for IT administrators. The c9200-24t-e stands out for its rich Layer 2/3 protocol support, including static routing, OSPF, and EIGRP, and flexible quality of service (QoS) mechanisms for optimized traffic prioritization. Its hardware offers hot-swappable modules, expandable VLANs (up to 4,096), and a 32,000 MAC address table to facilitate network segmentation and rapid growth. Built with international compliance certifications (UL, EN, FCC, and RoHS), Cisco ensures the C9200-24T-E meets global regulatory requirements for safety and efficiency. Additionally, its reliability is proven with a mean time between failures of nearly 67 years, ensuring long-term operational peace of mind for distributors, system integrators, and end-users worldwide. The 9200, c9200-24t-e, and cisco combination delivers powerful, secure infrastructure for growing campus and edge networks and provides a solid foundation for digital transformation across all sectors.
Specification
| C9200-24T-E Specification | |
| Model | C9200-24T-E |
| Brand | Cisco |
| Series | Catalyst 9200 Series |
| Form Factor | 1RU Fixed Switch |
| SKU Type | Essentials (E) |
| Port Configuration | 24 × 10/100/1000BASE-T (RJ45), 4 × 1G SFP Uplinks (C9200-NM-4X1G module included) |
| Switching Capacity | 96 Gbps |
| Forwarding Rate | 72 Mpps |
| Dimensions (H × W × D) | Base: 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm); With FEP/Fan: 1.73 × 17.5 × 15.4 in (4.4 × 44.5 × 39.1 cm) |
| Power Supply | 125W AC (PWR-C5-125WAC or PWR-C6-125WAC) |
| Input Voltage | 100–240V AC, 50/60Hz |
| PoE Support | Not supported (non-PoE model) |
| MAC Addresses | 32000 |
| VLANs | 4,096 active |
| IPv4 Routing | 16,000 routes |
| IPv6 Routing | 8,000 routes (software-assisted) |
| QoS | 8 queues per port, DSCP/CoS marking |
| Licensing | Essentials (pre-installed) |
| Minimum IOS-XE Version | 16.12.1 |
| Key Protocols | Static Routing, RIPv1/v2, OSPF, EIGRP (limited scale), Basic QoS and ACLs |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 5% to 90% non-condensing |
| Altitude | Up to 10,000 ft (3,000 m) |
| MTBF | 587,800 hours (~67 years) |
| Compliance | Safety: UL 60950-1, EN 60950-1; EMC: FCC Part 15 Class A, EN 55032 Class A; RoHS: Compliant |
