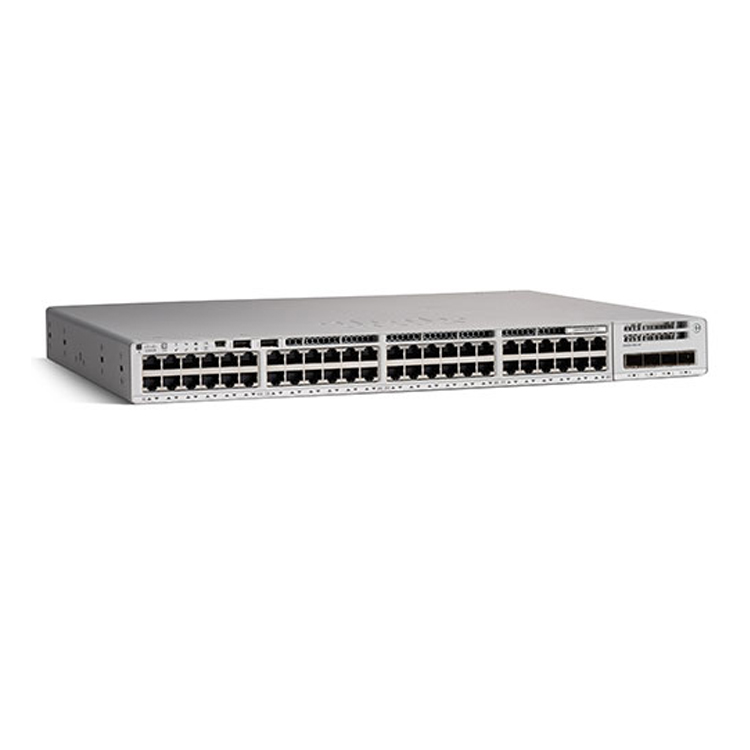

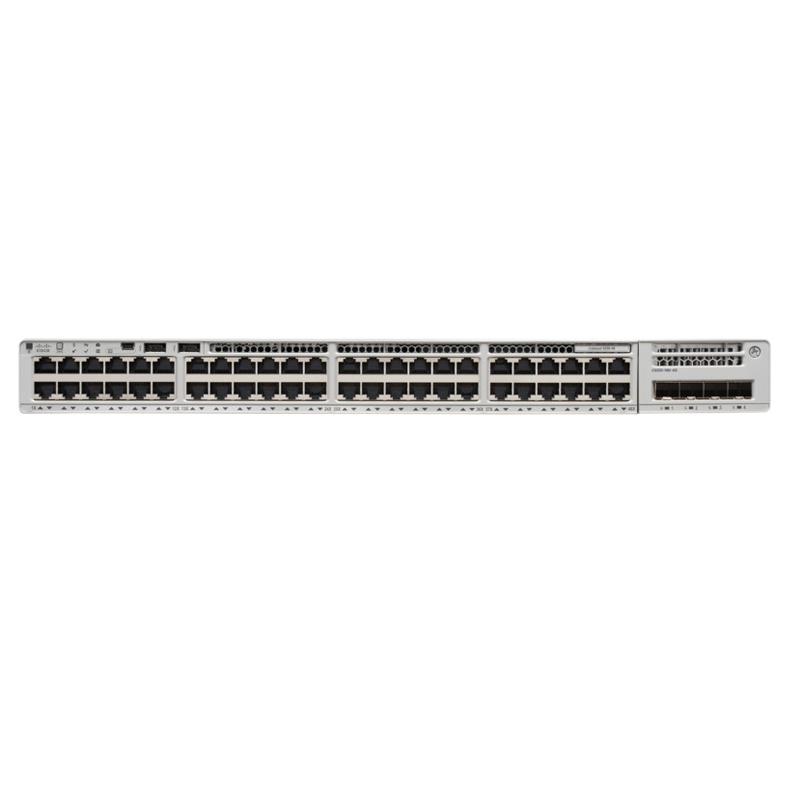

C9200-48T-E Cisco Catalyst 9200 48-port Data Switch, Network Essentials
Model No.: C9200-48T-E
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9200-48T-E: Cisco Catalyst 9200 48-port Data Switch, Network Essentials
The Cisco C9200-48T-E is an enterprise-class fixed configuration switch designed to deliver secure, scalable access for branch, campus, and midsize IT infrastructures. As part of the powerful Cisco Catalyst 9200 Series, the 9200 offers flexible 10/100/1000 connectivity across 48 RJ45 ports, making it ideal for modern enterprise network deployments. Cisco further augments the C9200-48T-E with advanced security, automation capabilities, and simplified management suitable for distributed organizations. The C9200-48T-E switch leverages Cisco's robust network operating system (IOS-XE 16.12.1 or later), optimally integrating with security and management protocols like SNMPv1/2c/3, SSH, and NETCONF/YANG. It boasts a 96 Gbps switching capacity and 72 Mpps forwarding rate for high-throughput network segments, outperforming legacy systems. Engineered for resilience, the 9200 employs hot-swappable fans and optional redundant power to ensure business continuity. Compliance with international standards ensures reliable operation across Asia, Europe, Africa, and North America. Targeted at value-driven distributors, small-to-midsize integrators, and end users seeking reliable network core or access layer options, this Cisco model addresses evolving connectivity and security challenges without compromising scalability. When you select the C9200-48T-E, you gain Cisco’s renowned enterprise-grade reliability and comprehensive support, making it an essential choice for organizations seeking robust, future-proof network infrastructure.
Specification
| C9200-48T-E Specification | |
| Model | C9200-48T-E |
| Brand | Cisco |
| Series | Catalyst 9200 Series |
| Product Type | Fixed Configuration Switch |
| License Level | Essentials (E) |
| Chassis Dimensions (H×W×D, Base Unit) | 1.73 × 17.5 × 13.8 in (4.4 × 44.5 × 35.0 cm) |
| Chassis Dimensions (With FEP/Fan) | 1.73 × 17.5 × 15.4 in (4.4 × 44.5 × 39.1 cm) |
| Fixed Ports | 48 × 10/100/1000BASE-T (RJ45) |
| Uplink Ports | 4 × 1G SFP (included with C9200-NM-4X1G module) |
| Uplink Options | Optional 4 × 1G SFP or 4 × 10G SFP+ via network modules |
| Switching Capacity | 96 Gbps |
| Forwarding Rate | 72 Mpps |
| Buffer Memory | 16 MB shared |
| MAC Address Table | 32,000 entries |
| VLAN Support | 4,096 active VLANs, 1,500 STP instances |
| Power Supply | 125W AC (PWR-C5-125WAC or PWR-C6-125WAC) |
| Input Voltage | 100–240V AC, 50/60Hz |
| MTBF | 571,440 hours (~65 years) |
| Redundancy | Hot-swappable fan tray, optional 1+1 power supply redundancy |
| Licensing | Essentials (pre-installed) |
| Minimum IOS-XE Version | 16.12.1 |
| Layer 3 Routing | Static, RIPv1/v2, OSPF, EIGRP, limited BGP support |
| Security | ACLs (32,000 hardware entries), 802.1X, DHCP snooping |
| Management Interfaces | 1 × RJ45 console (10/100), 1 × RJ45 management (10/100) |
| Management Protocols | SNMPv1/2c/3, SSHv1/v2, NETCONF/YANG |
| Compliance | Safety: UL 60950-1, EN 62368-1; EMC: FCC Part 15 Class A, EN 55032; RoHS compliant |
Related Products
| Cisco Catalyst 9200 Series Switches | |
| C9200-24T-A | C9200-48T-A |
| C9200-24T-E | C9200-48T-E |
| C9200-24P-A | C9200-48P-A |
| C9200-24P-E | C9200-48P-E |
| C9200L-24T-4G-A | C9200L-24T-4X-A |
| C9200L-24T-4G-E | C9200L-24T-4X-E |
| C9200L-24P-4G-A | C9200L-24P-4X-A |
| C9200L-24P-4G-E | C9200L-24P-4X-E |
| C9200L-48T-4G-A | C9200L-48T-4X-A |
| C9200L-48T-4G-E | C9200L-48T-4X-E |
| C9200L-48P-4G-A | C9200L-48P-4X-A |
| C9200L-48P-4G-E | C9200L-48P-4X-E |
| Cisco Catalyst 9200 Series Network Modules | |
| C9200-NM-2Y | C9200-NM-4G |
| C9200-NM-2Q | C9200-NM-4X |
| StackWise-80 and StackWise-160 Kit | |
| C9200-STACK-KIT | C9200L-STACK-KIT |
