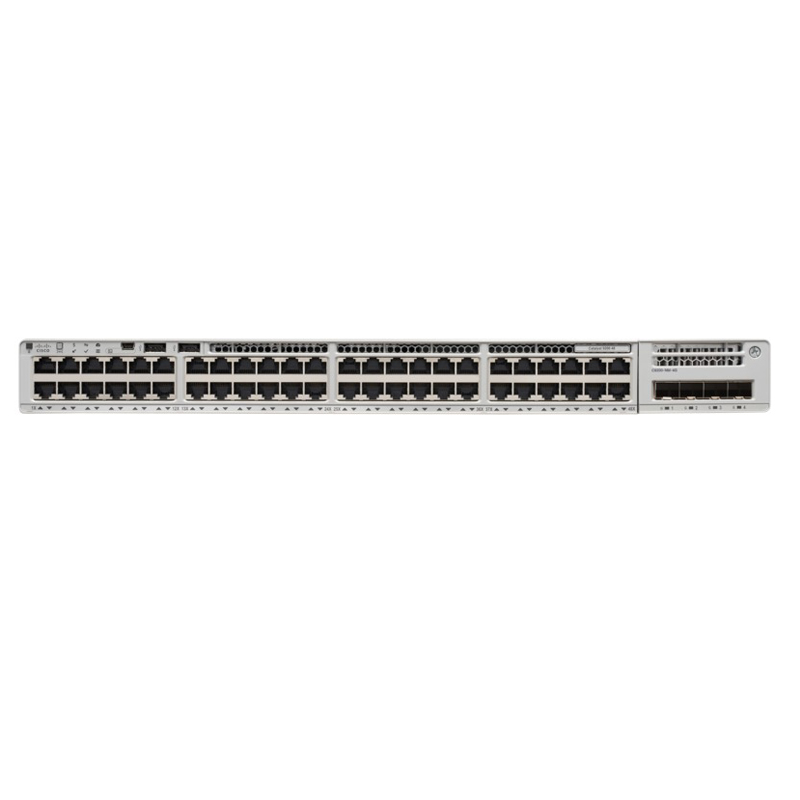

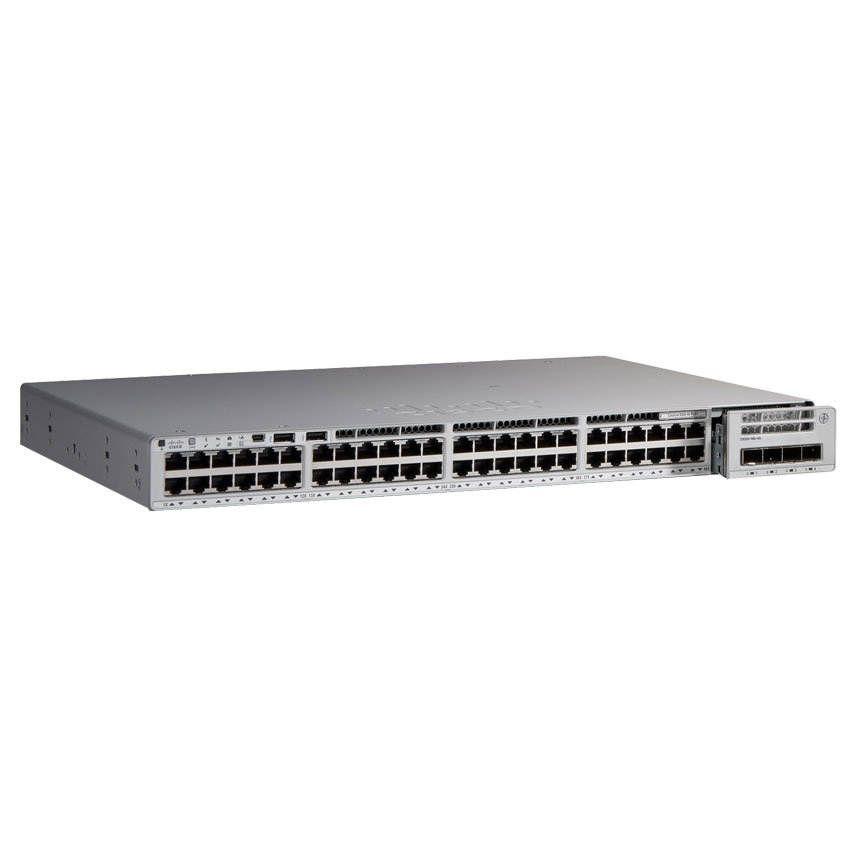

C9200-48P-A Cisco Catalyst 9200 48-port PoE+ Switch Network Advantage
Model No.: C9200-48P-A
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9200-48P-A: Cisco Catalyst 9200 48-port PoE+ Switch, Network Advantage
The Cisco C9200-48P-A is a robust enterprise-class switch that addresses the evolving needs of modern business networks. As part of the renowned 9200 series, this switch empowers organizations by providing secure, always-on connectivity, and intelligent network control. Featuring full PoE+ support across all 48 ports, the C9200-48P-A efficiently powers network devices directly, cutting cabling complexity and costs. The flexible modular uplink options of the c9200-48p-a make it easy to adapt network infrastructure as requirements change, delivering true scalability. Smart redundancy via FRU fans and advanced Cisco Network Advantage software ensure reliable operations and simplified management for both small business and complex enterprise networks. With a non-blocking switching capacity, high forwarding rate of up to 261.9 Mpps, and a mean time between failures set remarkably high, the C9200-48P-A ensures seamless data flow and minimal downtime. This Cisco switch integrates intelligent traffic management, supports extensive routing and MAC entries, and delivers high stacking bandwidth, streamlining deployment and network expansion. Optimized for a range of environments, from fast-growing Asian markets to established networks in North America or Europe, the C9200-48P-A meets the diverse and demanding needs of distributors, system integrators, and end users seeking reliable, scalable, and secure wired solutions. Whether upgrading campus backbones or powering IoT deployments, the C9200-48P-A demonstrates Cisco leadership in next-generation switching, safeguarding business continuity, and maximizing IT investments.
Specification
| C9200-48P-A Specification | |
| Model | C9200-48P-A |
| Brand | Cisco |
| Downlinks Total Ports | 48 ports full PoE+ |
| Uplink Configuration | Modular uplink options |
| Default Primary AC Power Supply | PWR-C6-1KWAC |
| Fans | FRU redundant |
| Software | Network Advantage |
| Chassis Dimensions | 1.73 x 17.5 x 13.8 in (4.4 x 44.5 x 35.0 cm) |
| Virtual Networks | 4 |
| Stacking Bandwidth | 160 Gbps |
| Total Number of MAC Addresses | 32000 |
| Total Number of IPv4 Routes | 14,000 (10,000 direct routes and 4,000 indirect routes) |
| IPv4 Routing Entries | 4000 |
| IPv6 Routing Entries | 2000 |
| Multicast Routing Scale | 1000 |
| QoS Scale Entries | 1000 |
| ACL Scale Entries | 1600 |
| Packet Buffer Per SKU | 6 MB buffers for 24- or 48-port Gigabit Ethernet models |
| Flexible NetFlow (FNF) Entries | 16,000 flows on 24- and 48-port Gigabit Ethernet models |
| DRAM | 4 GB |
| Flash | 4 GB |
| VLAN IDs | 4096 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo Frames | 9198 bytes |
| Wireless Bandwidth Per Switch | Up to 48 Gbps on 24-port and 48-port Gigabit Ethernet model |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 261.9 Mpps |
