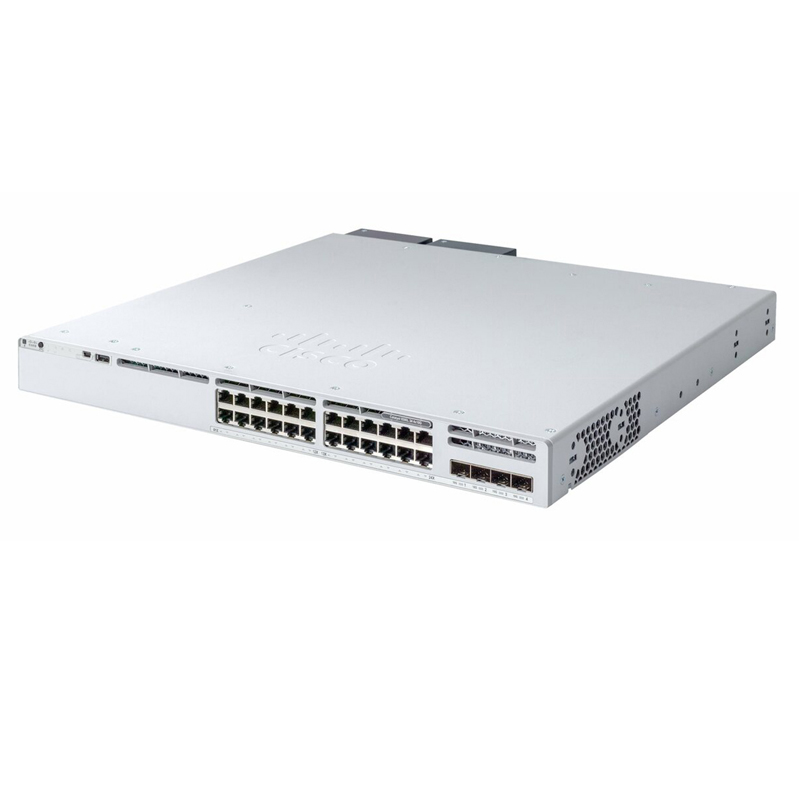

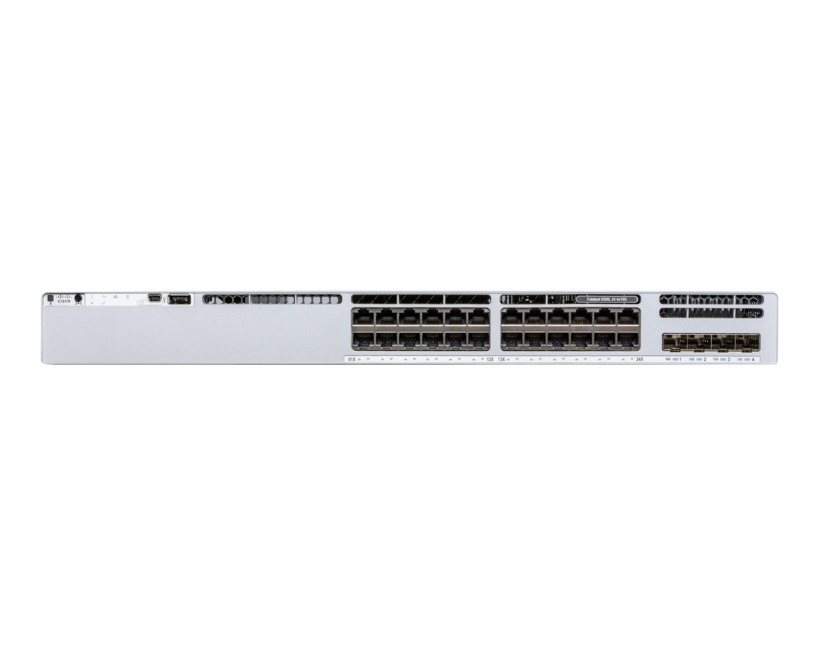

C9300L-24T-4X-A Cisco Catalyst 9300 24-port fixed uplinks data only 4x10G uplinks Switch Network Advantage

Key Attributes:

Model No.: C9300L-24T-4X-A
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable

Product Details

* 100% Original New *   C9300L-24T-4X-A:  Cisco Catalyst 9300 24-port fixed uplinks data only 4x10G uplinks Switch, Network Advantage



The Cisco C9300L-24T-4X-A is an enterprise-class Layer 3 access switch, expertly designed for high availability, scalability, and security in modern IT environments. As part of the Cisco 9300L family, this model excels with advanced network management capabilities, making it a prime choice for organizations requiring robust, future-ready infrastructure. Leveraging the enhanced 9300l architecture, it ensures optimized data traffic, superior stacking options, and flexible deployment suitable for both core and edge segments. The C9300L-24T-4X-A offers a compelling upgrade path for Catalyst 3850 users, supporting Cisco's Network Advantage and Network Essentials IOS for consistent policy and visibility. With an MTBF of 387,700 hours, it outpaces standard reliability benchmarks, catering to markets across Asia, Europe, Africa, and North America. The c9300l-24t-4x-a switch provides secure yet agile network performance demanded by distributors, SMB integrators, and end customers alike, integrating seamlessly into enterprise and campus environments. Cisco's integrated StackWise-320 technology maximizes scalability and resilience, ensuring smooth expansion as network demands grow. Featuring 24 Gigabit Ethernet ports and 4 SFP+ uplinks, this switch delivers a blend of speed and versatility, making it a go-to solution for organizations expanding or modernizing their digital landscape. Unlocking the power of cisco innovation, the C9300L-24T-4X-A empowers IT teams to implement resilient, high-speed, and scalable switching solutions, responding to the evolving connectivity needs highlighted by the keywords 9300l, c9300l-24t-4x-a, and cisco.





Specification




C9300L-24T-4X-A Specification
Model C9300L-24T-4X-A
Brand Cisco
Dimensions (H x W x D) inches 1.73 x 17.5 x 16.1 in
Mean Time Between Failures – MTBF (hours) 387,700 hours
Designed to replace Catalyst 3850
Supported IOS Network Advantage, Network Essentials
Network modules options Fixed Modules
Stack Technology StackWise-320
Stacking bandwidth 320 Gbps
Total number of MAC addresses 32000
Total number of IPv4 routes (ARP plus learned routes) 32,000 (24,000 direct routes and 8,000 indirect routes)
IPv6 routing entries 16000
Multicast routing scale 8000
QoS scale entries 5120
DRAM 8 GB
Flash 16 GB
VLAN IDs 4094
Total Switched Virtual Interfaces (SVIs) 1000
Jumbo frames 9,198 bytes
Switching capacity 56 Gbps - 176 Gbps
Forwarding rate 41.66 Mpps - 130.95 Mpps







Related Products




Cisco Catalyst 9300 Series Switches
C9300-24T-E  C9300-48T-E   C9300-24UX-E
C9300-24T-A  C9300-48T-A   C9300-24UB-A
C9300-24P-E   C9300-48P-E   C9300-24UX-E
C9300-24P-A   C9300-48P-A   C9300-24UX-A
C9300-24U-E   C9300-48U-E   C9300-24UXB-E
C9300-24U-A   C9300-48U-A   C9300-24UXB-A
C9300-24S-E   C9300-48S-E   C9300-48UXM-E
C9300-24S-A   C9300-48S-A   C9300-48UXM-A
C9300L-24T-4G-E   C9300L-24T-4X-E   C9300-48UN-E
C9300L-24T-4G-A   C9300L-24T-4X-A   C9300-48UN-A
C9300L-24P-4G-E   C9300L-24P-4X-E   C9300-48UB-E
C9300L-24P-4G-A   C9300L-24P-4X-A   C9300-48UB-A
C9300L-48T-4G-E   C9300L-48T-4X-E   C9300X-12Y-E
C9300L-48T-4G-A   C9300L-48T-4X-A   C9300X-12Y-A
C9300L-48P-4G-E   C9300L-48P-4X-E   C9300X-24Y-E
C9300L-48P-4G-A   C9300L-48P-4X-A   C9300X-24Y-A
C9300X-12Y-E C9300X-24HX-E C9300X-48TX-E
C9300X-12Y-A C9300X-24HX-A C9300X-48TX-A
C9300X-12Y-M C9300X-24HX-M C9300X-48TX-M
C9300X-24Y-E C9300X-48HX-E C9300X-48HXN-E
C9300X-24Y-A C9300X-48HX-A C9300X-48HXN-A
C9300X-24Y-M C9300X-48HX-M C9300X-48HXN-M

Cisco Catalyst 9300 Series Switch Network Modules
C9300-NM-8X   C9300-NM-4G   C9300-NM-2Q
C9300-NM-2Y   C9300-NM-4M

StackWise-320 Accessories
C9300L-STACK-KIT







FAQ




Q: Is your product original?
A: Yes, our product is original, we only sells original product.



Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.



Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.



Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.



Q: If the product has quality problem, how to solve it?
A:  If there is quality problem during warranty, you can ship back to get replacement or refund.



Q:  How to ship the product to me?
A:  We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
