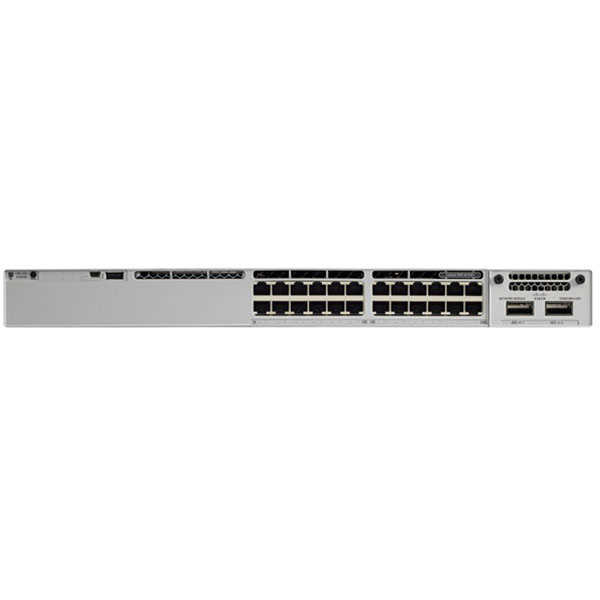

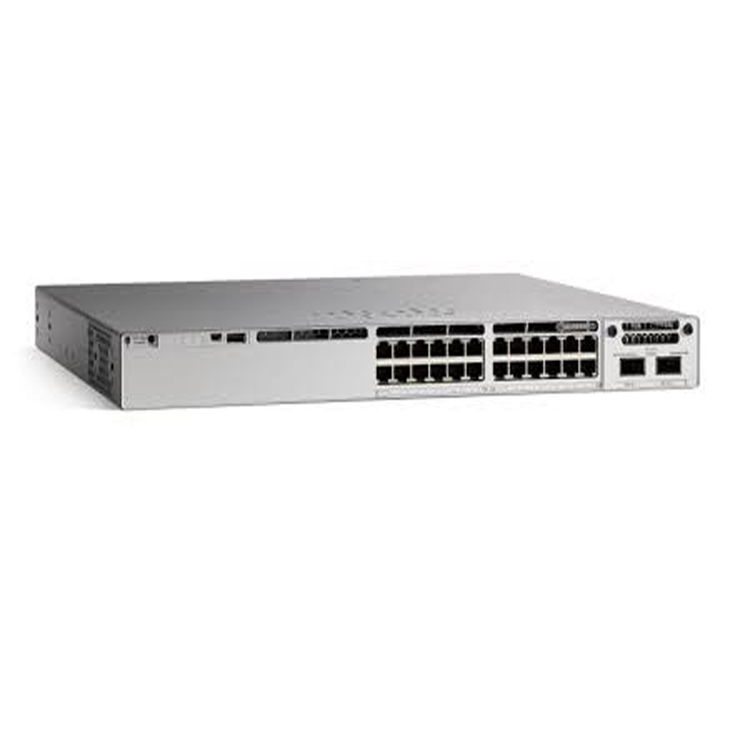

C9300L-24T-4G-E Cisco Catalyst 9300 24-port fixed uplinks data only 4x1G uplinks Switch Network Essentials
Model No.: C9300L-24T-4G-E
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9300L-24T-4G-E: Cisco Catalyst 9300 24-port fixed uplinks data only 4x1G uplinks Switch, Network Essentials
Cisco's C9300L-24T-4G-E is a high-performance enterprise switch built for evolving business networks. As part of the Cisco Catalyst family, it delivers next-generation stackable switching for organizations requiring scalability, reliability, and efficiency at the access or aggregation layer. With the ability to support up to 32,000 MAC addresses and 32,000 IPv4 routes, this switch is designed to accommodate growing demands in dynamic network environments. Its advanced StackWise-320 technology enables seamless stackable deployments, providing centralized management and increased fault tolerance. Fully compatible with Network Essentials and Network Advantage IOS software, the C9300L-24T-4G-E empowers enterprises with robust security, effortless network segmentation, and automation at scale. The switch features four integrated 1G uplinks, ensuring flexible connectivity to core infrastructure or distribution points. The generous 16 MB packet buffer and support for up to 1,000 SVIs enable smooth data transfers across complex VLAN architectures. With a high MTBF of 395,800 hours and a switching capacity ranging from 56 Gbps to 176 Gbps, businesses across industries can depend on consistent operation and optimal performance. Whether deployed by distributors, small system integrators, or end customers throughout Asia, Europe, Africa, or North America, the C9300L-24T-4G-E stands out as a future-ready network foundation. As enterprise connectivity demands surge, network professionals value the flexibility and reliability that Cisco Catalyst switches deliver, especially in deployments that require stackable switching, rich feature sets through Network Essentials, and high-speed 1G uplinks for seamless cloud and campus access.
Specification
| C9300L-24T-4G-E Specification | |
| Model | C9300L-24T-4G-E |
| Brand | Cisco |
| Dimensions (H x W x D) inches | 1.73 X 17.5 X 16.1 |
| MTBF (hours) | 395800 |
| Designed to replace | Catalyst 3850 |
| Supported IOS | Network Advantage, Network Essentials |
| Network modules options | Fixed Modules |
| Stack Technology | StackWise-320 |
| Stacking bandwidth | 320 Gbps |
| Total number of MAC addresses | 32000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8,000 indirect routes) |
| IPv6 routing entries | 16000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9,198 bytes |
| Switching capacity | 56 Gbps - 176 Gbps |
| Forwarding rate | 41.66 Mpps - 130.95 Mpps |
Related Products
| Cisco Catalyst 9300 Series Switches | ||
| C9300-24T-E | C9300-48T-E | C9300-24UX-E |
| C9300-24T-A | C9300-48T-A | C9300-24UB-A |
| C9300-24P-E | C9300-48P-E | C9300-24UX-E |
| C9300-24P-A | C9300-48P-A | C9300-24UX-A |
| C9300-24U-E | C9300-48U-E | C9300-24UXB-E |
| C9300-24U-A | C9300-48U-A | C9300-24UXB-A |
| C9300-24S-E | C9300-48S-E | C9300-48UXM-E |
| C9300-24S-A | C9300-48S-A | C9300-48UXM-A |
| C9300L-24T-4G-E | C9300L-24T-4X-E | C9300-48UN-E |
| C9300L-24T-4G-A | C9300L-24T-4X-A | C9300-48UN-A |
| C9300L-24P-4G-E | C9300L-24P-4X-E | C9300-48UB-E |
| C9300L-24P-4G-A | C9300L-24P-4X-A | C9300-48UB-A |
| C9300L-48T-4G-E | C9300L-48T-4X-E | C9300X-12Y-E |
| C9300L-48T-4G-A | C9300L-48T-4X-A | C9300X-12Y-A |
| C9300L-48P-4G-E | C9300L-48P-4X-E | C9300X-24Y-E |
| C9300L-48P-4G-A | C9300L-48P-4X-A | C9300X-24Y-A |
| C9300X-12Y-E | C9300X-24HX-E | C9300X-48TX-E |
| C9300X-12Y-A | C9300X-24HX-A | C9300X-48TX-A |
| C9300X-12Y-M | C9300X-24HX-M | C9300X-48TX-M |
| C9300X-24Y-E | C9300X-48HX-E | C9300X-48HXN-E |
| C9300X-24Y-A | C9300X-48HX-A | C9300X-48HXN-A |
| C9300X-24Y-M | C9300X-48HX-M | C9300X-48HXN-M |
| Cisco Catalyst 9300 Series Switch Network Modules | ||
| C9300-NM-8X | C9300-NM-4G | C9300-NM-2Q |
| C9300-NM-2Y | C9300-NM-4M | |
| StackWise-320 Accessories | ||
| C9300L-STACK-KIT | ||
FAQ
Q: Is your product original?
A: Yes, our product is original, we only sells original product.
Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.
Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.
Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.
Q: If the product has quality problem, how to solve it?
A: If there is quality problem during warranty, you can ship back to get replacement or refund.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
