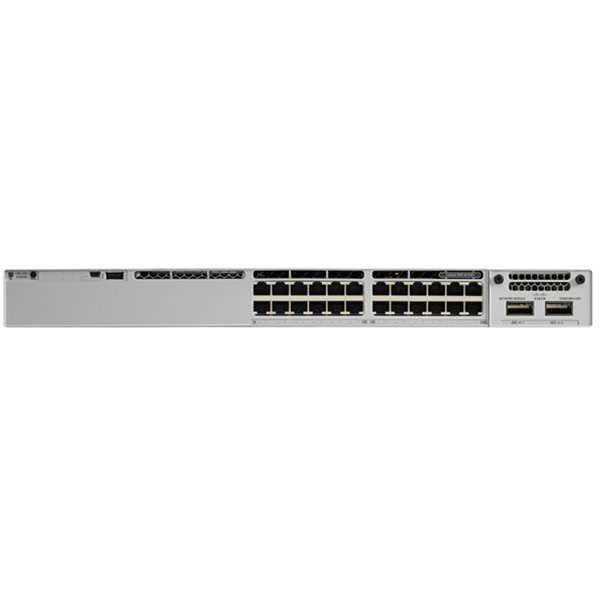

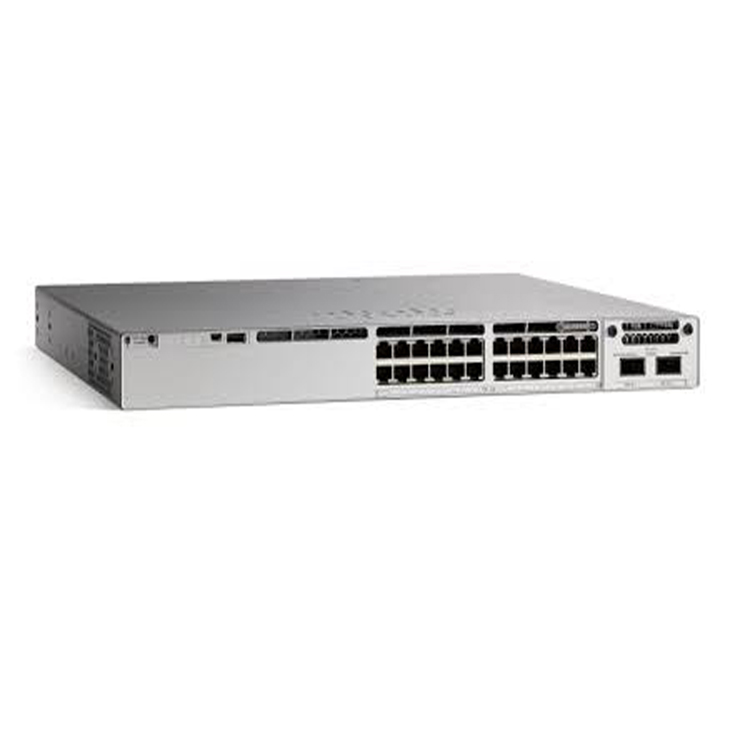

C9300L-24T-4G-A Cisco Catalyst 9300 24-port fixed uplinks data only 4x1G uplinks Switch Network Advantage
Model No.: C9300L-24T-4G-A
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9300L-24T-4G-A: Cisco Catalyst 9300 24-port fixed uplinks data only 4x1G uplinks Switch, Network Advantage
The Cisco C9300L-24T-4G-A is an enterprise-class switch engineered for versatile and scalable campus and branch network deployments. Designed as the next-generation replacement for the widely adopted Catalyst 3850, this enterprise switch delivers robust Layer 2/Layer 3 capabilities and enables organizations to manage high-performance, distributed connectivity. Its StackWise-320 technology and a stacking bandwidth of 320 Gbps optimize high-speed mobility and failover, making it an ideal core or aggregation switch. Cloud integration is seamless via advanced software like Network Advantage and Network Essentials, supporting a wide range of cloud-ready protocols while simplifying network operations. Comprehensive IoT security capabilities safeguard network integrity, enabling responsive threat detection and micro-segmentation for diverse device types. With a substantial MAC table of 32,000 addresses, up to 32,000 IPv4 and 16,000 IPv6 routes, and powerful QoS and access control lists, the C9300L-24T-4G-A can handle dynamic enterprise environments. Jumbo Frame support and deep packet buffers further empower cloud applications and mobility, ensuring business continuity and a superior end-user experience. This makes it the switch of choice for distributors, SMB integrators, and end users looking for performance, security, and agility as their networks scale.
Specification
| C9300L-24T-4G-A Specification | |
| Model | C9300L-24T-4G-A |
| Brand | Cisco |
| Designed to Replace | Catalyst 3850 |
| Supported IOS | Network Advantage, Network Essentials |
| Network Modules Options | Fixed Modules |
| Stack Technology | StackWise-320 |
| Stacking Bandwidth | 320 Gbps |
| Total Number of MAC Addresses | 32000 |
| Total Number of IPv4 Routes | 32,000 (24,000 Direct Routes and 8,000 Indirect Routes) |
| IPv6 Routing Entries | 16000 |
| Multicast Routing Scale | 8000 |
| QoS Scale Entries | 5120 |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo Frames | 9,198 Bytes |
| Switching Capacity | 56 Gbps - 176 Gbps |
| Forwarding Rate | 41.66 Mpps - 130.95 Mpps |
