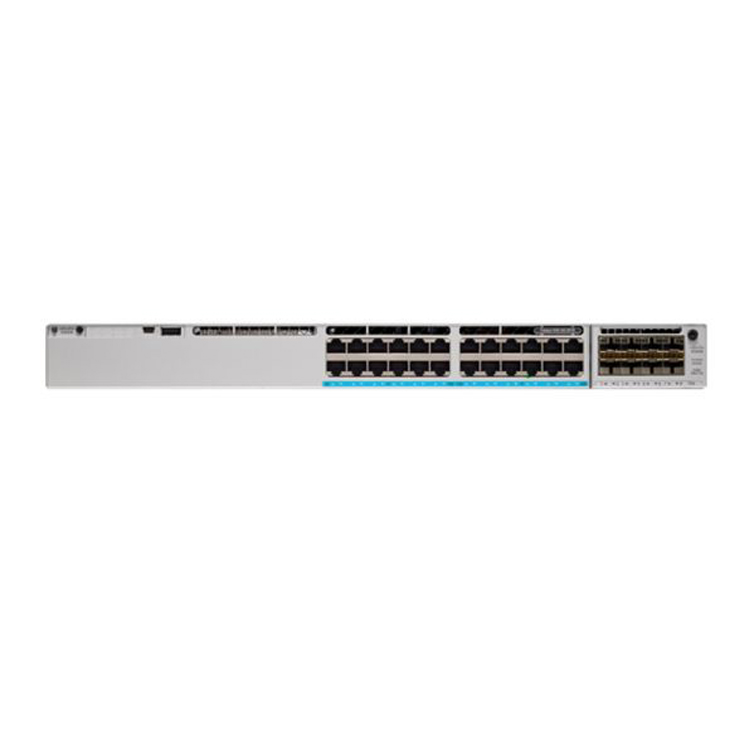

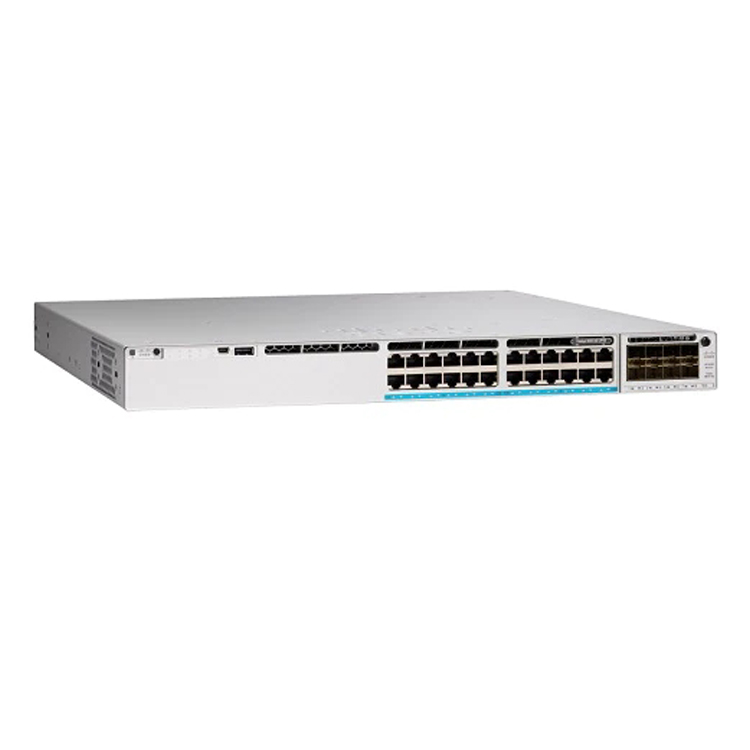

C9300-24U-E Cisco Catalyst 9300 24-port modular uplinks UPOE Switch, Network Essentials
Model No.: C9300-24U-E
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9300-24U-E: Cisco Catalyst 9300 24-port modular uplinks UPOE Switch, Network Essentials
The Cisco C9300-24U-E is an enterprise-class switch engineered for next-generation access and high availability. Featuring robust Cisco hardware and software, the Catalyst 9300 Series enables outstanding scalability and is a model of choice for businesses across Asia, Europe, Africa, and North America needing advanced switch infrastructure. As a flagship of the Cisco 9300 family, the C9300-24U-E stands out with 24 full UPOE ports, making it ideal for organizations investing in smart workspaces, IoT, or dense PoE deployments. It delivers a total available PoE power of 830W, empowering high-performance access points and security devices without additional wiring. The C9300-24U-E achieves a non-blocking switching capacity of 208 Gbps, matching bandwidth demands for today’s data-driven applications and supporting rapid, secure business operations. As with all Cisco 9300 switches, the C9300-24U-E integrates Cisco's StackWise-480 technology, providing up to 480 Gbps stacking interconnect and seamless redundancy to maximize uptime. The C9300-24U-E is a cornerstone for network convergence, security, and robust management, translating Cisco innovation into simplified deployment and efficiency for distribution partners, small-medium system integrators, and end users who expect resilient, modern networking aligned with digital transformation priorities.
Specification
| C9300-24U-E Specification | |
| Model | C9300-24U-E |
| Brand | Cisco |
| Product Description | Catalyst 9300 24-port UPOE, Network Essentials |
| Total 10/100/1000 or Multigigabit Copper Ports | 24 Cisco UPOE |
| Default AC Power Supply | 1100W AC |
| Available PoE Power | 830W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default Power Supply | PWR-C1-1100WAC |
| Switching Capacity | 208 Gbps on 24-port Gigabit Ethernet model |
| Stacking Bandwidth | 480 Gbps |
| Total Number of MAC Addresses | 32000 |
| Total Number of IPv4 Routes | 32,000 (24,000 direct routes and 8,000 indirect routes) |
| IPv6 Routing Entries | 16000 |
| Multicast Routing Scale | 8000 |
| QoS Scale Entries | 5120 |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Forwarding Rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 in |
| Safety Certifications | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
