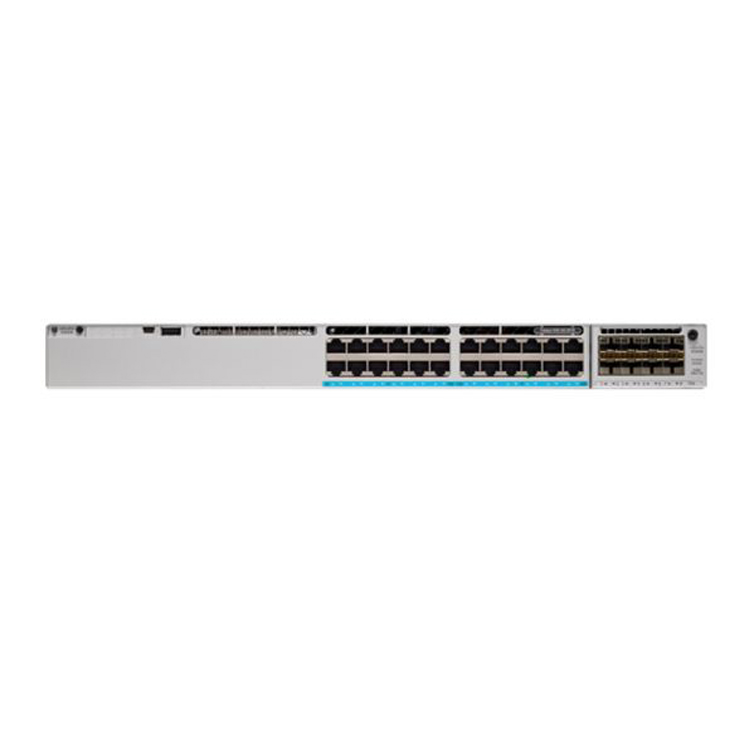

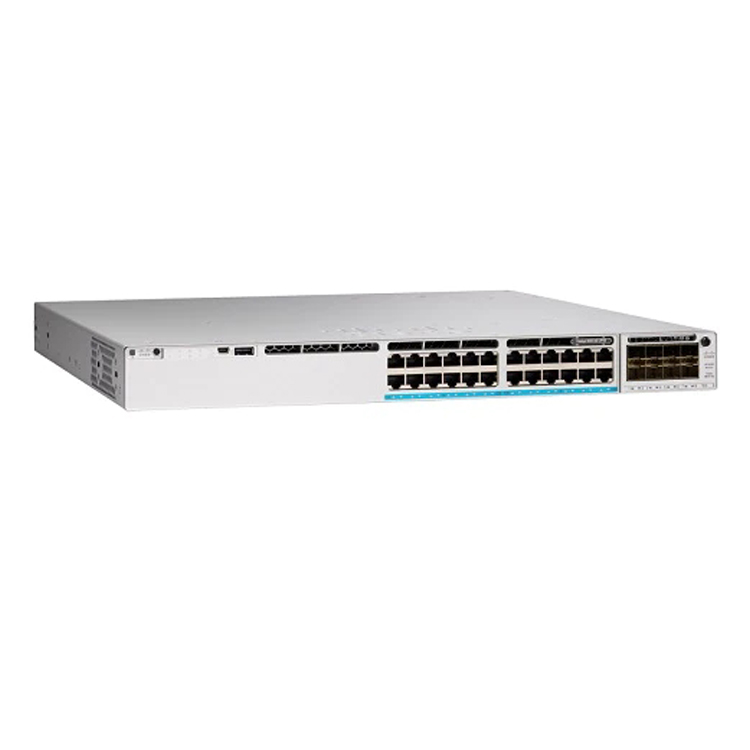

C9300-24U-A Cisco Catalyst 9300 24-port modular uplinks UPOE Switch, Network Advantage
Model No.: C9300-24U-A
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9300-24U-A: Cisco Catalyst 9300 24-port modular uplinks UPOE Switch, Network Advantage
Cisco’s C9300-24U-A is an enterprise-class switch purpose-built for scalable, intelligent enterprise networks. This advanced Cisco switch combines robust cloud platform integration with a highly programmable architecture, enabling seamless adaptation to changing business needs and network expansion. For network managers and integrators across Asia, Europe, Africa, and North America, the C9300-24U-A delivers secure, policy-based management, efficient operation, and high performance. Its 24-port UPOE design supports both standard and high-power PoE devices, making it ideal for powering enterprise endpoints such as access points, phones, and IoT devices. The enterprise networks benefit from extensive Layer 2/3 support and flexible stacking and StackPower technologies for optimized uptime and simplified scaling. Cloud platform readiness integrates with Cisco’s software-defined networking tools, supporting streamlined deployments in cloud-centric environments. The programmable architecture empowers administrators to adopt API-driven automation and policy-based provisioning for rapid rollouts and simplified lifecycle management. Distributed enterprises and integrators enjoy seamless support for thousands of VLANs and virtual interfaces, comprehensive multicast and routing capabilities, and advanced security. The C9300-24U-A sustains high-density, mission-critical operations, backed by robust hardware—8 GB DRAM, 16 GB Flash, 208 Gbps switching capacity, and 830W PoE power—and compliance with global safety and environmental standards. Whether for large campus, multi-site deployments, or digital transformation initiatives requiring superior availability, the C9300-24U-A forms a reliable, agile core for modern network infrastructures.
Specification
| C9300-24U-A Specification | |
| Model | C9300-24U-A |
| Brand | Cisco |
| Product Description | Catalyst 9300 24-port UPOE, Network Advantage |
| Total 10/100/1000 or Multigigabit copper ports | 24 Cisco UPOE |
| Default AC power supply | 1100W AC |
| Available PoE power | 830W |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-1100WAC-P/2 |
| Switching capacity | 208 Gbps on 24-port Gigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32000 |
| Total number of IPv4/IPv6 routes | 32,000 (IPv4), 16,000 (IPv6) |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 in |
| Weight | 16.33 pounds (7.4 kg) |
| Safety certifications | UL 60950-1, CAN/CSA-C222.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950.1, IEEE 802.3 |
