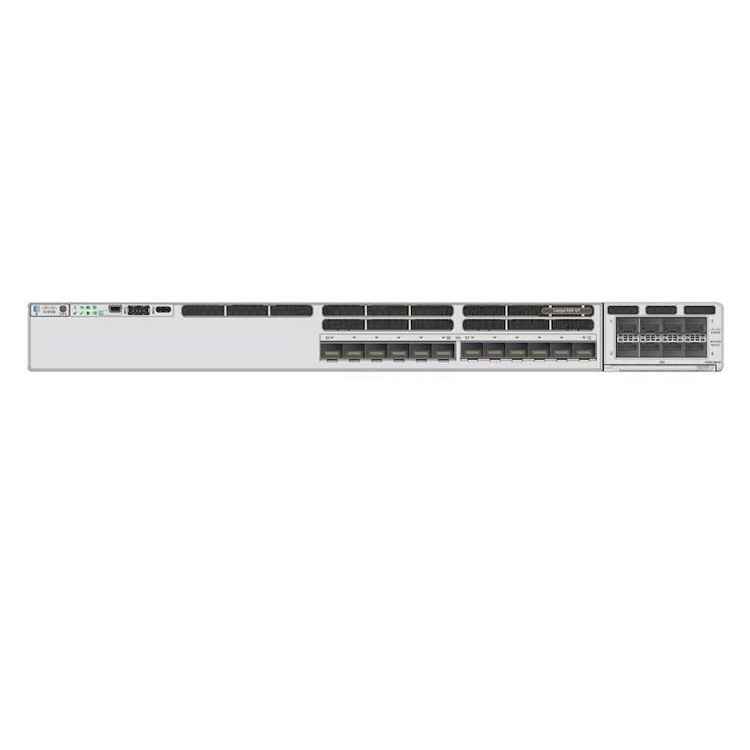

C9300X-12Y-A Cisco Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks Switch, Network Advantage
Model No.: C9300X-12Y-A
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9300X-12Y-A: Cisco Catalyst 9300 12-port 25G/10G/1G SFP28 with modular uplinks Switch, Network Advantage
The C9300X-12Y-A is a Catalyst 9300 switch model by Cisco. This model comes with 12 ports of 25G/10G/1G SFP28 and modular uplinks. It is part of the Cisco Catalyst 9300 Series, which provides flexible deployment options, including small to medium-sized businesses, enterprise branches, and campuses. The switch includes advanced security features and is powered by Cisco's IOS XE software.
Specification
| C9300X-12Y-A Specification | |
| Model | C9300X-12Y-A |
| Brand | Cisco |
| Device Type | Switch - 12 ports - L3 - managed - stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | 25 Gigabit Ethernet |
| Ports | 12 x 1/10/25 Gigabit SFP28 |
| Performance | Switching capacity: 1000 Gbps Switching capacity with stacking: 2000 Gbps Forwarding rate: 744.04 Mpps Forwarding rate with stacking: 1488 Mpps |
| Capacity | IPv4 routing table entries: 39000 Flexible NetFlow entries: 64000 Direct IPv4 routes: 24000 Indirect IPv4 routes: 15000 IPv6 routing table entries: 19500 VLAN IDs: 4094 Switched virtual interfaces (SVIs): 1000 Multicast routing flow table: 8000 QoS scale entries: 4000 ACL scale entries: 5000 PVST instances: 300 STP Virtual Ports for PVST: 13000 STP Virtual Ports for MST: 13000 Routed ports: 448 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
| RAM | 16 GB |
| Flash Memory | 16 GB |
| Interfaces | 24 x 1/10/25GBase-X SFP28 |
| Power Device | Internal power supply |
| Power Provided | 715 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Dimensions | 17.5 x 16.1 x 1.73 in |
