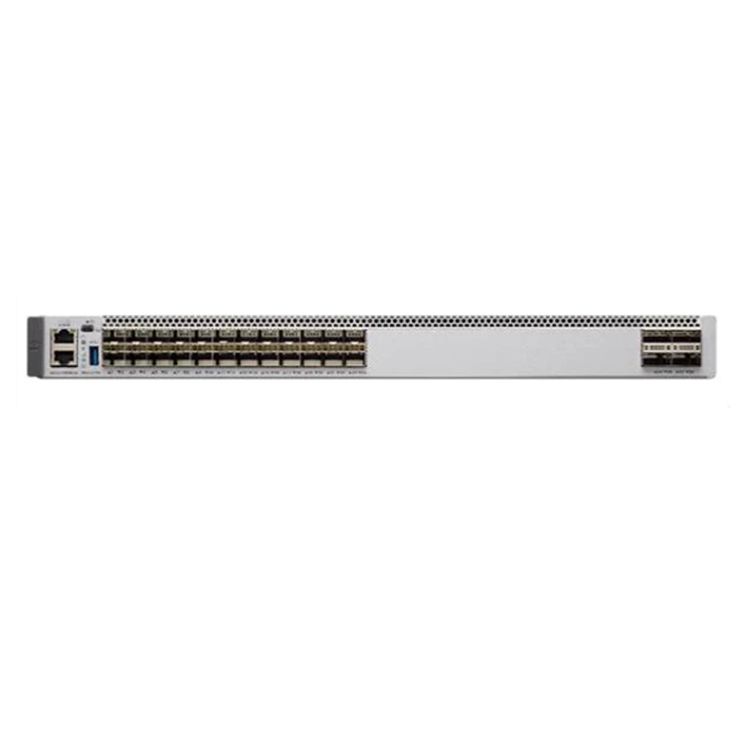

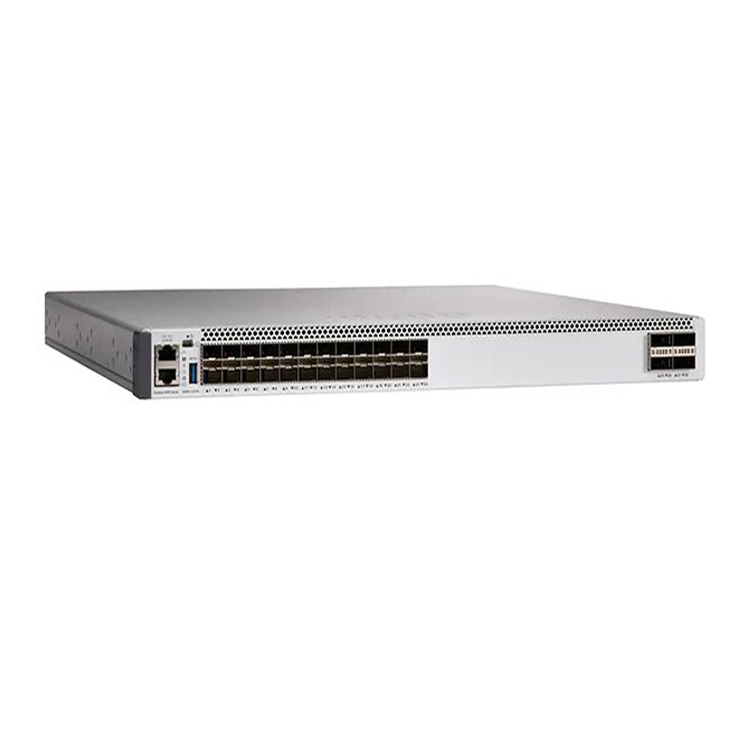

C9500-24Y4C-A Cisco Catalyst 9500 Series High Performance 24-port 1/10/25G Switch, Network Advantage
Model No.: C9500-24Y4C-A
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9500-24Y4C-A: Cisco Catalyst 9500 Series High Performance 24-port 1/10/25G Switch, Network Advantage License
The Cisco C9500-24Y4C-A is a flagship enterprise-class switch designed to empower agile, high-density networking environments. Built upon the advanced Cisco 9500 platform, the C9500-24Y4C-A delivers top-tier scalability and performance for demanding core and aggregation scenarios. With up to 2.0 Tbps switching capacity, it addresses bandwidth challenges faced by modern businesses and critical data centers. The C9500-24Y4C-A comes equipped with a robust forwarding rate of up to 1 Bpps, optimized for seamless data flow and reduced latency across large networks. Cisco’s engineering ensures the switch supports an expansive routing table and high entry counts for access lists, making it suitable for complex security and policy deployments. Enterprise networks benefit from advanced security features, flexibility through virtual interfaces, and resilient operation even at high altitudes and temperatures. With 16 GB DRAM and flash memory, the 9500 series guarantees rapid configuration and responsiveness, ideal for applications in Asia, Europe, Africa, and North America. The Cisco C9500-24Y4C-A stands out with a comprehensive feature set, robust reliability, and future-proof scalability to meet growing enterprise demands—from distributors managing large-scale deployments, to system integrators tailoring solutions, and end-users seeking mission-critical uptime and efficiency.
Specification
| C9500-24Y4C-A Specification | |
| Model | C9500-24Y4C-A |
| Brand | Cisco |
| Switching Capacity | Up to 2.0 Tbps |
| Forwarding Rate | Up to 1 Bpps |
| Total Number of MAC Addresses | Up to 82,000 |
| Total Number of IPv4 Routes | Up to 212,000 indirect + direct, Up to 90,000 host/ARP |
| Total Number of IPv6 Routes | Up to 212,000 indirect + direct, Up to 90,000 host |
| QoS ACL Scale | Up to 16,000 |
| Security ACL Scale | Up to 27,000 |
| FNF Entries | Up to 98,000 |
| DRAM | 16 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 4000 |
| Jumbo Frame | 9,216 bytes |
| Power Supply Selection | C9K-PWR-650WAC-R or C9K-PWR-930WDC-R |
| Dimensions (H x W x D) | 1.73 x 17.5 x 18.0 in |
| Rack Units (RU) | 1 RU |
| Input Voltage | 90 to 264 VAC |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 149°F (-20° to 65°C) |
| Altitude | Operation up to 13,000 feet at 40°C |
| MTBF (Hours) | 336780 |
