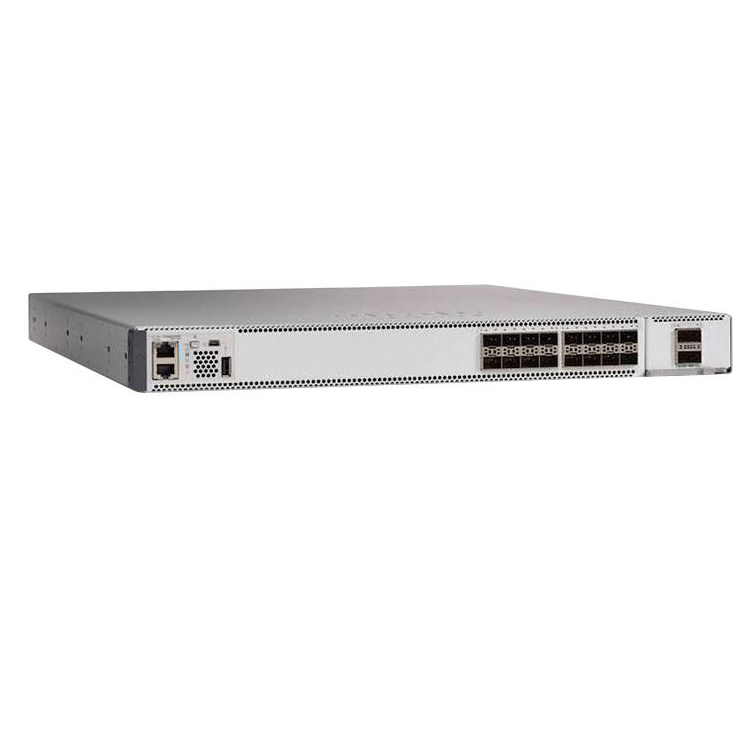

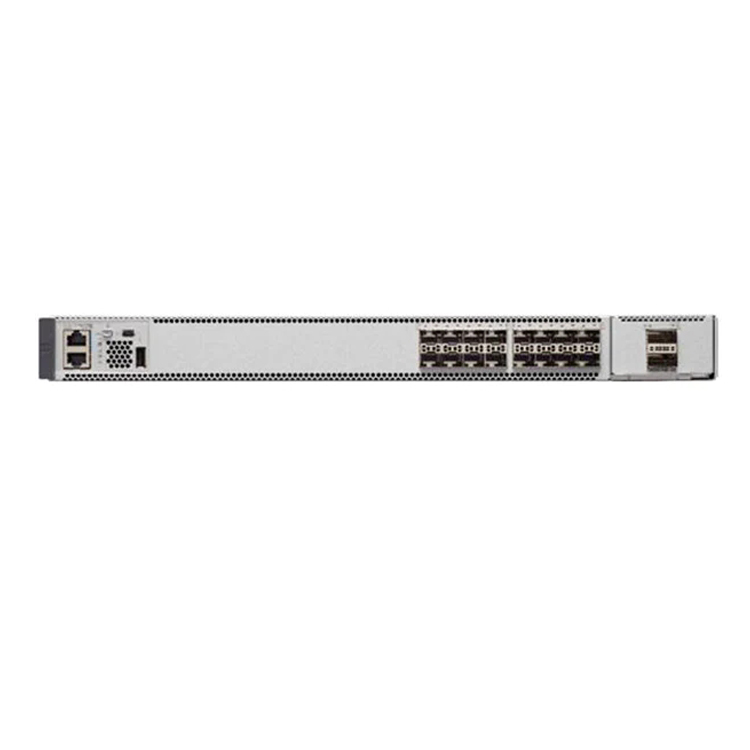

C9500-16X-A Cisco Catalyst 9500 16-port 10G Switch, Network Advantage

Key Attributes:

Model No.: C9500-16X-A
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable

Product Details

* 100% Original New * C9500-16X-A: Cisco Catalyst 9500 16-port 10G Switch, Network Advantage License

The Cisco C9500-16X-A is a high-performance enterprise-class switch in the 9000 series, engineered to deliver non-stop networking for next-generation business-critical applications. Built on Cisco’s advanced networking architecture, this c9500-16x-a switch provides unprecedented agility and efficiency for dynamic enterprise environments. With a switching capacity up to 480 Gbps, and advanced hardware providing up to 360 Mpps forwarding rate, the 9000 series is ideal for organizations demanding reliable and scalable network infrastructure. The cisco DNA-ready features of the C9500-16X-A empower distributed teams, remote offices, and digital enterprises with robust security, quality of service, and flexible management, making it suitable for integration in midsize to large networks across global markets. Its compact 1 RU footprint and high MAC/route scalability ensure seamless deployment in modern data centers and enterprise cores, while its support for up to 4,000 VLAN IDs/SVIs addresses even the most complex segmentation needs. The advanced QoS, extensive ACL scaling, and operational endurance in diverse climates make the C9500-16X-A a future-ready switch for distributors, system integrators, and end-users in Asia, Europe, Africa, and North America.

Specification

C9500-16X-A Specification
Model	C9500-16X-A
Brand	Cisco
Switching capacity	Up to 480 Gbps
Forwarding rate	Up to 360 Mpps
Total number of MAC addresses	Up to 64,000
Total IPv4 routes (ARP + learned)	Up to 64,000 indirect, up to 80,000 host
Total IPv6 routes	Up to 32,000 indirect, up to 40,000 host
QoS ACL scale	Up to 18,000
Security ACL scale	Up to 18,000
FNF entries	Up to 512,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	Up to 4,000
SVIs	Up to 4,000
Jumbo frame	upto 9198 bytes
Power Supply Selection	PWR-C4-950WAC-R or PWR-C4-950WDC-R
Power max rating	950 W
Dimensions (H x W x D)	1.73 x 17.5 x 21.52 in
Rack units (RU)	1 RU
Input voltage	90 to 264 VAC
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	-4° to 149°F (-20° to 65°C)
Relative humidity	Operating: 5% to 90% / Storage: 5% to 95%, non-condensing
Altitude	Operation up to 6000 feet at 55°C and 13,000 feet at 45°C
MTBF (hours)	315790

Related Products

Cisco Catalyst 9500 Series Switches
C9500-32C-E	C9500-24Q-E
C9500-32C-A	C9500-24Q-A
C9500-32QC-E	C9500-12Q-E
C9500-32QC-A	C9500-12Q-A
C9500-48Y4C-E	C9500-40X-E
C9500-48Y4C-A	C9500-40X-A
C9500-24Y4C-E	C9500-16X-E
C9500-24Y4C-A	C9500-16X-A
C9500-48X-A	C9500-16X-2Q-A
C9500-48X-E	C9500-16X-2Q-E
C9500-24X-A	C9500-40X-2Q-A
C9500-24X-E	C9500-40X-2Q-E

Cisco Catalyst 9500 Series Switch Network Modules
C9500-NM-8X	C9500-NM-2Q
