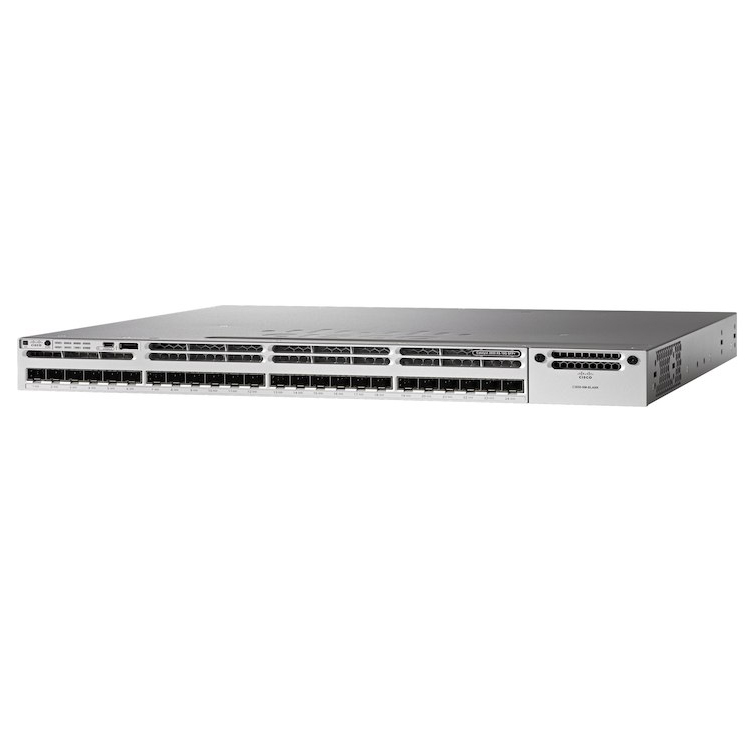

WS-C3850-24XS-S Cisco Catalyst 3850 24 Port 10G Fiber Switch IP Base
Model No.: WS-C3850-24XS-S
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * WS-C3850-24XS-S: Cisco Catalyst 3850 24 Port 10G Fiber Switch IP Base
The Cisco WS-C3850-24XS-S is an enterprise-class Catalyst switch designed for high‑density 10G aggregation in campus and data center networks. It delivers 24 SFP+ ports for flexible 1G/10G fiber access, 320Gbps switching capacity, and up to 480Gbps StackWise stacking bandwidth for scalable deployments across Asia, Europe, Africa, and North America. With integrated multicore CPU, 4GB RAM, and rich Layer 3, security, and wireless controller features, it suits distributors, SMB integrators, and end users building resilient, future-ready infrastructures.
Specification
| WS-C3850-24XS-S Specification | |
| Model | WS-C3850-24XS-S |
| Brand | Cisco |
| Enclosure type | Rack-mountable, 1U |
| Ports | 24 x SFP+ ports |
| Network management interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling; Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE power | None |
| Switching capacity | 320Gbps |
| Maximum stacking number | Up to 9 switches with same IOS feature set in same series |
| Stack bandwidth | 480Gbps |
| Forwarding performance | 454.55Mpps |
| FNF entries | 48,000 flows |
| Maximum VLAN IDs | 1000 |
| MAC address table size | 32K |
| CPU | Multicore CPU |
| RAM | 4GB |
| Flash memory | 4GB |
| Number of APs per switch/stack | 100 |
| Number of wireless clients per switch/stack | 2000 |
| Network Module Options | C3850-NM-4-1G: 4 x 1G uplink network module C3850-NM-2-10G: 2 x 10G or 4 x 1G uplink network module |
| StackWise stacking cables | STACK-T1-50CM (0.5 m); STACK-T1-1M (1.0 m); STACK-T1-3M (3.0 m) |
| Stack power cables (recommended) | CAB-SPWR-30CM (30cm); CAB-SPWR-150CM (150cm) |
| Power supply | PWR-C1-715WAC |
| Power redundancy | Optional |
| Dimensions (W x D x H) | 44.5 x 45 x 4.45 cm |
| Rack mounting kit | Optional |
| System software | Cisco IOS IP Base (upgradable) |
Related Products
| Cisco Catalyst 3850 Series Switches | |
| WS-C3850-48T-L | WS-C3850-24S-S |
| WS-C3850-48T-S | WS-C3850-24S-E |
| WS-C3850-48T-E | WS-C3850-24T-L |
| WS-C3850-48P-L | WS-C3850-24T-S |
| WS-C3850-48P-S | WS-C3850-24T-E |
| WS-C3850-48P-E | WS-C3850-24P-L |
| WS-C3850-48F-L | WS-C3850-24P-S |
| WS-C3850-48F-S | WS-C3850-24P-E |
| WS-C3850-48F-E | WS-C3850-24XS-S |
| WS-C3850-48XS-S | WS-C3850-24XS-E |
| WS-C3850-48XS-E | WS-C3850-12XS-S |
| WS-C3850-12XS-E | |
| Cisco Catalyst 3850 Series Switch Network Modules | |
| C3850-NM-4-1G | C3850-NM-4-10G |
| C3850-NM-2-10G | C3850-NM-8-10G |
| C3850-NM-2-40G | |
