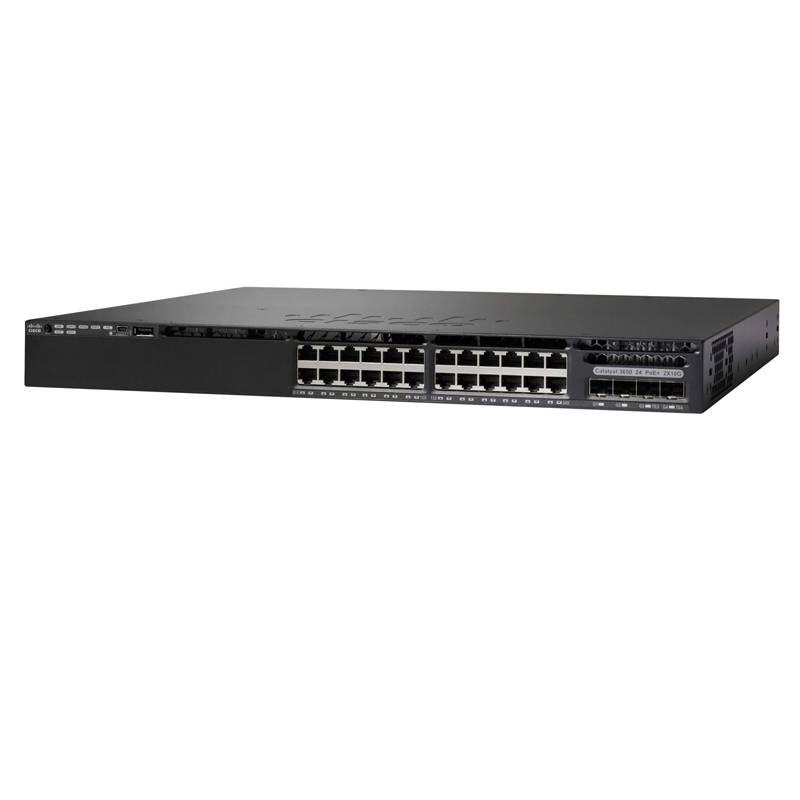

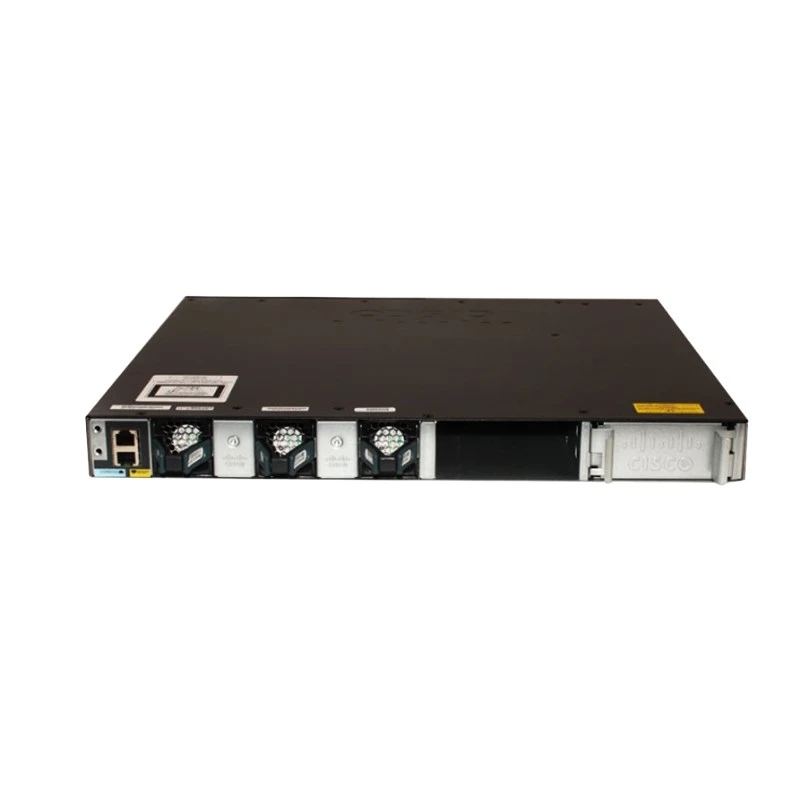

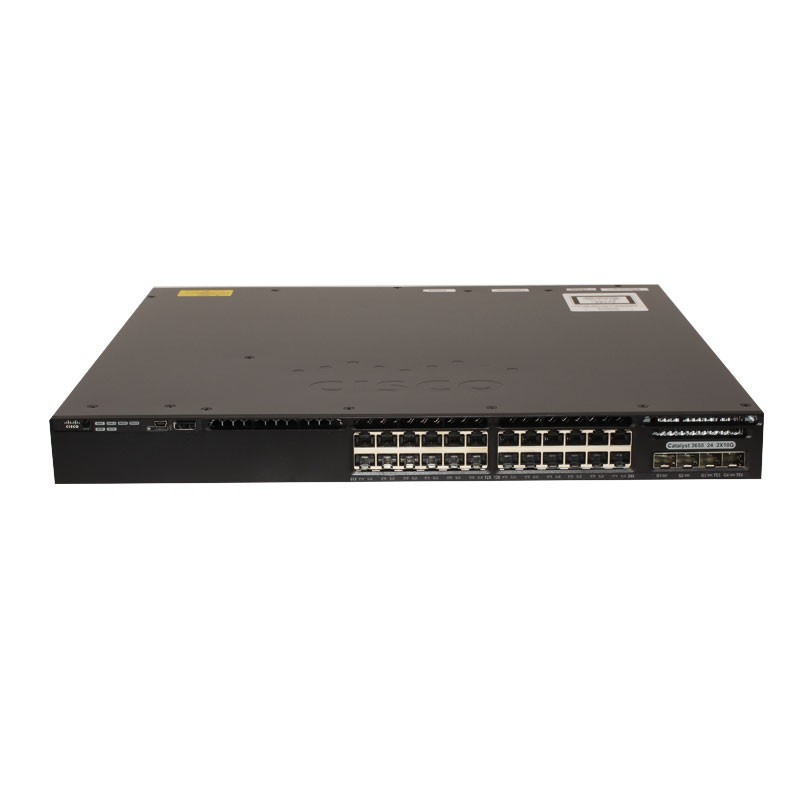

WS-C3650-24TD-L Cisco Catalyst 3650 24 Port Data 2x10G Uplink Switch LAN Base
Model No.: WS-C3650-24TD-L
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * WS-C3650-24TD-L: Cisco Catalyst 3650 24 Port Data 2x10G Uplink Switch LAN Base
The Cisco WS-C3650-24TD-L is an enterprise-class Layer 3 access switch designed for converged wired and wireless networks. With 24 Gigabit Ethernet ports and 2 integrated 10G SFP+ uplinks, it delivers 88Gbps switching capacity and 68.45Mpps forwarding performance for campus or branch deployments. StackWise-160 provides 160Gbps stack bandwidth and up to 9-member stacking for simplified management. Integrated wireless controller features support up to 50 APs and 1,000 clients per switch or stack, making it ideal for growing enterprise networks.
Specification
| WS-C3650-24TD-L Specification | |
| Model | WS-C3650-24TD-L |
| Brand | Cisco |
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 + 2 x 10G SFP+ |
| Network management interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling; Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE power | None |
| Switching capacity | 88Gbps |
| Maximum stacking number | 9 |
| Stack bandwidth | 160Gbps |
| Forwarding performance | 68.45Mpps |
| FNF entries | 24000 |
| Maximum VLAN IDs | 4,094; 32K |
| CPU | Multicore CPU |
| RAM | 4GB |
| Flash memory | 2GB |
| Number of AP per switch/stack | 50 |
| Number of wireless clients per switch/stack | 1000 |
| Power supply | PWR-C2-640WAC |
| Power redundancy | Optional |
| Dimensions (W x D x H) | 44.5 x 44.5 x 4.4 cm |
| Rack mounting kit | Optional |
| System software | Cisco IOS LAN Base (upgradable) |
Related Products
| Cisco Catalyst 3650 4x1G Uplink Series Switches | |
| WS-C3650-48TS-L | WS-C3650-24TS-L |
| WS-C3650-48TS-S | WS-C3650-24TS-S |
| WS-C3650-48TS-E | WS-C3650-24TS-E |
| WS-C3650-48PS-L | WS-C3650-24PS-L |
| WS-C3650-48PS-S | WS-C3650-24PS-S |
| WS-C3650-48PS-E | WS-C3650-24PS-E |
| WS-C3650-48FS-L | |
| WS-C3650-48FS-S | |
| WS-C3650-48FS-E | |
| Cisco Catalyst 3650 2x10G Uplink Series Switches | |
| WS-C3650-24TD-L | WS-C3650-48PD-L |
| WS-C3650-24TD-S | WS-C3650-48PD-S |
| WS-C3650-24TD-E | WS-C3650-48PD-E |
| WS-C3650-48TD-L | WS-C3650-48FD-L |
| WS-C3650-48TD-S | WS-C3650-48FD-S |
| WS-C3650-48TD-E | WS-C3650-48FD-E |
| WS-C3650-24PD-L | |
| WS-C3650-24PD-S | |
| WS-C3650-24PD-E | |
| Cisco Catalyst 3650 4x10G Uplink Series Switches | |
| WS-C3650-48TQ-L | WS-C3650-48TQ-E |
| WS-C3650-48PQ-L | WS-C3650-48PQ-E |
| WS-C3650-48FQ-L | WS-C3650-48FQ-E |
| WS-C3650-48TQ-S | |
| WS-C3650-48PQ-S | |
| WS-C3650-48FQ-S | |
FAQ
Q: Is your product original?
A: Yes, our product is original, we only sells original product.
Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.
Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.
Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.
Q: If the product has quality problem, how to solve it?
A: If there is quality problem during warranty, you can ship back to get replacement or refund.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
