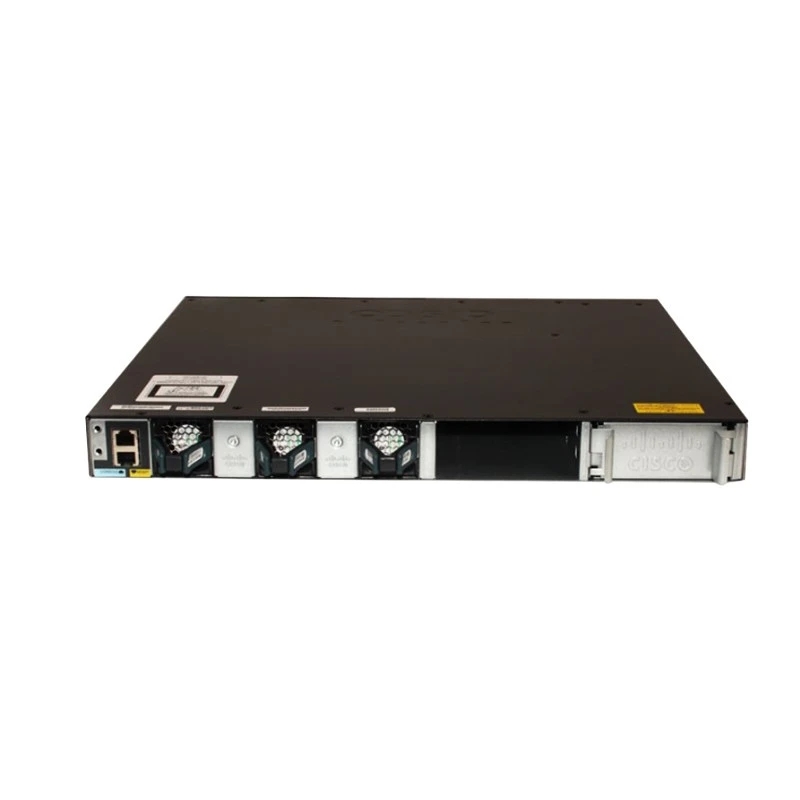

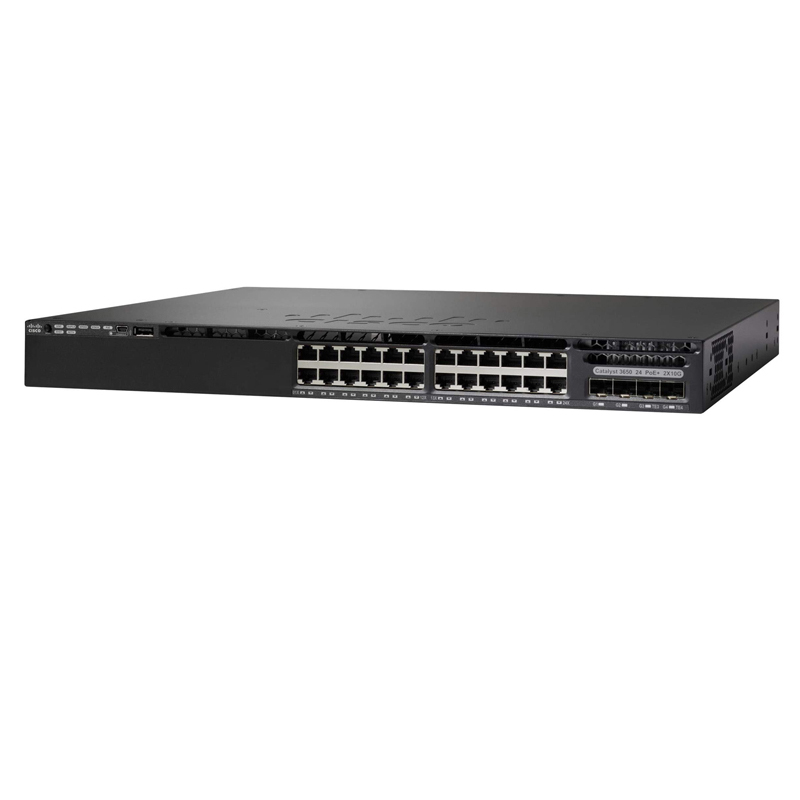

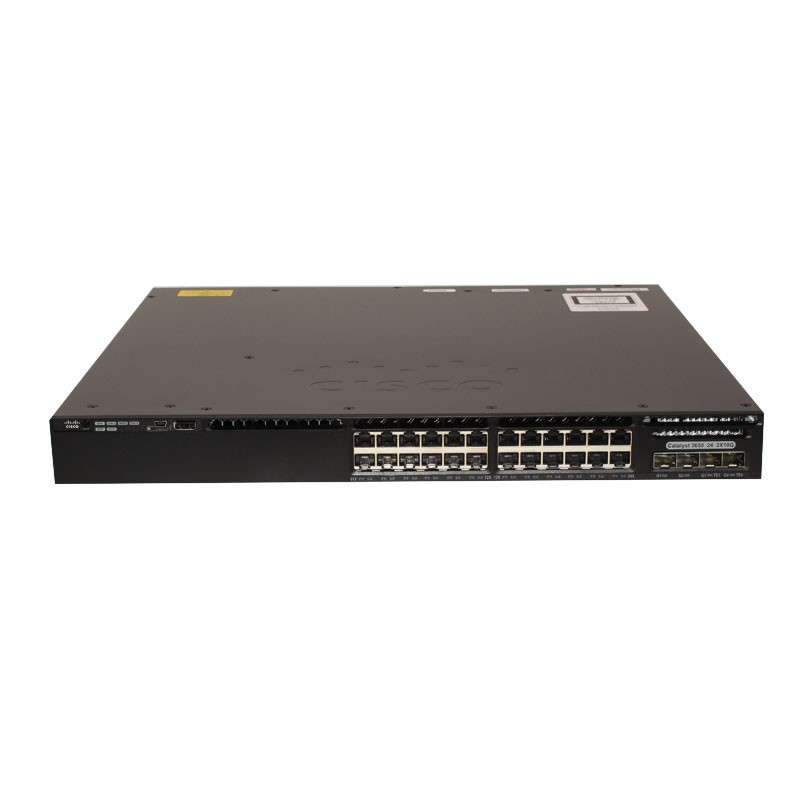

WS-C3650-24TD-S Cisco Catalyst 3650 24 Port Data 2x10G Uplink Switch IP Base
Model No.: WS-C3650-24TD-S
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * WS-C3650-24TD-S: Cisco Catalyst 3650 24 Port Data 2x10G Uplink Switch IP Base
The Cisco WS-C3650-24TD-S is an enterprise-class Layer 3 switch designed for converged wired and wireless networks. With 24x 10/100/1000 ports and 2x 10G SFP+ plus 2x 1G SFP uplinks, it delivers 88Gbps switching capacity and 68.45Mpps forwarding performance for campus or branch environments. Integrated wireless controller capabilities support up to 50 APs and 1,000 clients per switch/stack, while Cisco IOS IP Base software, advanced security, and rich routing features make it ideal for distributors, SMB integrators, and end users across Asia, Europe, Africa, and North America.
Specification
| WS-C3650-24TD-S Specification | |
| Model | WS-C3650-24TD-S |
| Brand | Cisco |
| Enclosure Type | Rack-mountable, 1U |
| Ports | 24 x 10/100/1000 + 2 x 10G SFP+ & 2 x 1G SFP |
| Network Management Interface | Ethernet management port: RJ-45, 4-pair Cat-5 UTP cabling; Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | None |
| Switching Capacity | 88Gbps |
| Maximum Stacking Number | 9 |
| Stack Bandwidth | 160Gbps |
| Forwarding Performance | 68.45Mpps |
| FNF Entries | 24000 |
| Maximum VLAN IDs | 4094 |
| Maximum MAC Addresses | 32K |
| CPU | Multicore CPU |
| RAM | 4GB |
| Flash memory | 2GB |
| Wireless: Number of AP per Switch/Stack | 50 |
| Wireless: Number of Clients per Switch/Stack | 1000 |
| Power Supply | PWR-C2-640WAC |
| Power redundancy | Optional |
| Dimensions (W x D x H) | 44.5 x 44.5 x 4.4 cm |
| Rack Mounting Kit | Optional |
| System Software | Cisco IOS IP Base (upgradable) |
Related Products
| Cisco Catalyst 3650 4x1G Uplink Series Switches | |
| WS-C3650-48TS-L | WS-C3650-24TS-L |
| WS-C3650-48TS-S | WS-C3650-24TS-S |
| WS-C3650-48TS-E | WS-C3650-24TS-E |
| WS-C3650-48PS-L | WS-C3650-24PS-L |
| WS-C3650-48PS-S | WS-C3650-24PS-S |
| WS-C3650-48PS-E | WS-C3650-24PS-E |
| WS-C3650-48FS-L | |
| WS-C3650-48FS-S | |
| WS-C3650-48FS-E | |
| Cisco Catalyst 3650 2x10G Uplink Series Switches | |
| WS-C3650-24TD-L | WS-C3650-48PD-L |
| WS-C3650-24TD-S | WS-C3650-48PD-S |
| WS-C3650-24TD-E | WS-C3650-48PD-E |
| WS-C3650-48TD-L | WS-C3650-48FD-L |
| WS-C3650-48TD-S | WS-C3650-48FD-S |
| WS-C3650-48TD-E | WS-C3650-48FD-E |
| WS-C3650-24PD-L | |
| WS-C3650-24PD-S | |
| WS-C3650-24PD-E | |
| Cisco Catalyst 3650 4x10G Uplink Series Switches | |
| WS-C3650-48TQ-L | WS-C3650-48TQ-E |
| WS-C3650-48PQ-L | WS-C3650-48PQ-E |
| WS-C3650-48FQ-L | WS-C3650-48FQ-E |
| WS-C3650-48TQ-S | |
| WS-C3650-48PQ-S | |
| WS-C3650-48FQ-S | |
FAQ
Q: Is your product original?
A: Yes, our product is original, we only sells original product.
Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.
Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.
Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.
Q: If the product has quality problem, how to solve it?
A: If there is quality problem during warranty, you can ship back to get replacement or refund.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
