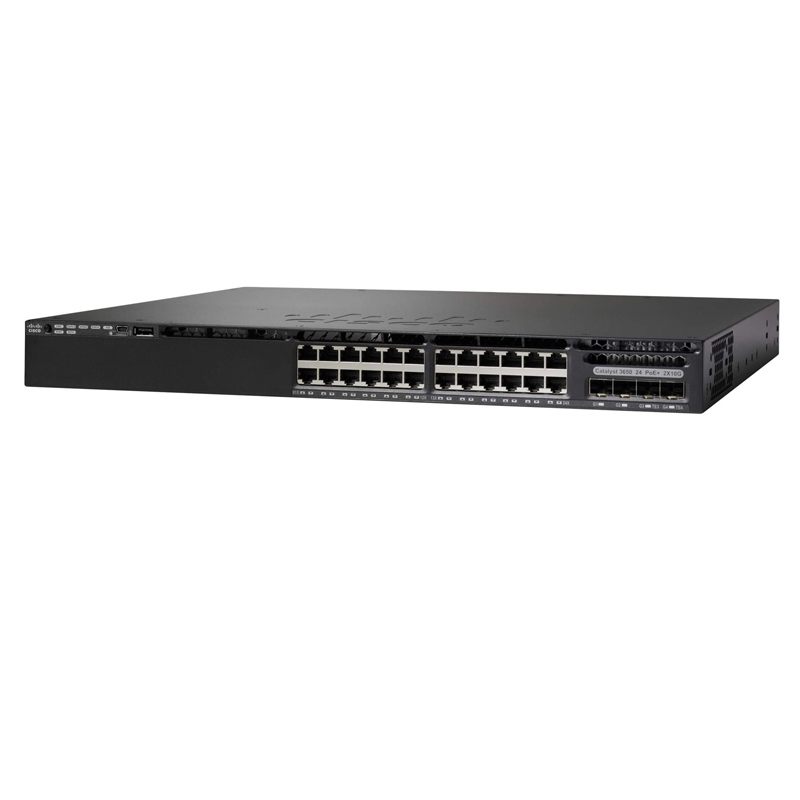

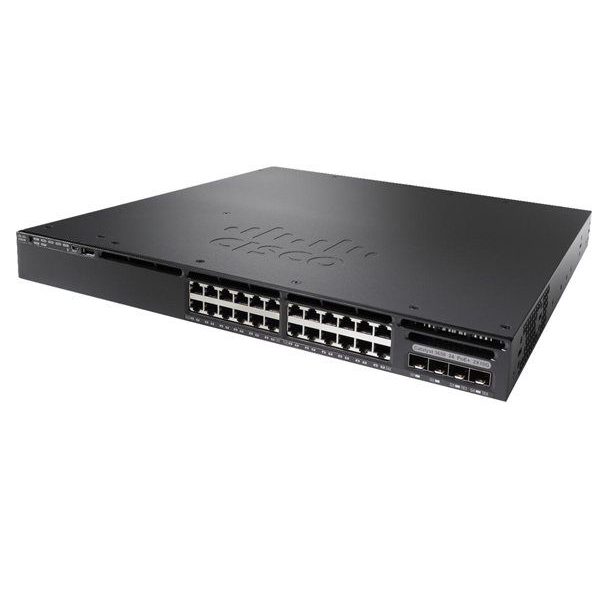

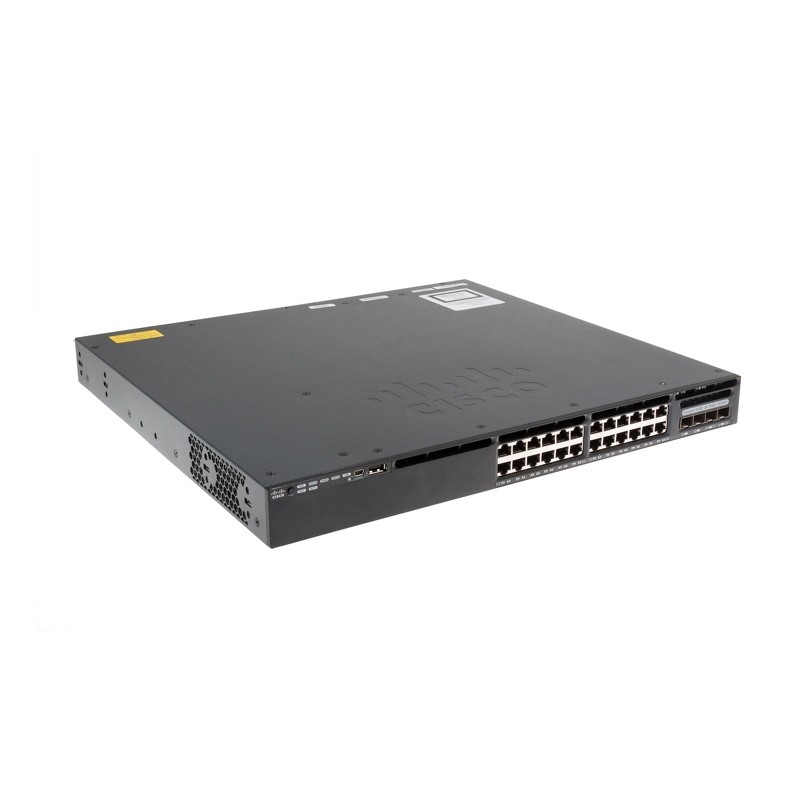

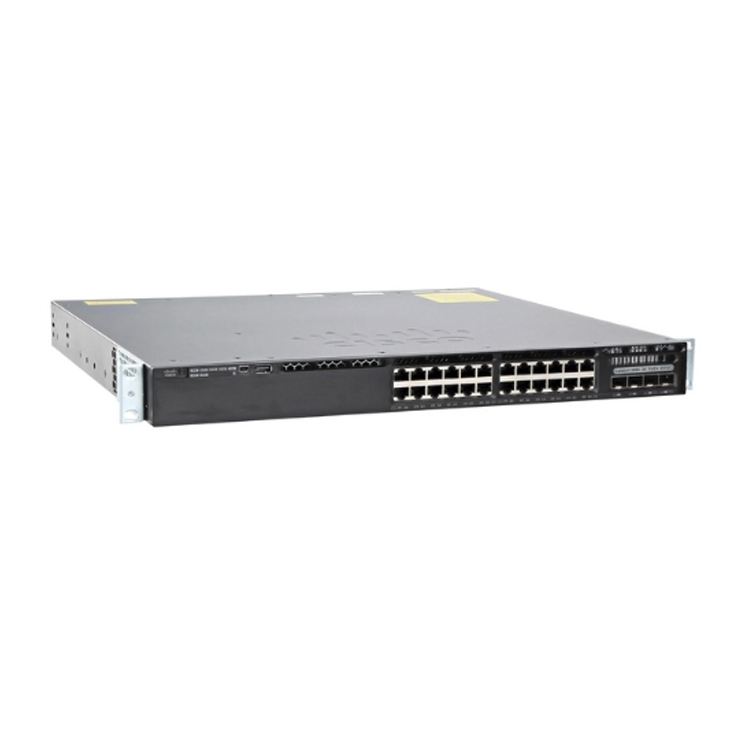

WS-C3650-24PD-L Cisco Catalyst 3650 24 Port PoE 2x10G Uplink Switch LAN Base
Model No.: WS-C3650-24PD-L
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * WS-C3650-24PD-L: Cisco Catalyst 3650 24 Port PoE 2x10G Uplink Switch LAN Base
The Cisco WS-C3650-24PD-L is an enterprise-class access switch designed for converged wired and wireless networks. It delivers 24x 10/100/1000 PoE+ ports with 390W available PoE power, ideal for powering IP phones, cameras, and access points in branch and campus deployments. With 2x 10G SFP+ and 2x 1G SFP uplinks, 88Gbps switching capacity, and StackWise-160 stacking up to 9 switches, it provides scalable performance for growing enterprise network edges. Integrated wireless controller capabilities support up to 50 APs and 1,000 clients per switch or stack.
Specification
| WS-C3650-24PD-L Specification | |
| Model | WS-C3650-24PD-L |
| Brand | Cisco |
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10G SFP+ & 2 x 1G SFP |
| Network management interfaces | Ethernet management port: RJ-45, 4-pair Cat-5 UTP cabling; Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE power | 390W |
| Switching capacity | 88Gbps |
| Maximum stacking number | 9 switches |
| Available PoE power | |
| Stack bandwidth | 160Gbps |
| Forwarding performance | 68.45Mpps |
| FNF entries | Disabled (IP Base license required) |
| Maximum VLAN IDs (active) | 255 |
| Maximum MAC addresses / VLAN IDs (table size) | 32K |
| CPU | Multicore CPU |
| RAM | 4GB |
| Flash memory | 2GB |
| Number of APs per switch/stack | 50 |
| Number of wireless clients per switch/stack | 1000 |
| Power supply | PWR-C2-640WAC |
| Power redundancy | Optional |
| Dimensions (W x D x H) | 44.5 x 44.8 x 4.4 cm |
| Rack mounting kit | Optional |
| System software | Cisco IOS LAN Base (upgradable) |
| Weight | 17.49 kg |
