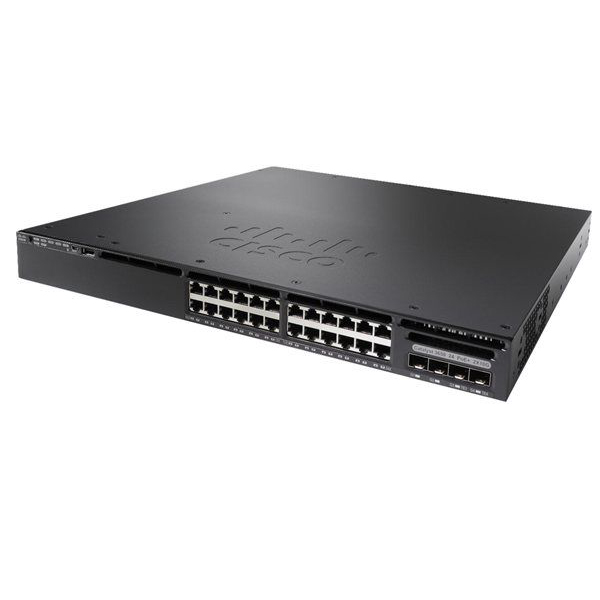

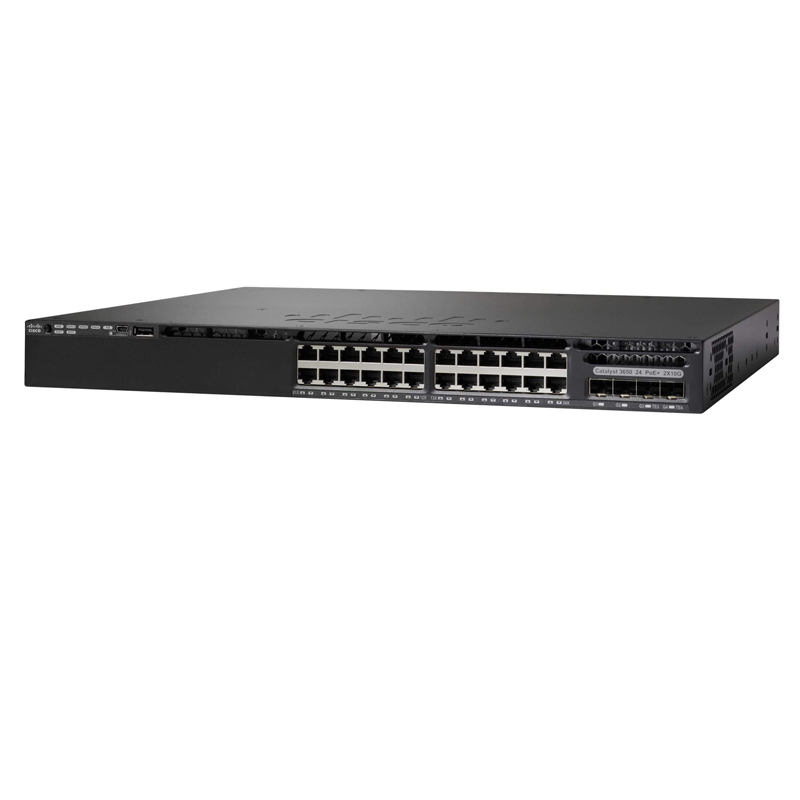

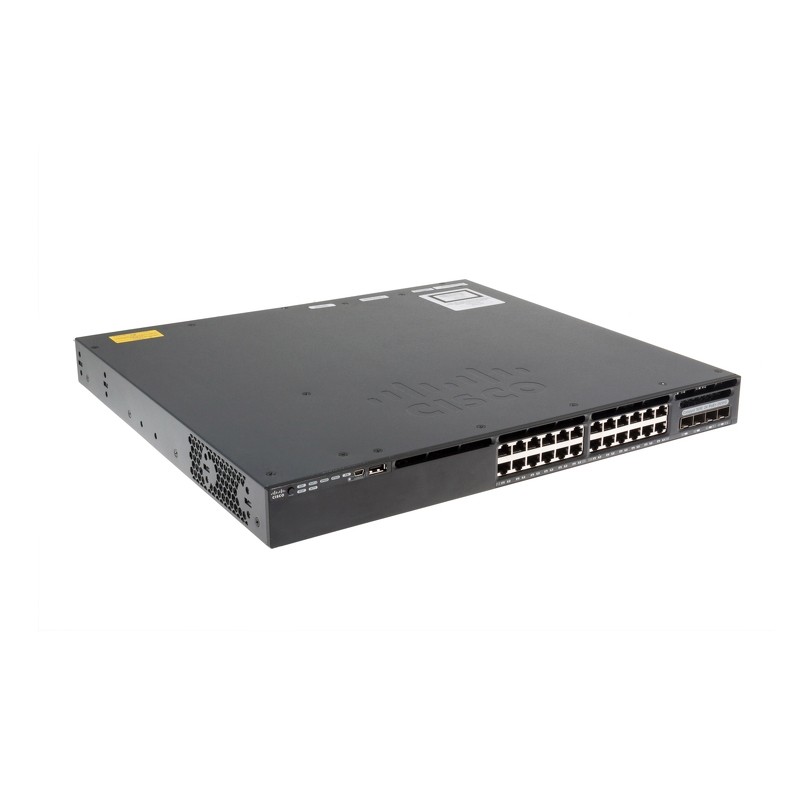

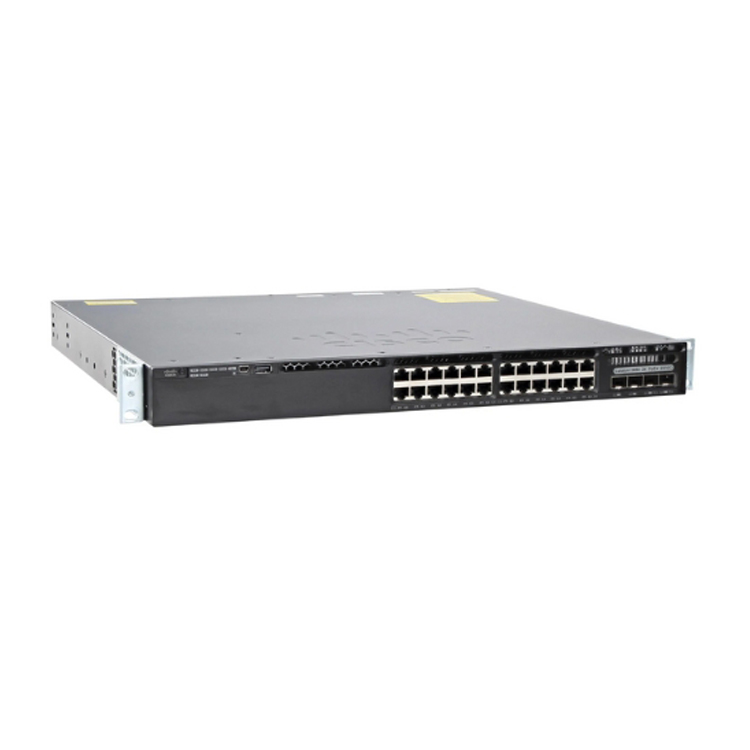

WS-C3650-24PD-S Cisco Catalyst 3650 24 Port PoE 2x10G Uplink Switch IP Base
Model No.: WS-C3650-24PD-S
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * WS-C3650-24PD-S: Cisco Catalyst 3650 24 Port PoE 2x10G Uplink Switch IP Base
The Cisco WS-C3650-24PD-S is an enterprise-grade access switch designed for converged wired and wireless networks in campus and branch environments. This Cisco Catalyst 3650 switch delivers 24x 10/100/1000 PoE+ ports with 390W PoE budget and 2x 10G SFP+ uplinks, ideal for powering IP phones, cameras, and access points. With 88Gbps switching capacity, StackWise-160 160Gbps stacking bandwidth, and integrated wireless controller capabilities for up to 50 APs and 1,000 clients, it offers scalable performance for growing enterprise networks. Advanced Layer 2/Layer 3 features, rich QoS, and comprehensive security (including 802.1X, TrustSec, and DHCP snooping) help protect critical services, while optional redundant power and extensive environmental tolerance ensure high availability across diverse deployment scenarios.
Specification
   WS-C3650-24PD-S Specification |
|
| Model | WS-C3650-24PD-S |
| Brand | Cisco |
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10G SFP+ & 2 x 1G SFP |
| Network management interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling; Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE power | 390W |
| Switching capacity | 88Gbps |
| Maximum stacking number | 9 switches |
| Stack bandwidth | 160Gbps |
| Forwarding performance | 68.45Mpps |
| FNF entries | 24000 |
| Maximum VLAN IDs | 4094 |
| Maximum MAC addresses | 32K |
| CPU | Multicore CPU |
| RAM | 4GB |
| Flash memory | 2GB |
| Wireless APs per switch/stack | 50 |
| Wireless clients per switch/stack | 1000 |
| Power supply | PWR-C2-640WAC |
| Power redundancy | Optional |
| Dimensions (W x D x H) | 44.5 x 44.8 x 4.4 cm |
| Rack mounting kit | Optional |
| System software | Cisco IOS IP Base (upgradable) |
| Weight | 17.49 kg |
