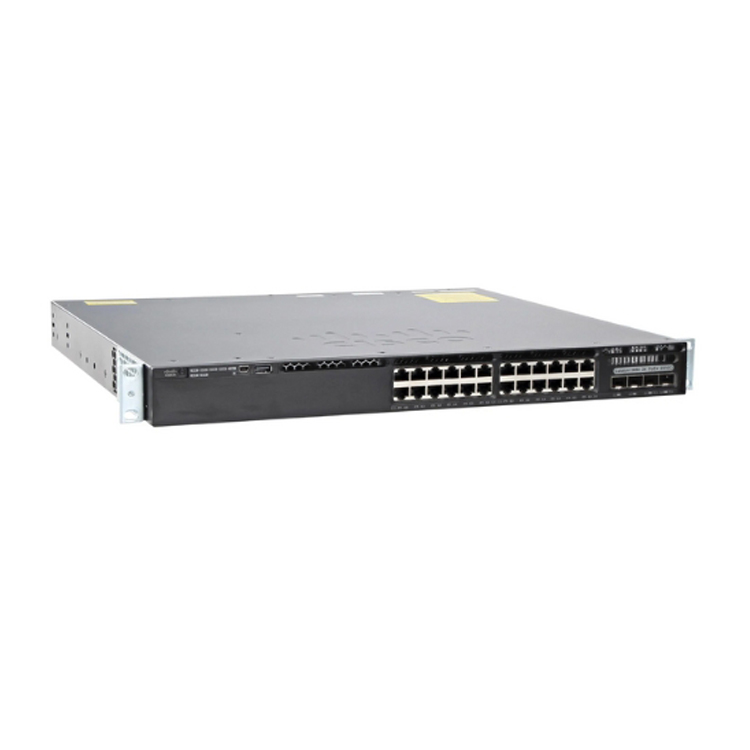

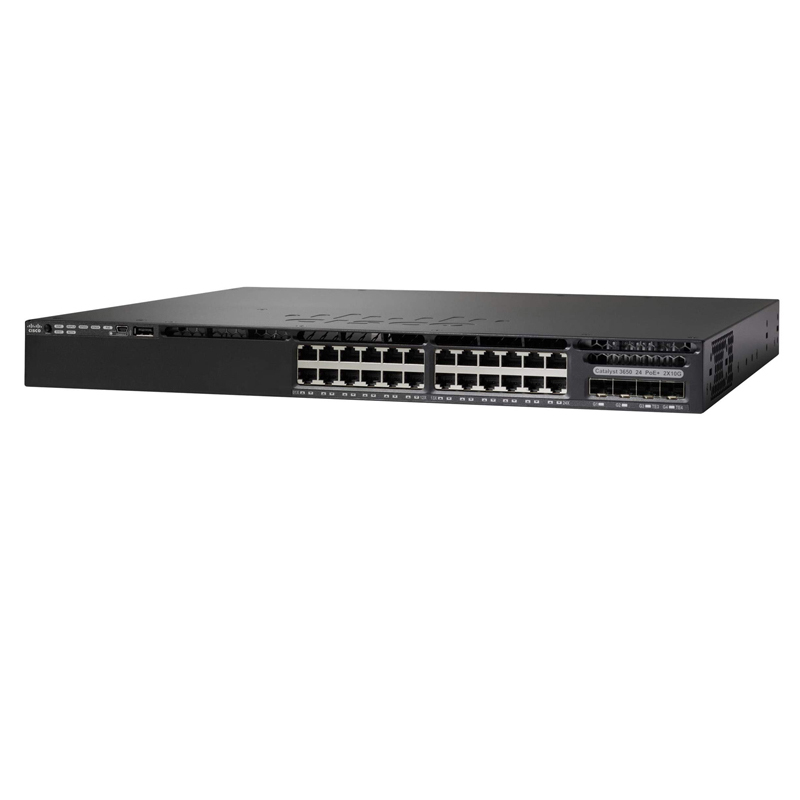

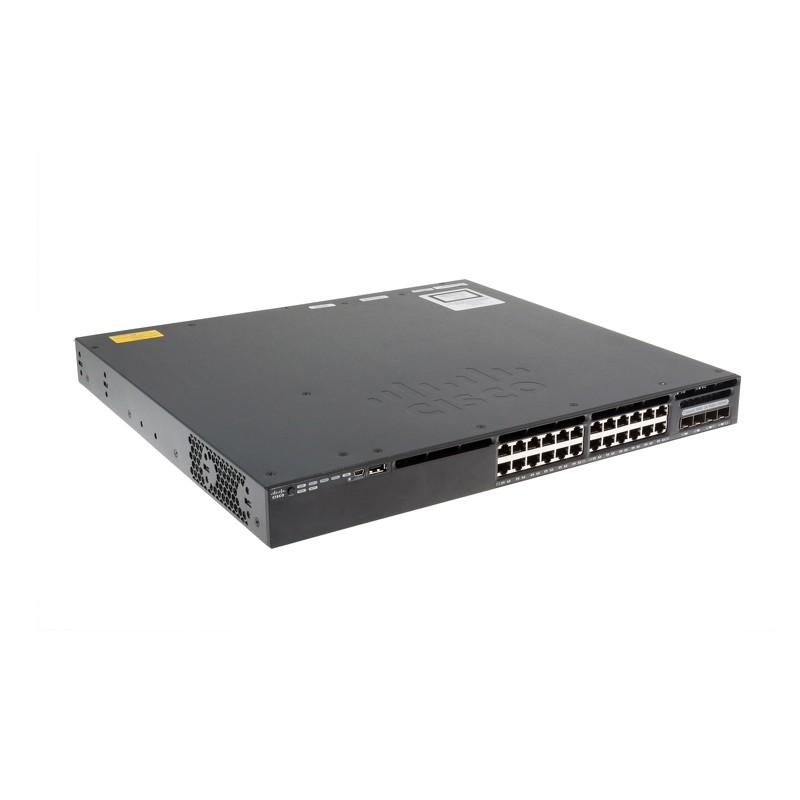

WS-C3650-24PD-E Cisco Catalyst 3650 24 Port PoE 2x10G Uplink Switch IP Services
Model No.: WS-C3650-24PD-E
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * WS-C3650-24PD-E: Cisco Catalyst 3650 24 Port PoE 2x10G Uplink Switch IP Services
The Cisco WS-C3650-24PD-E is an enterprise-class access switch designed for converged wired and wireless networks. It delivers 24x 10/100/1000 PoE+ ports with 390W available PoE power, ideal for IP phones, cameras, and access points, plus dual 10G SFP+ uplinks for high-speed aggregation. With 88Gbps switching capacity, 68.45Mpps forwarding performance, and StackWise-160 providing 160Gbps stack bandwidth for up to 9 switches, it ensures scalable performance for branch, campus, and mid-size data center deployments, while integrated wireless controller features simplify edge access.
Specification
| WS-C3650-24PD-E Specification | |
| Model | WS-C3650-24PD-E |
| Brand | Cisco |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000 PoE+ + 2 x 10G SFP+ & 2 x 1G SFP |
| Network Management Interface | Ethernet management port: RJ-45, 4-pair Cat-5 UTP cabling; Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE Power | 390W |
| Switching Capacity | 88Gbps |
| Maximum Stacking Number | 9 switches |
| Stack Bandwidth | 160Gbps |
| Forwarding Performance | 68.45Mpps |
| FNF Entries | 24000 |
| Maximum VLAN IDs | 4094 |
| MAC Address Table Size | 32K |
| CPU | Multicore CPU |
| RAM | 4GB |
| Flash Memory | 2GB |
| Wireless - Number of AP per Switch/Stack | 50 |
| Wireless - Number of Clients per Switch/Stack | 1000 |
| Total WLANs per Switch | 64 |
| Wireless Bandwidth per Switch | Up to 20Gbps |
| Power Supply | PWR-C2-640WAC |
| Power Redundancy | Optional |
| Dimensions (W x D x H) | 44.5 x 44.8 x 4.4 cm |
| Rack Mounting Kit | Optional |
| System Software | IOS IP Service |
| Weight | 17.5 kg |
