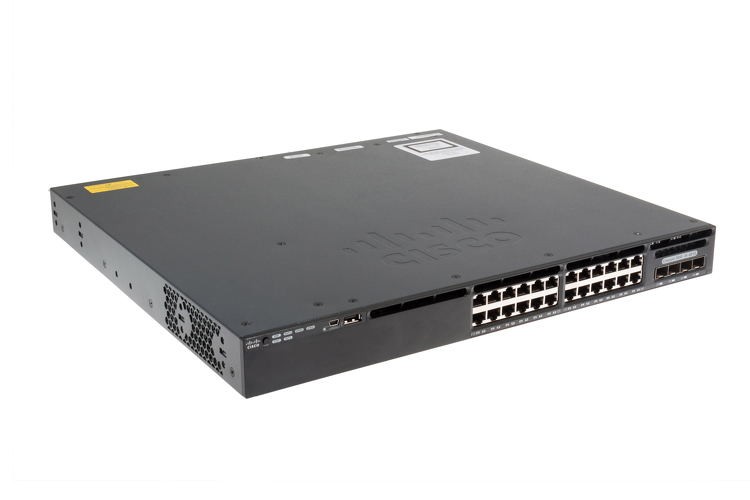

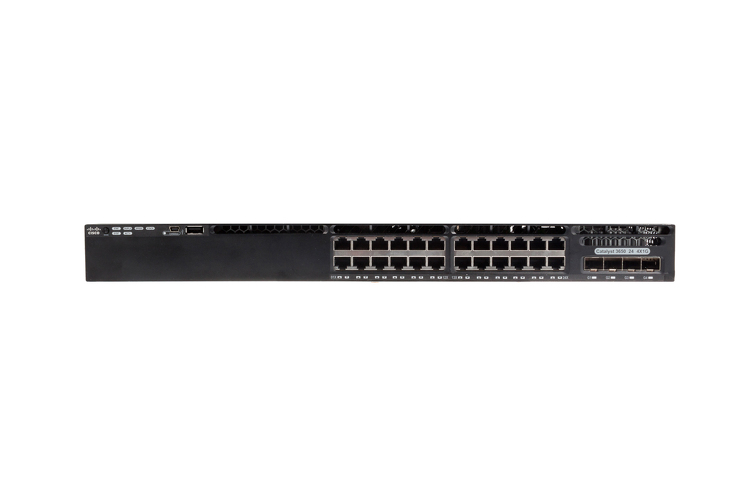

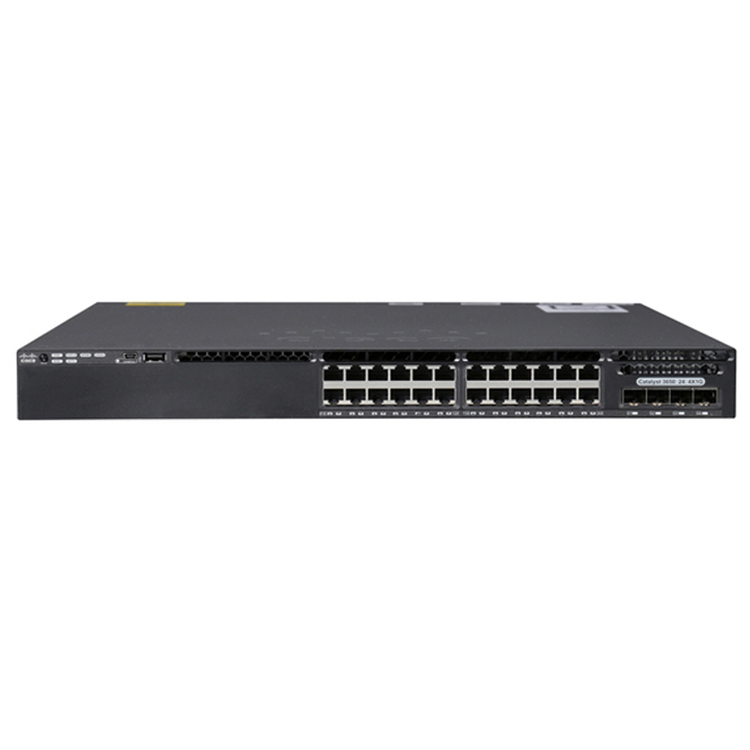

WS-C3650-24TS-E Cisco Catalyst 3650 24 Port Data 4x1G Uplink Switch IP Services
Model No.: WS-C3650-24TS-E
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * WS-C3650-24TS-E: Cisco Catalyst 3650 24 Port Data 4x1G Uplink Switch IP Services
The Cisco WS-C3650-24TS-E is an enterprise-class access switch designed for converged wired and wireless campus networks. With 24 x 10/100/1000Mbps ports plus 4 x 1G SFP uplinks, this Catalyst 3650 delivers 88Gbps switching capacity and 41.66Mpps forwarding performance for high-density edge connectivity. Integrated Cisco IOS IP Services, rich Layer 3 routing, and advanced QoS and security features make it ideal for mid-size enterprises, schools, and branch offices that need scalable stacking and reliable management without PoE.
Specification
| WS-C3650-24TS-E Specification | |
| Model | WS-C3650-24TS-E |
| Brand | Cisco |
| Enclosure type | Rack-mountable - 1U |
| Ports | 24 x 10/100/1000Mbps + 4 x 1G SFP |
| Network management interface | Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling; Management console port: RJ-45-to-DB9 cable for PC connections |
| Available PoE power | None |
| Switching capacity | 88Gbps |
| Maximum stacking number | 9 |
| Stack bandwidth | 160Gbps |
| Forwarding performance | 41.66Mpps |
| FNF entries | 24000 |
| Maximum VLAN IDs | 4094 |
| MAC address table size | 32K |
| CPU | Multicore CPU |
| RAM | 4GB |
| Flash memory | 2GB |
| Number of APs per switch/stack | 50 |
| Number of wireless clients per switch/stack | 1000 |
| Power supply | PWR-C2-640WAC |
| Power redundancy | Optional |
| Dimensions (W x D x H) | 44.5 x 44.5 x 4.4 cm |
| Rack mounting kit | Optional |
| System software | Cisco IOS IP Service |
| Weight | 17.5 kg |
Related Products
| Cisco Catalyst 3650 4x1G Uplink Series Switches | |
| WS-C3650-48TS-L | WS-C3650-24TS-L |
| WS-C3650-48TS-S | WS-C3650-24TS-S |
| WS-C3650-48TS-E | WS-C3650-24TS-E |
| WS-C3650-48PS-L | WS-C3650-24PS-L |
| WS-C3650-48PS-S | WS-C3650-24PS-S |
| WS-C3650-48PS-E | WS-C3650-24PS-E |
| WS-C3650-48FS-L | |
| WS-C3650-48FS-S | |
| WS-C3650-48FS-E | |
| Cisco Catalyst 3650 2x10G Uplink Series Switches | |
| WS-C3650-24TD-L | WS-C3650-48PD-L |
| WS-C3650-24TD-S | WS-C3650-48PD-S |
| WS-C3650-24TD-E | WS-C3650-48PD-E |
| WS-C3650-48TD-L | WS-C3650-48FD-L |
| WS-C3650-48TD-S | WS-C3650-48FD-S |
| WS-C3650-48TD-E | WS-C3650-48FD-E |
| WS-C3650-24PD-L | |
| WS-C3650-24PD-S | |
| WS-C3650-24PD-E | |
| Cisco Catalyst 3650 4x10G Uplink Series Switches | |
| WS-C3650-48TQ-L | WS-C3650-48TQ-E |
| WS-C3650-48PQ-L | WS-C3650-48PQ-E |
| WS-C3650-48FQ-L | WS-C3650-48FQ-E |
| WS-C3650-48TQ-S | |
| WS-C3650-48PQ-S | |
| WS-C3650-48FQ-S | |
