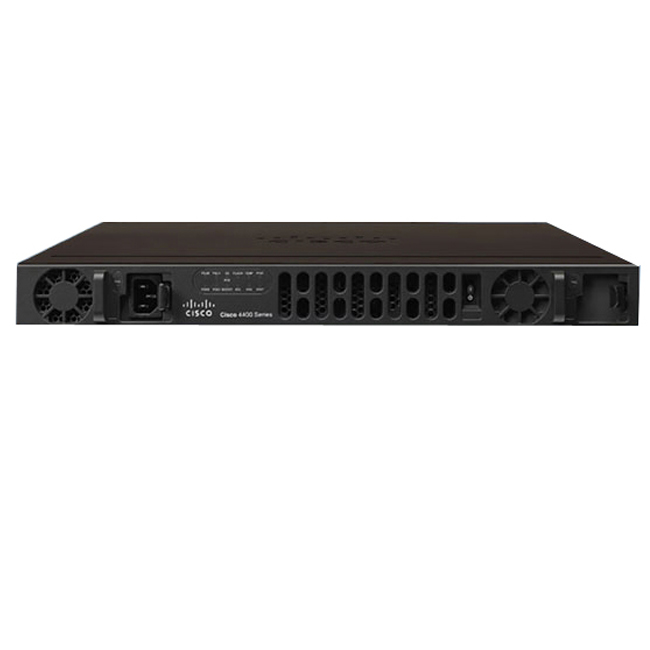

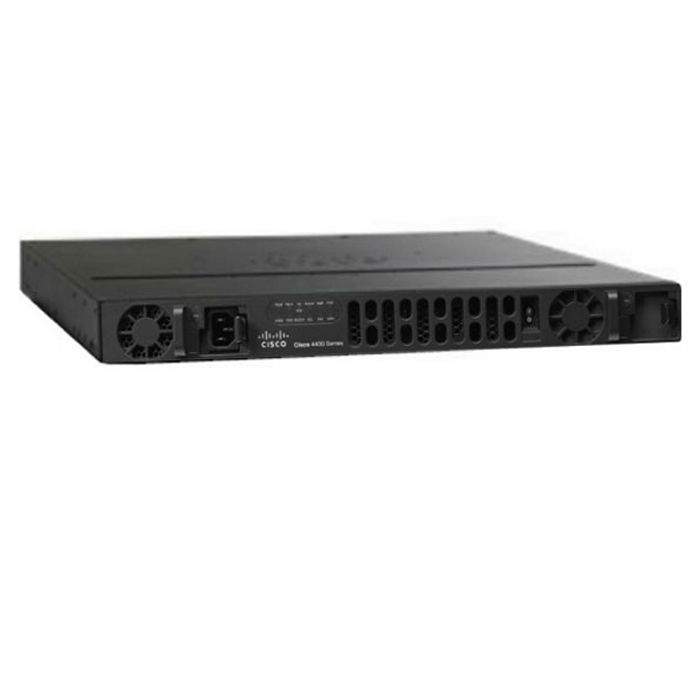

ISR4431-AX/K9 Cisco ISR 4431 Router AX Bundle with APP and SEC License
Model No.: ISR4431-AX/K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * ISR4431-AX/K9: Cisco ISR 4431 Router AX Bundle with APP and SEC License
The Cisco ISR4431-AX/K9 is an enterprise-class integrated services router designed for secure, high-performance branch connectivity. Delivering 500Mbps to 1Gbps aggregate throughput, it supports demanding WAN, VPN, and MPLS services on a multi-core architecture. Four onboard 10/100/1000 WAN/LAN ports plus SFP interfaces offer flexible uplink options for distributors and mid-sized integrators building scalable enterprise networks across Asia, Europe, Africa, and North America.
Specification
| ISR4431-AX/K9 Specification | |
| Model | ISR4431-AX/K9 |
| Brand | Cisco |
| Description | Cisco ISR 4431 Advanced services router (2GE, 2NIM, 1SM, 4G FLASH, 4G DRAM, MPLS, OTV) |
| Aggregate Throughput | 500Mbps to 1Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory DDR3 ECC DRAM (data plane) | 2GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16GB |
| Default flash memory | 8GB |
| Maximum flash memory | 32GB |
| External USB 2.0 slots (Type A) | 2 |
| USB console port (Type B mini, up to 115.2 kbps) | 1 |
| Serial console port (RJ-45, up to 115.2 kbps) | 1 |
| Serial auxiliary port (RJ-45, up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC, and PoE |
| Redundant power supply | Internal: AC, DC, and PoE |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range (AC power supply, maximum) | 3 to 1.3 A |
| AC input surge current | 60 A peak and less than 5 Arms per half cycle |
| Typical power (no modules) | 65W |
| Maximum power with AC power supply (no PoE) | 250W |
| Maximum power with PoE power supply (platform only) | 500W with PoE redundant |
| Maximum endpoint PoE power available from PoE power supply | 250W with optional redundancy |
| Weight | 20.88 kg |
