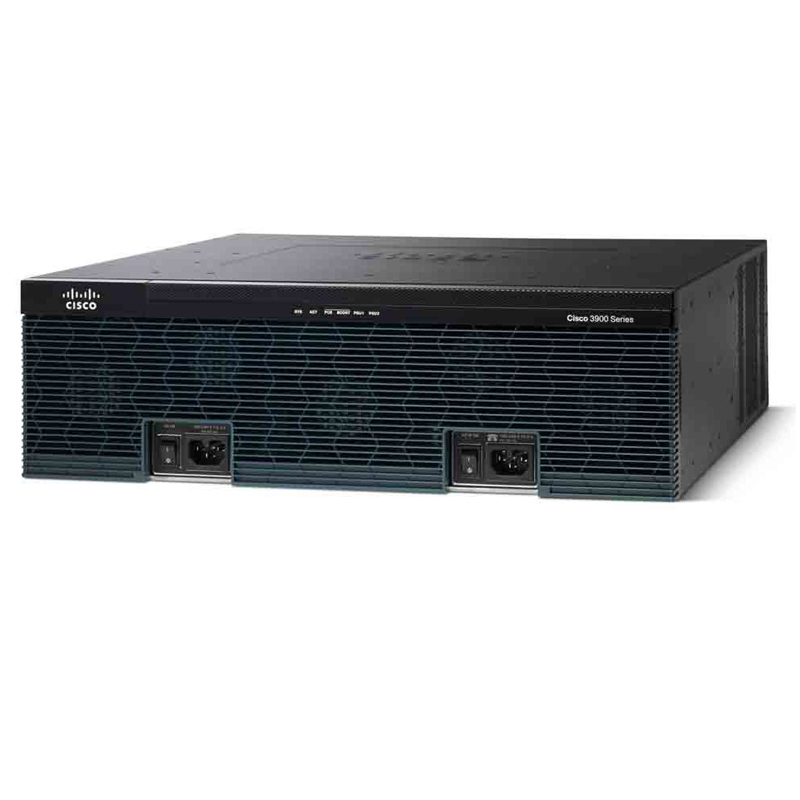

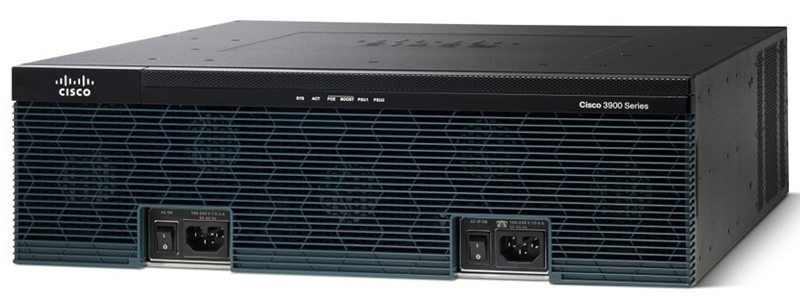

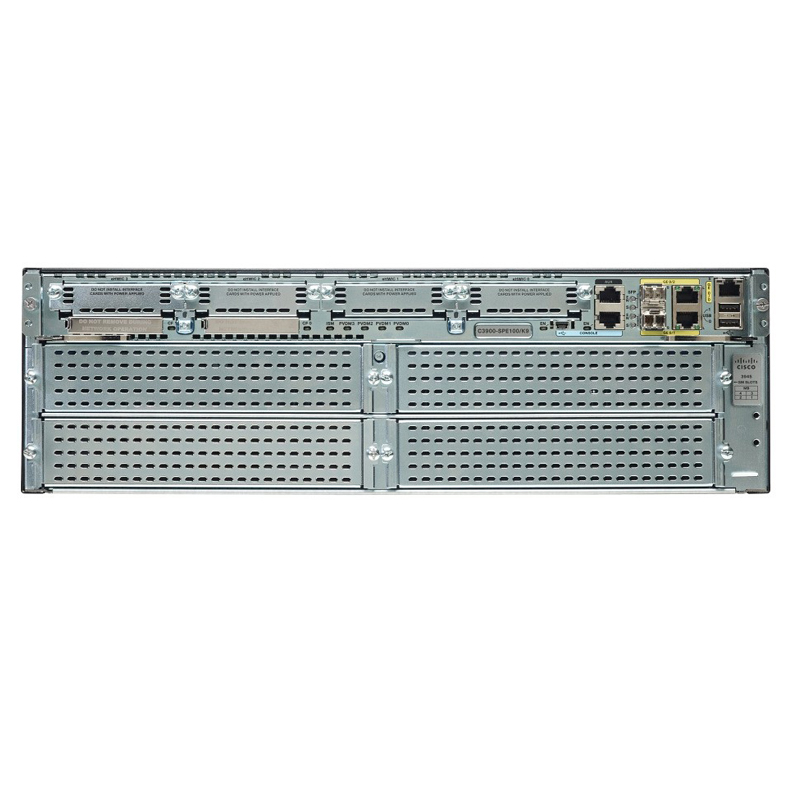

CISCO3945/K9 Cisco 3945 Router, 3 GE, 4 EHWIC, 1 GB DRAM, IP Base
Model No.: CISCO3945/K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * CISCO3945/K9: Cisco 3945 Router with 3 onboard GE, C3900-SPE150/K9, 4 EHWIC slots, 4 DSP slots, 1 ISM slot, 4 SM slots, 256MB CF default, 1 GB DRAM default, IP Base
The Cisco CISCO3945/K9 is an enterprise-class modular router designed for high-performance branch and campus networks. It delivers wired connectivity with three integrated Gigabit Ethernet LAN/WAN ports, rich data link protocol support including Ethernet, Fast Ethernet, and Gigabit Ethernet, and advanced routing protocols such as OSPF, BGP, and EIGRP. With strong security features like IPSec, SSL, firewall protection, and VPN support, plus QoS, DMVPN, and MPLS, this Cisco router is ideal for converged services, voice, and collaborative applications across diverse global deployments.
Specification
| CISCO3945/K9 Specification | |
| Model | CISCO3945/K9 |
| Brand | Cisco |
| Product Type | Router |
| Form Factor | Desktop, modular, 3U |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | Cisco Unified Communications Manager Express sessions: 350; Cisco Unified SRST sessions: 1200 |
| Network / Transport Protocol | IPSec, PPPoE, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP, RMON |
| Encryption Algorithm | SSL |
| Key Features | Firewall protection, VPN support, MPLS support, Syslog support, content filtering, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) |
| LAN Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1ah, IEEE 802.1ag |
| DRAM Memory | 1 GB installed / 2 GB max |
| Flash Memory | 256 MB installed / 8 GB max |
| LED Indicators | Link activity, power |
| Router Interfaces | 3 x 10Base-T/100Base-TX/1000Base-T RJ-45; 1 x console RJ-45; 1 x console mini-USB Type B; 1 x auxiliary serial RJ-45; 2 x USB 2.0 Type A; 2 x SFP (mini-GBIC) |
| Expansion Slots | 4 x EHWIC; 4 x PVDM; 2 x CompactFlash Card (1 free); 1 x expansion slot; 4 x service module (SM) |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V, 47–63 Hz |
| Width | 47.6 cm (18.74 in) |
| Depth | 43.8 cm (17.24 in) |
| Height | 13.3 cm (5.24 in) |
| Package Weight | 21.84 kg (48.15 lb) |
| Compliance and Safety Standards | CISPR 22 Class A, CISPR 24, EN 55024, EN 55022 Class A, EN 50082-1, AS/NZS 60950-1, AS/NZS 3548 Class A, CAN/CSA-E60065-00, ICES-003 Class A, CS-03, FCC CFR47 Part 15, EN 300-386, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60065, BSMI CNS 13438 |
| IOS Software Included | Cisco IOS IP Base |
