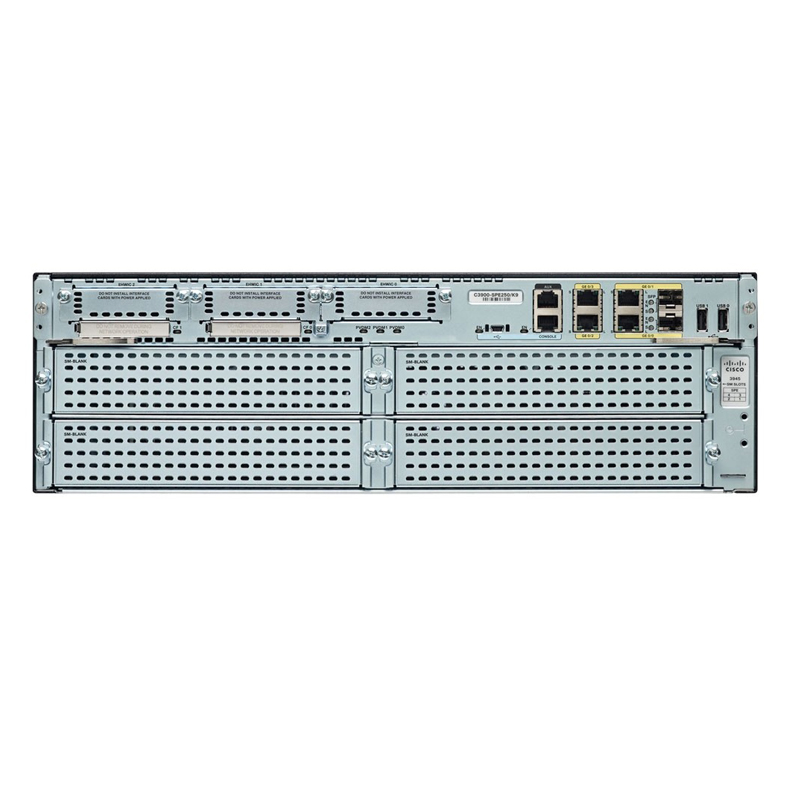

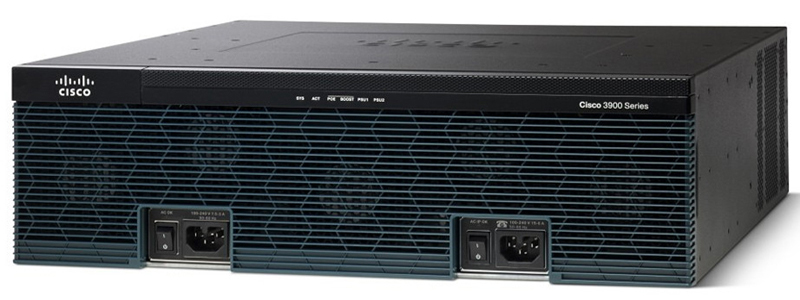

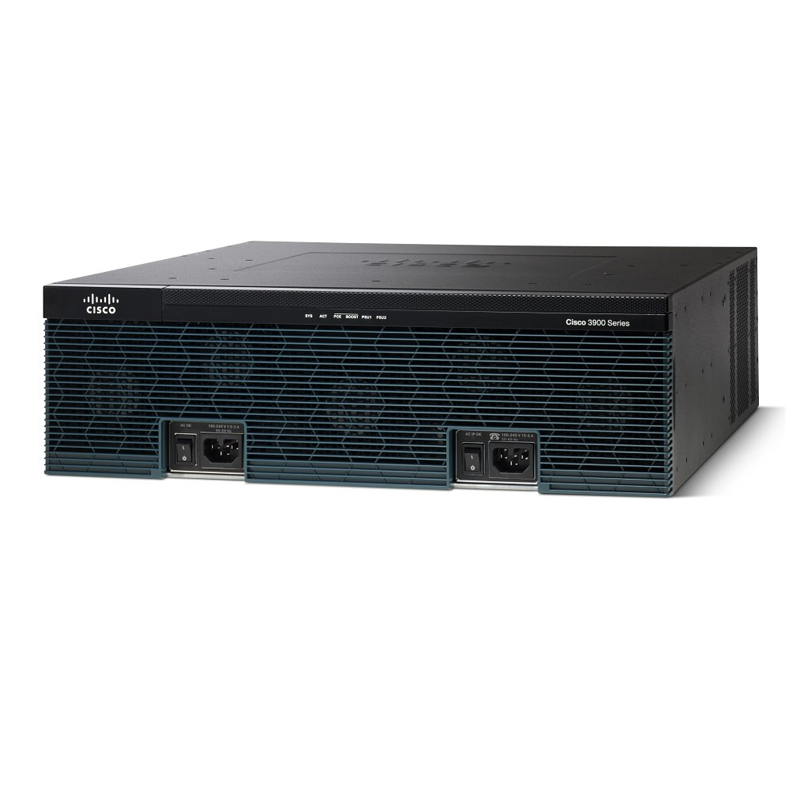

CISCO3945E/K9 Cisco 3945 Router, 4 GE, 3 EHWIC, 1 GB DRAM, IP Base
Model No.: CISCO3945E/K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * CISCO3945E/K9: Cisco 3945 Router with 4 onboard GE, C3900-SPE250/K9, 3 EHWIC slots, 3 DSP slots, 4 SM slots, 256MB CF default, 1 GB DRAM default, IP Base
The Cisco CISCO3945E/K9 is a high-performance enterprise router designed for demanding branch and campus networks. It delivers embedded hardware-based cryptography acceleration for IPSec and SSL, extensive unified communications support with up to 450 Cisco Unified CME and 1,500 SRST sessions, and flexible WAN/LAN connectivity through four 10/100/1000 ports plus dual SFP interfaces. With rich modularity, PoE-ready power options, and robust environmental resilience, it is ideal for secure converged voice, video, and data deployments across global enterprises and service providers.
Specification
| CISCO3945E/K9 Specification | |
| Model | CISCO3945E/K9 |
| Brand | Cisco |
| Embedded hardware-based cryptography acceleration (IPSec + SSL) | Yes |
| Cisco Unified Communications Manager Express sessions | 450 |
| Cisco Unified SRST sessions | 1500 |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 2 |
| Doublewide service-module slots | 1 |
| EHWIC slots | 3 |
| Doublewide EHWIC slots | 1 |
| Online insertion and removal (OIR) | Services modules |
| Onboard DSP (PVDM) slots | 3 |
| Memory DDR2 ECC DRAM (default) | 1 GB |
| Memory DDR2 ECC DRAM (maximum) | 2 GB |
| Compact Flash (external) default | Slot 0: 256 MB; Slot 1: None |
| Compact Flash (external) maximum | Slot 0: 4 GB; Slot 1: 4 GB |
| External USB 2.0 slots (Type A) | 2 |
| USB console port (Type B) | 1 (up to 115.2 kbps) |
| Serial console port | 1 (up to 115.2 kbps) |
| Serial auxiliary port | 1 (up to 115.2 kbps) |
| Power-supply options | Internal: AC, PoE, and DC* |
| Redundant power supply | Internal: AC, PoE, and DC* |
| AC input voltage | 100 to 240 VAC autoranging |
| Dimensions (H x W x D) | 5.25 x 17.25 x 18.75 in. (133.35 x 438.15 x 476.25 mm) |
| Rack height | 3 rack units (3RU) |
| Rack-mount 19 in. (48.3 cm) EIA | Included |
| Rack-mount 23 in. (58.4 cm) EIA | Optional |
| Wall-mount | No |
| Package weight | 51.85 lb (23.52 kg) |
| Weight with AC power supply (no modules) | 39 lb (17.7 kg) |
| Weight with PoE power supply (no modules) | 40 lb (18.1 kg) |
| Typical weight (with modules) | 60 lb (27.2 kg) |
| Airflow | Back to front |
