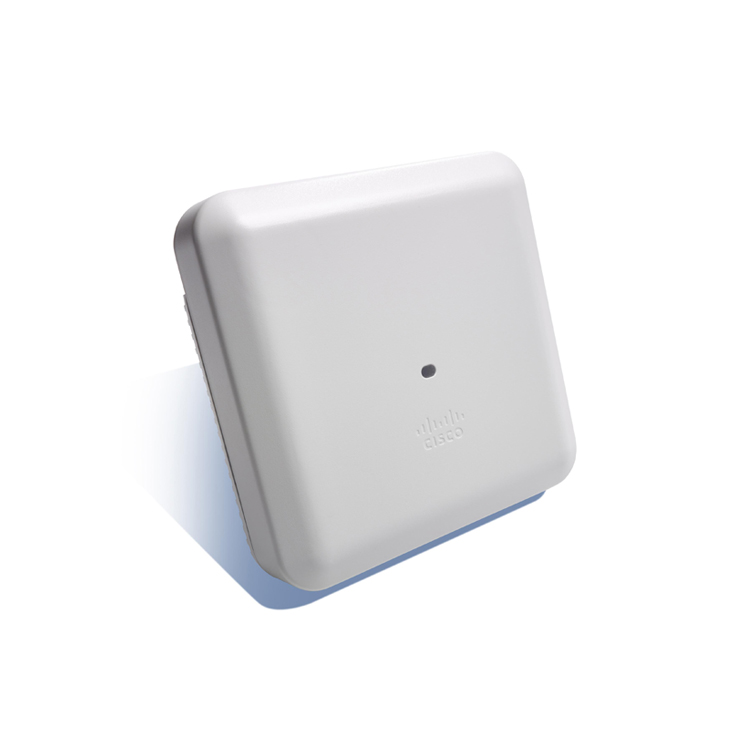

AIR-AP2802I-I-K9 Cisco Aironet 2800 Series Access Point, Internal Antenna, I Domain
Model No.: AIR-AP2802I-I-K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-AP2802I-I-K9: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Internal Antenna, 2xGbE, I Regulatory Domain
The Cisco AIR-AP2802I-I-K9 is an enterprise-class access point engineered to deliver robust wireless performance for modern business environments. The 2802i model leverages advanced 802.11ac Wave 2 technology to deliver superior access, making it ideal for high-density network scenarios. With the AIR-AP2802I-I-K9, users gain access to powerful features like 4x4 MU-MIMO and multi-gigabit support, ensuring the highest data throughput and reliability. Designed for seamless integration into Cisco's wireless ecosystem, the AIR-AP2802I-I-K9 access point supports comprehensive controller compatibility and offers secure, high-capacity connectivity to meet the evolving needs of today's enterprise wireless networks.
Specification
| AIR-AP2802I-I-K9 Specification | |
| Model | AIR-AP2802I-I-K9 |
| Brand | Cisco |
| Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later, Cisco IOS XE Software Release 16.3 |
| Supported Wireless LAN Controllers | Cisco 2500 Series, ISR G2 Module, WiSM2 for Catalyst® 6500, 5500 Series, Flex® 7500 Series, 8500 Series, Virtual Wireless Controller, Catalyst 3850, Catalyst 3650, Cisco Mobility Express |
| 802.11n Features | 4x4 MIMO with 3 spatial streams, maximal ratio combining (MRC), 802.11n and 802.11a/g beamforming, 20/40 MHz channels, PHY data rates up to 450 Mbps (40 MHz with 5 GHz), A-MPDU/A-MSDU (Tx/Rx), dynamic frequency selection (DFS), cyclic shift diversity (CSD) |
| 802.11ac Wave 1 Features | 4x4 MIMO with 3 spatial streams, MRC, 802.11ac beamforming, 20/40/80 MHz channels, PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz), A-MPDU/A-MSDU (Tx/Rx), DFS, CSD |
| 802.11ac Wave 2 Features | 4x4 MU-MIMO with 3 spatial streams, MRC, 802.11ac beamforming, 20/40/80/160 MHz channels, PHY data rates up to 5.2 Gbps, A-MPDU/A-MSDU (Tx/Rx), DFS, CSD |
| Integrated Antenna | Flexible radio (2.4 GHz: 4 dBi, omnidirectional; 5 GHz: 6 dBi, directional, 90° elevation beamwidth). Dedicated 5 GHz radio (5 dBi, omnidirectional) |
| External Antenna | 2802e Series supports external antennas up to 6 dBi (2.4 GHz and 5 GHz). Broad Cisco antenna options available for varied scenarios (see Cisco antennas) |
| Smart Antenna Connector | Available on 2802e only. Requires AIR-CAB002-DART-R= 2 ft cable to connect second antenna. Needed for dual 5 GHz or security radio configuration |
| Interfaces | 2x 100/1000BASE-T autosensing (RJ-45), management console port (RJ-45), USB 2.0 (enabled via future software) |
| Indicators | Status LED: boot loader, association, operation, warnings, errors |
| Dimensions (W x L x H) | 2802I: 8.66 x 8.68 x 2.17 in; 2802E: 8.66 x 8.77 x 2.50 in (without mounting brackets) |
| Input Power Requirements | 802.3at PoE+, Cisco Universal PoE (UPOE), 802.3at power injector (AIR-PWRINJ6=) |
| Power Draw | 26 W at PSE (all features except USB 2.0 enabled); 30 W at PSE (USB 2.0 enabled) |
| Environmental – 2802i | Storage temperature: -30°C to 70°C; operating: 0°C to 40°C; humidity: 10%–90% (noncondensing); operating altitude: 40°C, 9843 ft; storage altitude: 25°C, 15,000 ft |
| Environmental – 2802e | Storage temperature: -30°C to 70°C; operating: -20°C to 50°C; humidity: 10%–90% (noncondensing); operating altitude: 40°C, 9843 ft; storage altitude: 25°C, 15,000 ft |
| System Memory | 1024 MB DRAM, 256 MB flash |
Related Products
| Cisco Aironet 2800 Series Access Points | |
| Cisco Aironet 2800I Access Point: Indoor environments, with internal antennas | |
| AIR-AP2802I-x-K9 | Dual-band, controller-based 802.11a/g/n/ac |
| AIR-AP2802I-xK910 | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points |
| Cisco Aironet 2800I Access Point Configurable: Indoor environments, with internal antennas | |
| AIR-AP2802I-x-K9C | Dual-band, controller-based 802.11a/g/n/ac, configurable |
| AIR-AP2802I-xK910C | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable |
| Cisco Aironet 2800E Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP2802E-x-K9 | Dual-band controller-based 802.11a/g/n/ac |
| AIR-AP2802E-xK910 | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points |
| Cisco Aironet 2800E Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP2802E-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP2802E-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
