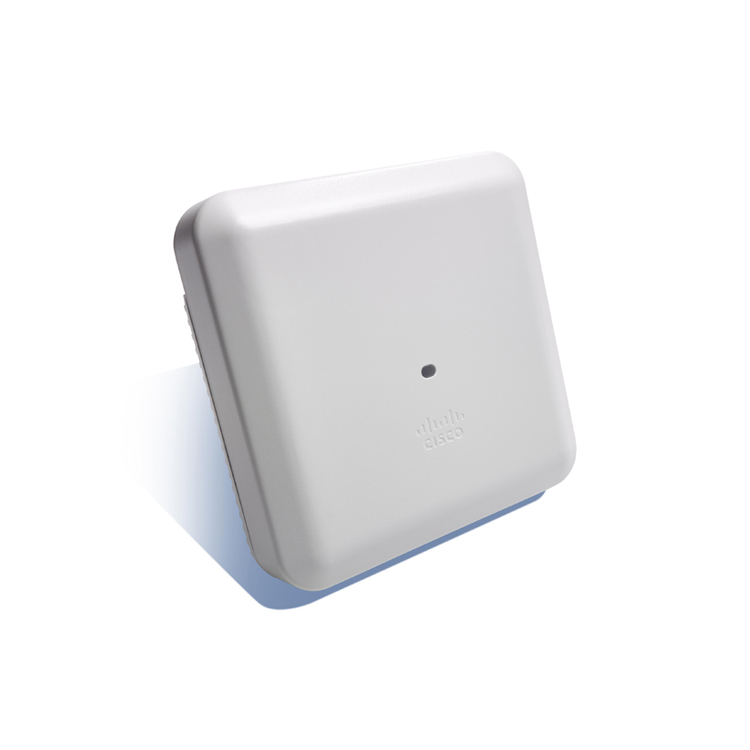

AIR-AP2802I-A-K9 Cisco Aironet 2800I Access Point, Internal Antenna, A Domain
Model No.: AIR-AP2802I-A-K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-AP2802I-A-K9: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Internal Antenna, 2xGbE, A Regulatory Domain
The Cisco AIR-AP2802I-A-K9 is an enterprise-grade 802.11ac Wave 2 access point designed for high-density wireless deployments. It supports 4x4 MU-MIMO with three spatial streams and delivers PHY data rates up to 5.2Gbps across 20-, 40-, 80-, and 160-MHz channels, ideal for modern office, campus, and hospitality networks. Flexible radio assignment, integrated antennas, and compatibility with Cisco wireless LAN controllers help distributors, integrators, and end users simplify rollout while maintaining consistent performance in Asia, Europe, Africa, and North America.
Specification
| AIR-AP2802I-A-K9 Specification | |
| Model | AIR-AP2802I-A-K9 |
| Brand | Cisco |
| Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later Cisco IOS XE Software Release 16.3 |
| Supported wireless LAN controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches Cisco Mobility Express |
| 802.11n version 2.0 (and related) capabilities | 4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450Mbps (40MHz with 5GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 dynamic frequency selection (DFS) Cyclic shift diversity (CSD) support |
| 802.11ac Wave 1 capabilities | 4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3Gbps (80MHz in 5GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support |
| 802.11ac Wave 2 capabilities | 4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80, 160-MHz channels PHY data rates up to 5.2Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support |
| Integrated antenna | Flexible radio (either 2.4GHz or 5GHz) 2.4GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth 5GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°Dedicated 5-GHz radio 5GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4GHz and 5GHz) Cisco offers the industry's broadest selection of antennas , delivering optimal coverage for a variety of deployment scenarios |
| Smart antenna connector | Available on the 2802e Series access points only Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio |
| Interfaces | 2x100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45) USB 2.0 (enabled via future software) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17”, 2802E: 8.66” x 8.77” x 2.50” |
| Input power requirements | 802.3at PoE+, Cisco Universal PoE (Cisco UPOE ® ) 802.3at power injector (AIR-PWRINJ6=) |
| Power draw | 26W at the PSE with all features enabled except for the USB 2.0 port 30W at the PSE with the USB 2.0 port enabled |
| System memory | 1024MB DRAM 256MB flash |
Related Products
| Cisco Aironet 2800 Series Access Points | |
| Cisco Aironet 2800I Access Point: Indoor environments, with internal antennas | |
| AIR-AP2802I-x-K9 | Dual-band, controller-based 802.11a/g/n/ac |
| AIR-AP2802I-xK910 | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points |
| Cisco Aironet 2800I Access Point Configurable: Indoor environments, with internal antennas | |
| AIR-AP2802I-x-K9C | Dual-band, controller-based 802.11a/g/n/ac, configurable |
| AIR-AP2802I-xK910C | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable |
| Cisco Aironet 2800E Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP2802E-x-K9 | Dual-band controller-based 802.11a/g/n/ac |
| AIR-AP2802E-xK910 | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points |
| Cisco Aironet 2800E Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP2802E-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP2802E-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
FAQ
Q: Is your product original?
A: Yes, our product is original, we only sells original product.
Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.
Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.
Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.
Q: If the product has quality problem, how to solve it?
A: If there is quality problem during warranty, you can ship back to get replacement or refund.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
