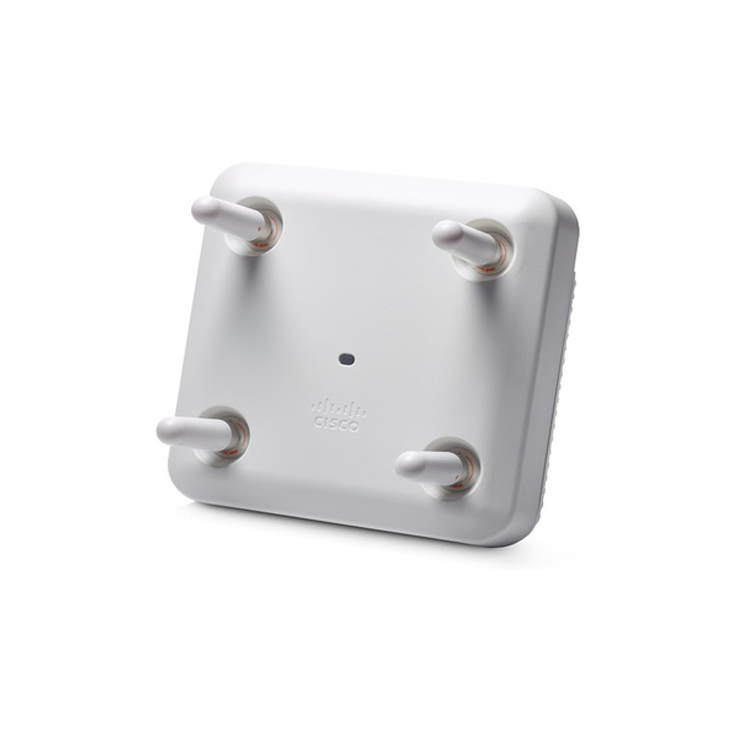

AIR-AP2802E-I-K9 Cisco 2800 Access Point, 802.11ac, 4x4:3, External Antenna, I Domain

Key Attributes:

Model No.: AIR-AP2802E-I-K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable

Product Details

* 100% Original New * AIR-AP2802E-I-K9: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, 2xGbE, I Regulatory Domain

The Cisco AIR-AP2802E-I-K9 is an enterprise-grade access point engineered for high-density deployments and robust wireless coverage. With advanced 802.11ac Wave 2 technology, the access solution supports up to 4x4 MU-MIMO functionality, ensuring optimal performance in business-critical applications. The 2802e model delivers ultra-fast speeds and exceptional flexibility using external antennas, making it an ideal choice for scalable network growth. Designed for demanding environments, the air-ap2802e-i-k9 bridges reliable connectivity and seamless access for organizations seeking secure, scalable wireless infrastructure.

Specification

AIR-AP2802E-I-K9 Specification
Model	AIR-AP2802E-I-K9
Brand	Cisco
Software	Cisco Unified Wireless Network Software Release 8.2.111.0 or later, Cisco IOS XE Software Release 16.3
Supported Wireless LAN Controllers	Cisco 2500 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, 5500 Series Wireless Controllers, Flex 7500 Series Wireless Controllers, 8500 Series Wireless Controllers, Virtual Wireless Controller, Cisco Catalyst 3850/3650 Series Switches, Cisco Mobility Express
802.11n v2.0 Capabilities	4x4 MIMO, 3 spatial streams, maximal ratio combining (MRC), beamforming (802.11n/802.11a/g), 20/40 MHz channels, PHY rates up to 450 Mbps (40 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU Tx/Rx), dynamic frequency selection (DFS), cyclic shift diversity (CSD)
802.11ac Wave 1 Capabilities	4x4 MIMO, 3 spatial streams, MRC, beamforming (802.11ac), 20/40/80 MHz channels, PHY rates up to 1.3 Gbps (80 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU Tx/Rx), DFS, CSD support
802.11ac Wave 2 Capabilities	4x4 MU-MIMO, 3 spatial streams, MRC, beamforming (802.11ac), 20/40/80/160 MHz channels, PHY rates up to 5.2 Gbps, packet aggregation (A-MPDU/A-MSDU Tx/Rx), DFS, CSD support
Integrated Antenna	Flexible radio: 2.4 GHz (4 dBi, internal, omnidirectional), 5 GHz (6 dBi, internal, directional, elevation beamwidth 90°); Dedicated 5 GHz radio: 5 GHz (5 dBi, internal, omnidirectional)
External Antenna	Supports antenna gains up to 6 dBi (2.4 GHz and 5 GHz). Broadest selection of Cisco antennas for diverse deployments (antenna sold separately).
Smart Antenna Connector	Available on 2802e series; requires AIR-CAB002-DART-R= 2 ft connector for second antenna. Required for flexible radio as second 5 GHz or Wireless Security Monitoring radio.
Interfaces	2 x 100/1000BASE-T autosensing (RJ-45), management console port (RJ-45), USB 2.0 (enabled via future software)
Indicators	Status LED: boot loader status, association status, operating status, warnings, errors
Dimensions (W x L x H)	2802I: 8.66 x 8.68 x 2.17 in; 2802E: 8.66 x 8.77 x 2.50 in (without mounting brackets)
Input Power Requirements	802.3at PoE+, Cisco Universal PoE (UPOE), or 802.3at power injector (AIR-PWRINJ6=)
Power Draw	26 W at PSE (all features except USB 2.0 enabled), 30 W at PSE (with USB 2.0 enabled)
Environmental (2802i)	Non-operating temp: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temp: 0°C to 40°C (32°F to 104°F); Humidity: 10% to 90% (noncondensing); Operating altitude: 40°C, 9,843 ft
Environmental (2802e)	Non-operating temp: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temp: -20°C to 50°C (-4°F to 122°F); Humidity: 10% to 90% (noncondensing); Operating altitude: 40°C, 9,843 ft
System Memory	1024 MB DRAM, 256 MB flash

Related Products

Cisco Aironet 2800 Series Access Points
Cisco Aironet 2800I Access Point: Indoor environments, with internal antennas
AIR-AP2802I-x-K9	Dual-band, controller-based 802.11a/g/n/ac
AIR-AP2802I-xK910	Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points

Cisco Aironet 2800I Access Point Configurable: Indoor environments, with internal antennas
AIR-AP2802I-x-K9C	Dual-band, controller-based 802.11a/g/n/ac, configurable
AIR-AP2802I-xK910C	Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable

Cisco Aironet 2800E Access Point: Indoor, challenging environments, with external antennas
AIR-AP2802E-x-K9	Dual-band controller-based 802.11a/g/n/ac
AIR-AP2802E-xK910	Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points

Cisco Aironet 2800E Access Point Configurable: Indoor, challenging environments, with external antennas
AIR-AP2802E-x-K9C	Dual-band controller-based 802.11a/g/n/ac, configurable
AIR-AP2802E-xK910C	Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable
Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries

FAQ

Q: Is your product original?
A: Yes, our product is original, we only sells original product.

Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.

Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.

Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.

Q: If the product has quality problem, how to solve it?
A: If there is quality problem during warranty, you can ship back to get replacement or refund.

Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
