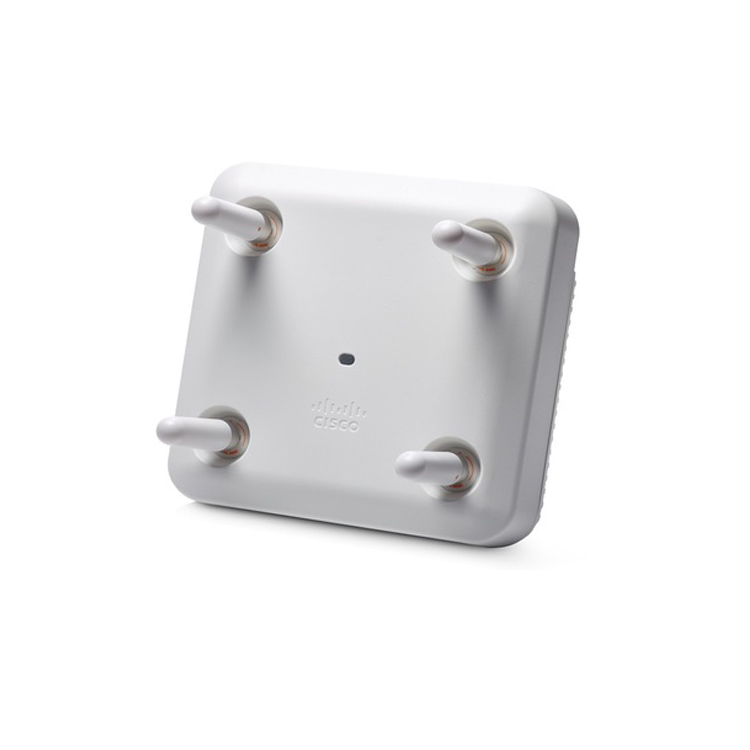

AIR-AP2802E-A-K9 Cisco 2802E Access Point, 802.11ac, 4x4:3, Indoor, External Antenna, A Domain
Model No.: AIR-AP2802E-A-K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-AP2802E-A-K9: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, 2xGbE, A Regulatory Domain
The Cisco AIR-AP2802E-A-K9 is an advanced enterprise-grade access point designed for secure, high-performance wireless connectivity. As part of the 2802e series, this access solution leverages 4x4 MU-MIMO technology to deliver optimal throughput and versatility. For organizations seeking robust access, the AIR-AP2802E-A-K9 offers exceptional scalability and seamless control with support for dual-frequency bands and flexible deployment options. Its 2802e architecture, equipped for demanding environments, makes it the preferred choice for IT professionals focused on expanding air-ap2802e-a-k9 wireless infrastructure.
Specification
| AIR-AP2802E-A-K9 Specification | |
| Model | AIR-AP2802E-A-K9 |
| Brand | Cisco |
| Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later; Cisco IOS XE Software Release 16.3 |
| Supported Wireless LAN Controllers | Cisco 2500/5500/7500/8500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco Virtual Wireless Controller, Cisco Catalyst 3850/3650 Switches, Cisco Mobility Express |
| 802.11n Capabilities | 4x4 MIMO, three spatial streams, maximal ratio combining (MRC), 802.11n/a/g beamforming, 20/40 MHz channels, PHY data rates up to 450 Mbps (40 MHz at 5 GHz), A-MPDU/A-MSDU (Tx/Rx), DFS, cyclic shift diversity (CSD) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80 MHz channels, PHY data rates up to 1.3 Gbps (80 MHz at 5 GHz), A-MPDU/A-MSDU (Tx/Rx), DFS, CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80/160 MHz channels, PHY data rates up to 5.2 Gbps, A-MPDU/A-MSDU (Tx/Rx), DFS, CSD support |
| Integrated Antenna | Flexible radio (2.4 GHz, 4 dBi gain, internal omnidirectional; 5 GHz, 6 dBi gain, directional, 90° elevation beamwidth), dedicated 5 GHz radio (5 dBi gain, internal omnidirectional) |
| External Antenna | Supports antennas up to 6 dBi (2.4 GHz/5 GHz); wide selection available from Cisco for different coverage needs (Cisco antennas) |
| Smart Antenna Connector | Available on 2802e Series; requires AIR-CAB002-DART-R= (2 ft) to connect a second antenna; needed for flexible radio as second 5 GHz or as Security Monitoring radio |
| Interfaces | 2 x 100/1000BASE-T autosensing (RJ-45), management console port (RJ-45), USB 2.0 (enabled via future software) |
| Indicators | Status LED for boot loader status, association status, operation, warnings, errors |
| Dimensions (W x L x H) | 2802I: 8.66 × 8.68 × 2.17 in; 2802E: 8.66 × 8.77 × 2.50 in (without mounting brackets) |
| Input Power Requirements | 802.3at PoE+, Cisco Universal PoE (UPOE), or 802.3at injector (AIR-PWRINJ6=) |
| Power Draw | 26 W at the PSE (all features except USB 2.0); 30 W at the PSE (with USB 2.0 enabled) |
| Environmental (2802i) | Storage temperature: -30°C to 70°C; Storage altitude: 15,000 ft at 25°C; Operating temperature: 0° to 40°C; Humidity: 10%–90% (noncondensing); Operating altitude: 9,843 ft at 40°C |
| Environmental (2802e) | Storage temperature: -30°C to 70°C; Storage altitude: 15,000 ft at 25°C; Operating temperature: -20° to 50°C; Humidity: 10%–90% (noncondensing); Operating altitude: 9,843 ft at 40°C |
| System Memory | 1024 MB DRAM; 256 MB flash |
Related Products
| Cisco Aironet 2800 Series Access Points | |
| Cisco Aironet 2800I Access Point: Indoor environments, with internal antennas | |
| AIR-AP2802I-x-K9 | Dual-band, controller-based 802.11a/g/n/ac |
| AIR-AP2802I-xK910 | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points |
| Cisco Aironet 2800I Access Point Configurable: Indoor environments, with internal antennas | |
| AIR-AP2802I-x-K9C | Dual-band, controller-based 802.11a/g/n/ac, configurable |
| AIR-AP2802I-xK910C | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable |
| Cisco Aironet 2800E Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP2802E-x-K9 | Dual-band controller-based 802.11a/g/n/ac |
| AIR-AP2802E-xK910 | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points |
| Cisco Aironet 2800E Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP2802E-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP2802E-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
