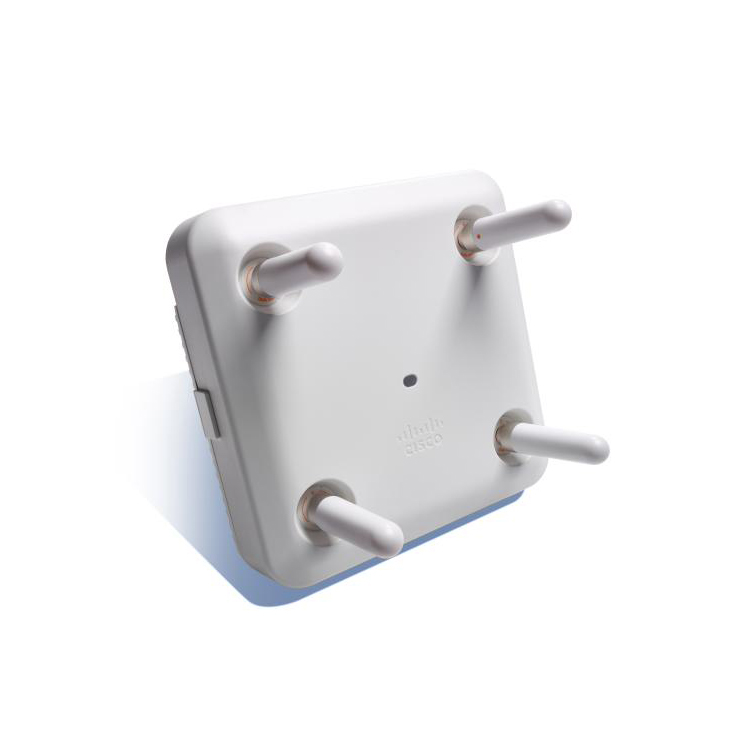

AIR-AP2802E-E-K9C Cisco Aironet 2800E Access Point Configurable, Indoor, External Antenna, E Domain
Model No.: AIR-AP2802E-E-K9C
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-AP2802E-E-K9C: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, External Antenna, E Regulatory Domain, Configurable
Cisco’s AIR-AP2802E-E-K9C is an advanced enterprise-class access point engineered for high-density network environments. As a core component of Cisco’s 2802e series, this access solution leverages 802.11ac Wave 2 technology for exceptional wireless performance, ensuring reliable connectivity even in challenging spaces. The air-ap2802e-e-k9c offers industry-leading features such as flexible antenna options, MU-MIMO support, and robust smart antenna connectors. Designed to seamlessly fit within scalable wireless networks, the 2802e delivers secure, reliable enterprise-grade wireless access for growing data demands.
Specification
| AIR-AP2802E-E-K9C Specification | |
| Model | AIR-AP2802E-E-K9C |
| Brand | Cisco |
| Description | 802.11ac Wave 2 AP with CleanAir, 4x4:3, external antenna, E regulatory domain, configurable |
| Frequency Band and 20-MHz Operating Channels | E (E regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) |
| Software | Cisco Unified Wireless Network Software Release 8.2.111.0 or later Cisco IOS XE Software Release 16.3 |
| Supported Wireless LAN Controllers | Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches, Cisco Mobility Express |
| 802.11n Version 2.0 Features | 4x4 MIMO with three spatial streams Maximal ratio combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 450 Mbps (40 MHz with 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS Cyclic shift diversity (CSD) support |
| 802.11ac Wave 1 Features | 4x4 MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, and 80-MHz channels PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support |
| 802.11ac Wave 2 Features | 4x4 MU-MIMO with three spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, 160-MHz channels PHY data rates up to 5.2 Gbps Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) 802.11 DFS CSD support |
| Integrated Antenna | Flexible radio (either 2.4 GHz or 5 GHz) 2.4 GHz: gain 4 dBi, internal, omnidirectional in azimuth 5 GHz: gain 6 dBi, internal, directional, elevation plane beamwidth 90° Dedicated 5 GHz radio: gain 5 dBi, internal, omnidirectional in azimuth |
| External Antenna | 2802e Series certified for antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers a broad selection of antennas for various deployment scenarios |
| Smart Antenna Connector | Available only on 2802e Series Requires AIR-CAB002-DART-R= 2 ft connector to RP-TNC to connect second antenna Needed when using flexible radio as a second 5 GHz serving radio or for Wireless Security Monitoring |
| Interfaces | 2 x 100/1000BASE-T autosensing (RJ-45) Management console port (RJ-45) USB 2.0 (enabled by future software) |
| Indicators | Status LED for boot loader, association, and operating status, warnings, and errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): 2802I: 8.66 in x 8.68 in x 2.17 in 2802E: 8.66 in x 8.77 in x 2.50 in |
| Input Power Requirements | 802.3at PoE+ Cisco Universal PoE (UPOE®) 802.3at power injector (AIR-PWRINJ6=) |
| Power Draw | 26 W at the PSE, all features enabled except USB 2.0 port 30 W at the PSE with USB 2.0 port enabled |
| Environmental | Cisco Aironet 2802i: Storage temp: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft Operating temp: 0°C to 40°C (32°F to 104°F); Humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9843 ft Cisco Aironet 2802e: Storage temp: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft Operating temp: -20°C to 50°C (-4°F to 122°F); Humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9843 ft |
| System Memory | 1024 MB DRAM 256 MB flash |
Related Products
| Cisco Aironet 2800 Series Access Points | |
| Cisco Aironet 2800I Access Point: Indoor environments, with internal antennas | |
| AIR-AP2802I-x-K9 | Dual-band, controller-based 802.11a/g/n/ac |
| AIR-AP2802I-xK910 | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points |
| Cisco Aironet 2800I Access Point Configurable: Indoor environments, with internal antennas | |
| AIR-AP2802I-x-K9C | Dual-band, controller-based 802.11a/g/n/ac, configurable |
| AIR-AP2802I-xK910C | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable |
| Cisco Aironet 2800E Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP2802E-x-K9 | Dual-band controller-based 802.11a/g/n/ac |
| AIR-AP2802E-xK910 | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points |
| Cisco Aironet 2800E Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP2802E-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP2802E-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
