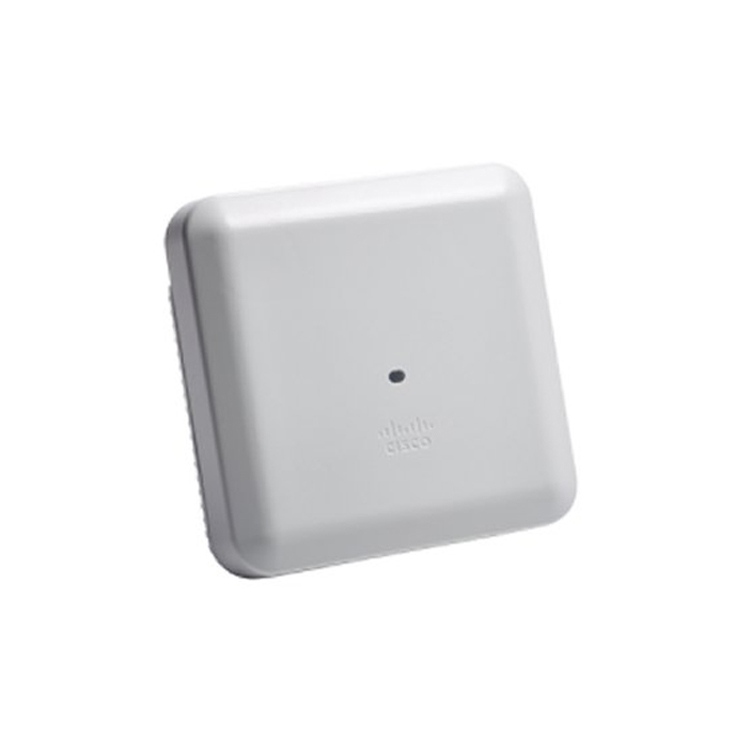

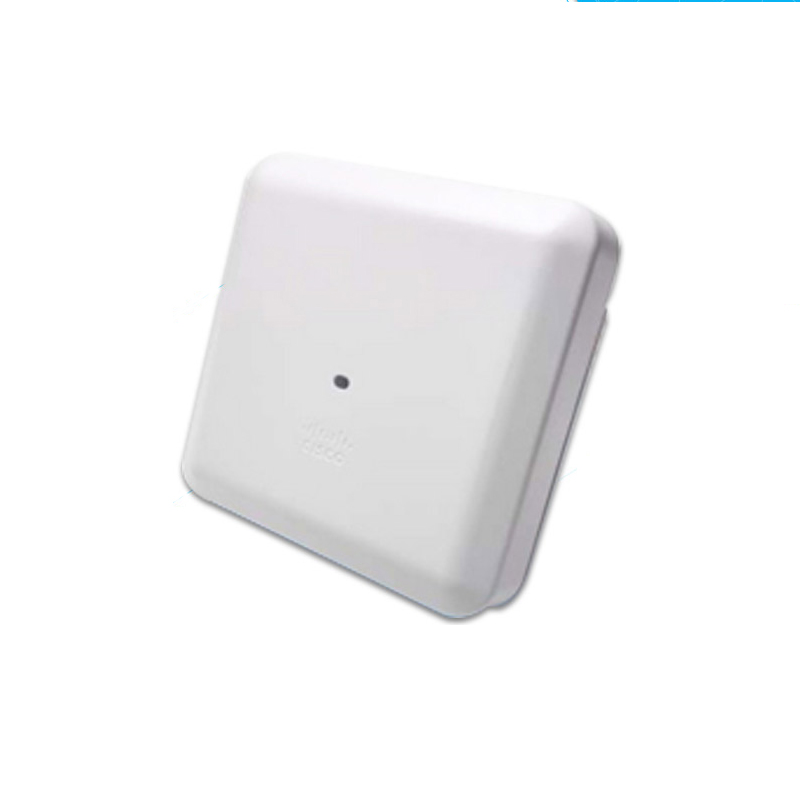

AIR-AP3802I-A-K9C Cisco 3802I Access Point, 802.11ac, Wave 2, 4x4:3 MIMO, Internal Antenna, A Domain, Configurable
Model No.: AIR-AP3802I-A-K9C
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-AP3802I-A-K9C: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, Internal Antenna, mGig, A Regulatory Domain, Configurable
Cisco offers the AIR-AP3802I-A-K9C as a premier enterprise-class access point solution. With robust performance, the 3802i delivers seamless access for growing wireless environments, supporting advanced MU-MIMO for dense client scenarios. For organizations prioritizing reliable connectivity, this access point is engineered to provide powerful air-ap3802i-a-k9c coverage, easy integration, and optimized data throughput. Whether upgrading infrastructure or expanding capacity, the 3802i is a trusted access choice for future-ready networks.
Specification
| AIR-AP3802I-A-K9C Specification | |
| Model | AIR-AP3802I-A-K9C |
| Brand | Cisco |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500 Series Wireless Controllers; Cisco Wireless Controller Module for ISR G2; Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches; Cisco 5500 Series Wireless Controllers; Cisco Flex® 7500 Series Wireless Controllers; Cisco 8500 Series Wireless Controllers; Cisco Virtual Wireless Controller; Cisco IOS® XE Software Release 16.3 (Target Q3 CY2016); Cisco Catalyst 3850 Series and 3650 Series Switches |
| 802.11n Version 2.0 and Related Capabilities | 4x4 MIMO, 3 spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g beamforming; 20/40 MHz channels; PHY rates up to 450 Mbps (40 MHz, 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; Cyclic Shift Diversity (CSD) support |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO, 3 spatial streams; MRC; 802.11ac beamforming; 20/40/80 MHz channels; PHY rates up to 1.3 Gbps (80 MHz, 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO, 3 spatial streams; MRC; 802.11ac beamforming; 20/40/80/160 MHz channels; PHY rates up to 5.2 Gbps; Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| Integrated Antenna | Flexible radio (2.4 GHz: 4 dBi, internal, omnidirectional; 5 GHz: 6 dBi, internal, directional, 90° elevation); Dedicated 5 GHz radio (5 dBi, internal, omnidirectional) |
| External Antenna (Sold Separately) | 3802e Series: Certified up to 6 dBi (2.4/5 GHz); 3802p Series: Certified up to 13 dBi (2.4/5 GHz) with AIR-ANT2513-P4M-N= antenna; Cisco offers a broad antenna selection for various deployment scenarios |
| Smart Antenna Connector | Available only on 3802e/3802p; Requires AIR-CAB002-DART-R= (2 ft) connector to RP-TNC; Needed when flexible radio is used as second 5 GHz serving radio or Wireless Security Monitoring radio |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45; IEEE 802.3bz); CAT 5e cabling; 10GBASE-T (CAT 6/6a) cabling; 100/1000BASE-T autosensing (RJ-45 AUX port); Management console port (RJ-45) |
| Indicators | Status LED (boot loader status, association status, operating state, warnings and errors) |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) (excluding mounting brackets) |
| Input Power Requirements | 802.3at PoE+; Cisco Universal Power over Ethernet (UPOE®); 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=) |
| Power Draw | 30W at PSE (all features enabled, USB 2.0 port disabled); 34W at PSE (USB 2.0 port enabled) |
| Environmental | 3800i: Storage temp -30°C to 70°C; Operating temp 0°C to 40°C; Humidity 10% to 90% noncondensing; Operating altitude up to 3000 m 3800e/3800p: Storage temp -30°C to 70°C; Operating temp -20°C to 50°C; Humidity 10% to 90% noncondensing; Operating altitude up to 3000 m |
| System Memory | 1024 MB DRAM; 256 MB flash |
Related Products
| Cisco Aironet 3800 Series Access Points | |
| Cisco Aironet 3800I Access Point: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9 | Dual-band, controller-based 802.11a/b/g/n/ac |
| AIR-AP3802I-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac) 10 quantity access points |
| Cisco Aironet 3800I Access Point Configurable: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9C | Dual-band, controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802I-xK910C | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable |
| Cisco Aironet 3800E Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802E-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800e Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802E-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Cisco Aironet 3800p Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802P-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800P Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802P-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
FAQ
Q: Is your product original?
A: Yes, our product is original, we only sells original product.
Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.
Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.
Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.
Q: If the product has quality problem, how to solve it?
A: If there is quality problem during warranty, you can ship back to get replacement or refund.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
