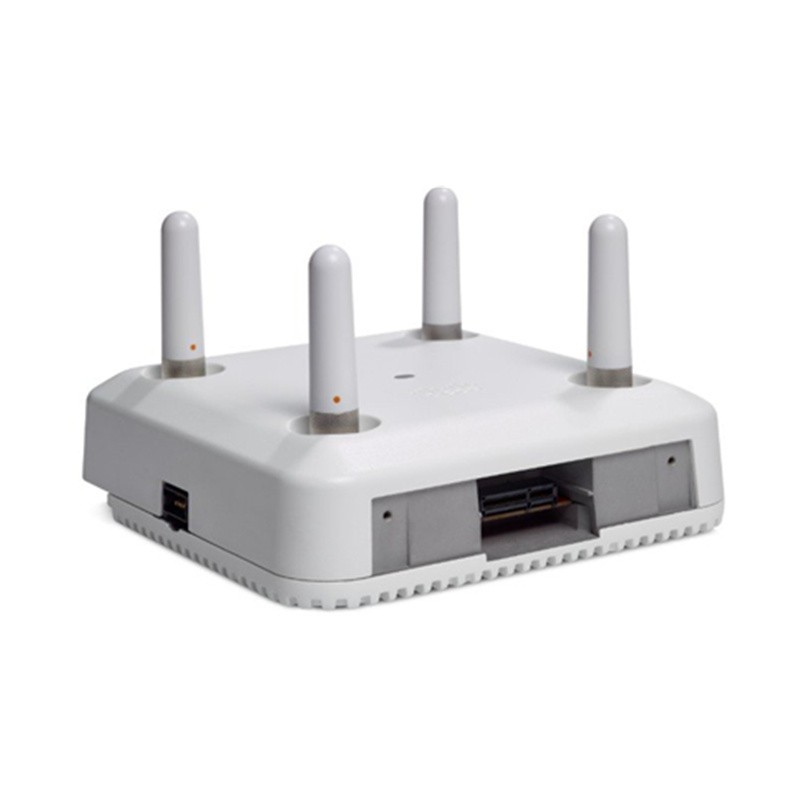

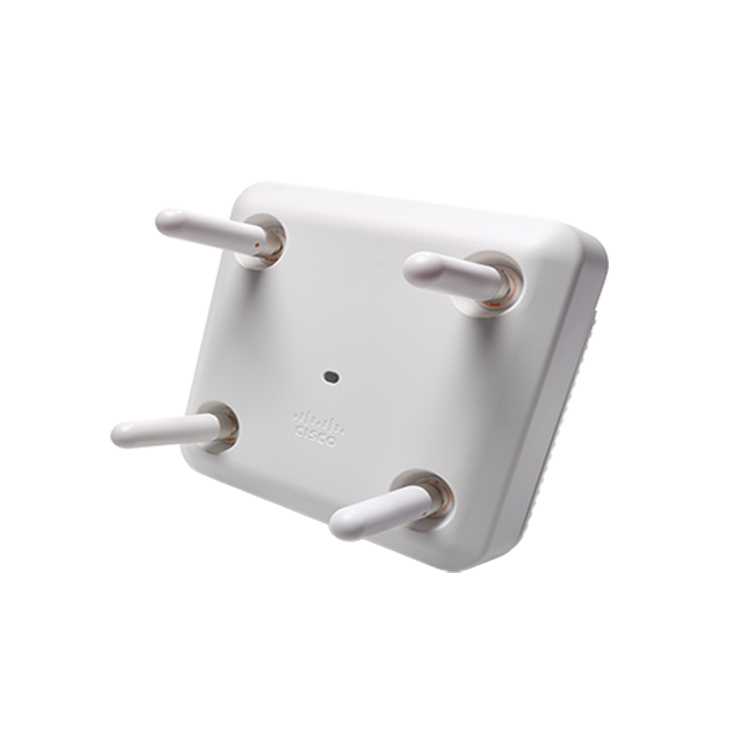

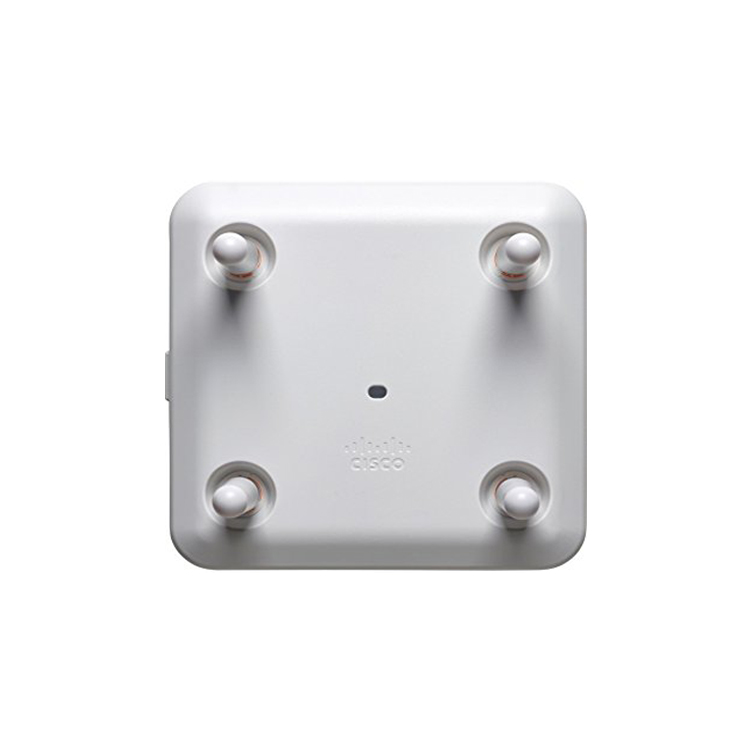

AIR-AP3802E-E-K9 Cisco Aironet 3800 Series Access Point, Indoor, External Antenna, E Domain
Model No.: AIR-AP3802E-E-K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-AP3802E-E-K9: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain
Cisco's AIR-AP3802E-E-K9 is an enterprise-grade access point engineered for advanced wireless deployment. With its robust 802.11ac Wave 2 capabilities, the access experience delivered by this model stands out in dense network environments, ensuring high-speed and stable connectivity. The 3802e design excels in modular flexibility, supports external antennas, and maximizes Multigigabit Ethernet throughput. For organizations needing exceptional wireless integrity, the AIR-AP3802E-E-K9 is a leading solution for seamless integration and high-capacity performance, making air-ap3802e-e-k9 a solid choice for next-generation wireless networking.
Specification
| AIR-AP3802E-E-K9 Specification | |
| Model | AIR-AP3802E-E-K9 |
| Brand | Cisco |
| Description | 802.11ac Wave 2 access point with CleanAir, 4x4:3 MIMO, modular design, external antenna support, Multigigabit Ethernet, E regulatory domain |
| Regulatory Domain | E domain: 2.412–2.472 GHz (13 channels); 5.180–5.320 GHz (8 channels); 5.500–5.700 GHz (8 channels, excludes 5.600–5.640 GHz) |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500, 5500, 8500 Series Wireless Controllers; Wireless Controller Module for ISR G2; WiSM2 for Catalyst 6500; Flex 7500 Series Controllers; Virtual Wireless Controller; IOS XE Release 16.3 or later; Catalyst 3850/3650 Switches |
| 802.11n Version 2.0 Capabilities | 4x4 MIMO, three spatial streams, maximal ratio combining (MRC), 802.11n/a/g beamforming, 20/40 MHz channels, PHY rates up to 450 Mbps (40 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU), DFS, cyclic shift diversity (CSD) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80 MHz channels, PHY rates up to 1.3 Gbps (80 MHz, 5 GHz), packet aggregation (A-MPDU/A-MSDU), DFS, CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80/160 MHz channels, PHY rates up to 5.2 Gbps, packet aggregation (A-MPDU/A-MSDU), DFS, CSD support |
| Integrated Antenna | Flexible radio: 2.4 GHz (4 dBi, internal, omnidirectional), 5 GHz (6 dBi, internal directional, 90° elevation beamwidth); Dedicated 5 GHz radio: 5 dBi, internal, omnidirectional |
| External Antenna Support | 3802e: up to 6 dBi (2.4 and 5 GHz); 3802p: up to 13 dBi with AIR-ANT2513-P4M-N=; Wide selection of Cisco antennas available for different coverage needs |
| Smart Antenna Connector | 3802e/3802p only; uses AIR-CAB002-DART-R= 2 ft cable for connection to RP-TNC; required for second 5 GHz radio or wireless security monitoring radio |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz); CAT 5e or higher cables recommended; 100/1000BASE-T autosensing AUX port; RJ-45 management console |
| Indicators | Status LED for boot loader status, association, operating status, warnings and errors |
| Dimensions (W x L x H) | Without brackets: 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) |
| Input Power Requirements | 802.3at PoE+, Cisco UPOE; 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=) |
| Power Draw | 30W at PSE (all features except USB 2.0); 34W at PSE (USB 2.0 enabled) |
| Environmental (3800i/3800e/3800p) | Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Storage altitude: 25°C, 15,000 ft; 3800i operating: 32° to 104°F (0° to 40°C), 10–90% humidity, 40°C, 9843 ft altitude 3800e/p operating: -4° to 122°F (-20° to 50°C), 10–90% humidity, 40°C, 9843 ft altitude |
| System Memory | 1024 MB DRAM, 256 MB flash |
Related Products
| Cisco Aironet 3800 Series Access Points | |
| Cisco Aironet 3800I Access Point: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9 | Dual-band, controller-based 802.11a/b/g/n/ac |
| AIR-AP3802I-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac) 10 quantity access points |
| Cisco Aironet 3800I Access Point Configurable: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9C | Dual-band, controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802I-xK910C | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable |
| Cisco Aironet 3800E Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802E-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800e Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802E-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Cisco Aironet 3800p Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802P-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800P Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802P-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
