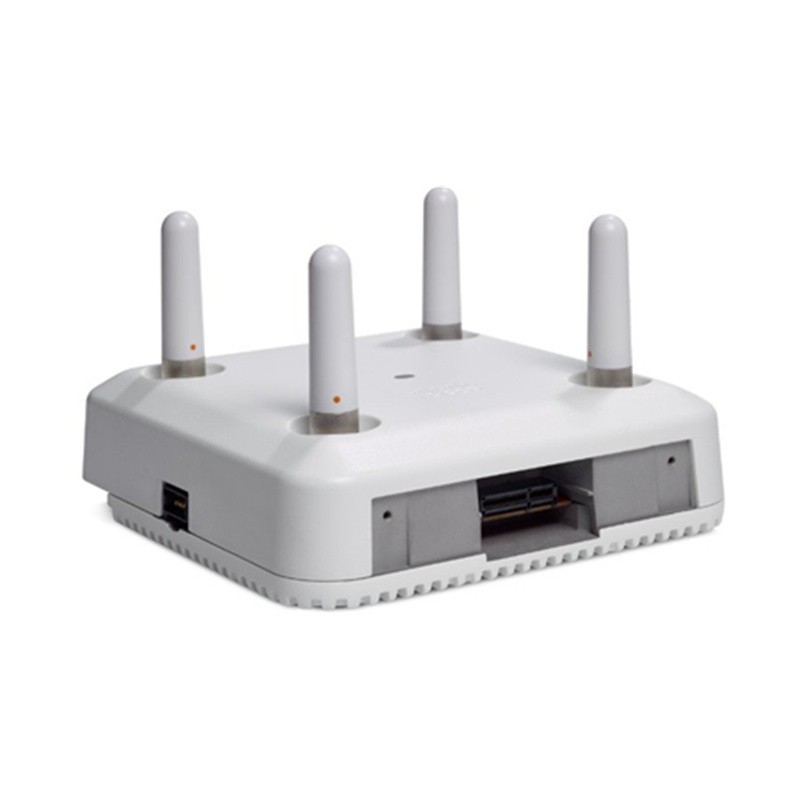

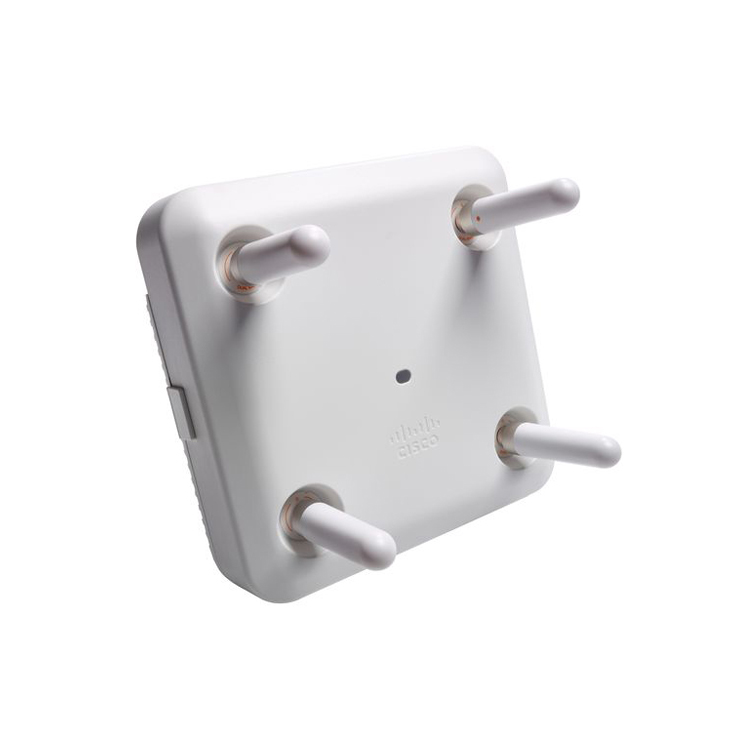

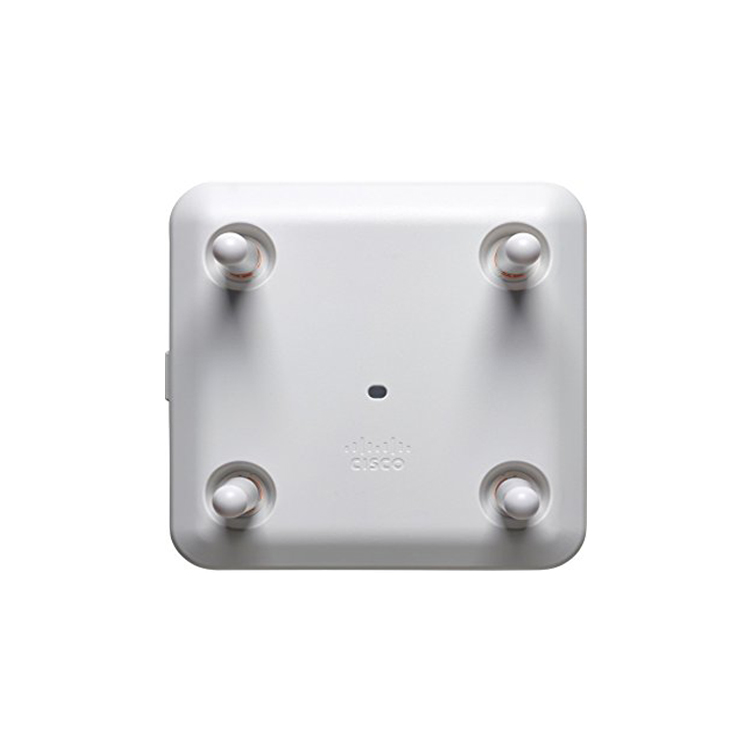

AIR-AP3802E-H-K9 Cisco Aironet 3800E Access Point, 802.11ac, 4x4:3 MU-MIMO, Indoor, External Antenna, H Domain
Model No.: AIR-AP3802E-H-K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-AP3802E-H-K9: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, H Regulatory Domain
Cisco AIR-AP3802E-H-K9 is an enterprise-class access point designed to deliver high-performance wireless connectivity for modern business environments. With advanced 802.11ac Wave 2 technology, the 3802e access point ensures robust, scalable network coverage suited for demanding deployments. The air-ap3802e-h-k9 platform features multigigabit Ethernet support and flexible antenna configurations, making it ideal for high-density and mission-critical network applications, while maintaining optimal reliability and seamless integration within Cisco Unified Wireless solutions.
Specification
| AIR-AP3802E-H-K9 Specification | |
| Model | AIR-AP3802E-H-K9 |
| Brand | Cisco |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, 5500 Series Wireless Controllers, Flex® 7500 Series Wireless Controllers, 8500 Series Wireless Controllers, Virtual Wireless Controller; Cisco IOS® XE Software Release 16.3 – Target Q3 CY2016; Catalyst 3850 Series and 3650 Series Switches |
| 802.11n Version 2.0 Capabilities | 4x4 MIMO with 3 spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 450 Mbps (40 MHz with 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; Cyclic Shift Diversity (CSD) support |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with 3 spatial streams; MRC; 802.11ac beamforming; 20-, 40-, and 80-MHz channels; PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz); Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with 3 spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, 160-MHz channels; PHY data rates up to 5.2 Gbps; Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx); 802.11 DFS; CSD support |
| Integrated Antenna | Flexible radio (2.4 GHz or 5 GHz): 2.4 GHz, 4 dBi, internal antenna, omnidirectional in azimuth; 5 GHz, 6 dBi, internal directional antenna, elevation beamwidth 90° Dedicated 5 GHz radio: 5 GHz, 5 dBi, internal antenna, omnidirectional in azimuth |
| External Antenna (Sold Separately) | 3802e Series access points certified for antenna gains up to 6 dBi (2.4 GHz and 5 GHz); 3802p Series certified for gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna; Wide selection of Cisco antennas for varied deployment scenarios |
| Smart Antenna Connector | Available on 3802e and 3802p Series access points; Requires AIR-CAB002-DART-R= (2 ft smart antenna cable) to connect second antenna to access point; Required when running flexible radio as second 5-GHz serving radio or Wireless Security Monitoring radio |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz; CAT 5e cabling; 10GBASE-T (CAT 6/6a) cabling; 100/1000BASE-T autosensing (RJ-45 - AUX port); Management console port (RJ-45) |
| Indicators | Status LED for boot loader status, association status, operating status, boot loader warnings, and errors |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm); 3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) |
| Input Power Requirements | 802.3at PoE+, Cisco Universal Power over Ethernet (UPOE®); 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=) |
| Power Draw | 30W at the PSE with all features enabled except USB 2.0 port; 34W at the PSE with USB 2.0 port enabled |
| Environmental (3800i) | Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temperature: 0°C to 40°C (32°F to 104°F); Operating humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9,843 ft |
| Environmental (3800e) | Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temperature: -20°C to 50°C (-4°F to 122°F); Operating humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9,843 ft |
| Environmental (3800p) | Storage temperature: -30°C to 70°C (-22°F to 158°F); Storage altitude: 25°C, 15,000 ft; Operating temperature: -20°C to 50°C (-4°F to 122°F); Operating humidity: 10% to 90% (non-condensing); Operating altitude: 40°C, 9,843 ft |
| System Memory | 1024 MB DRAM, 256 MB flash |
Related Products
| Cisco Aironet 3800 Series Access Points | |
| Cisco Aironet 3800I Access Point: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9 | Dual-band, controller-based 802.11a/b/g/n/ac |
| AIR-AP3802I-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac) 10 quantity access points |
| Cisco Aironet 3800I Access Point Configurable: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9C | Dual-band, controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802I-xK910C | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable |
| Cisco Aironet 3800E Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802E-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800e Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802E-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Cisco Aironet 3800p Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802P-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800P Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802P-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
