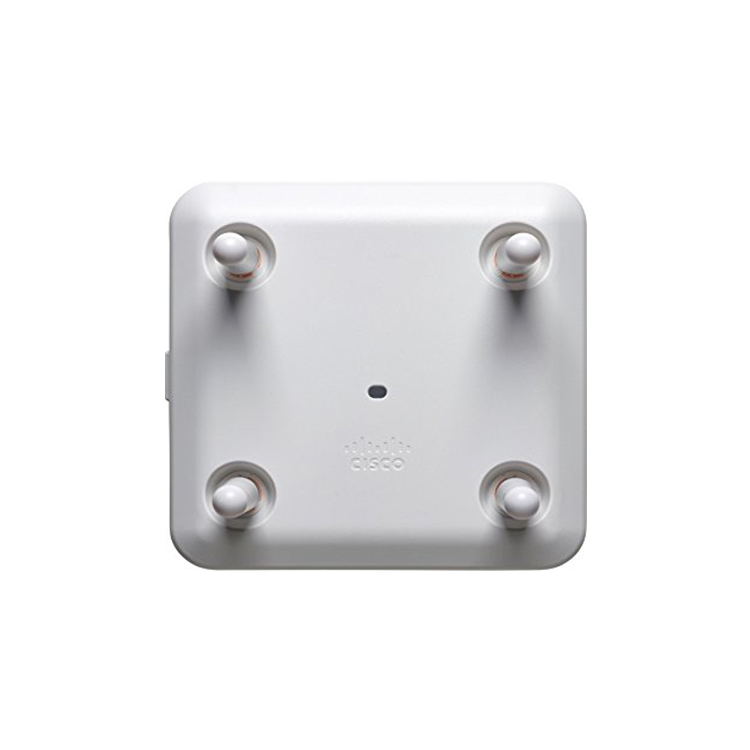

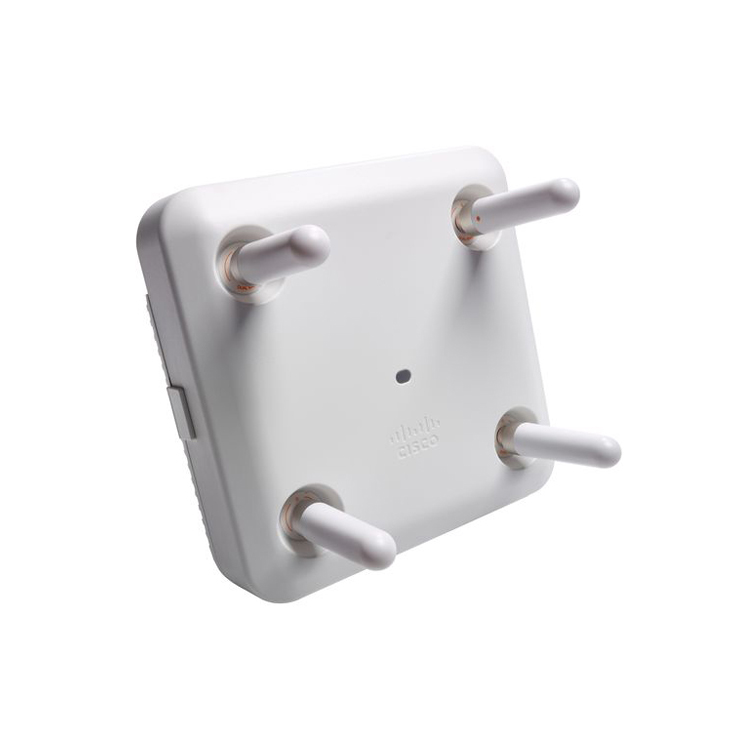

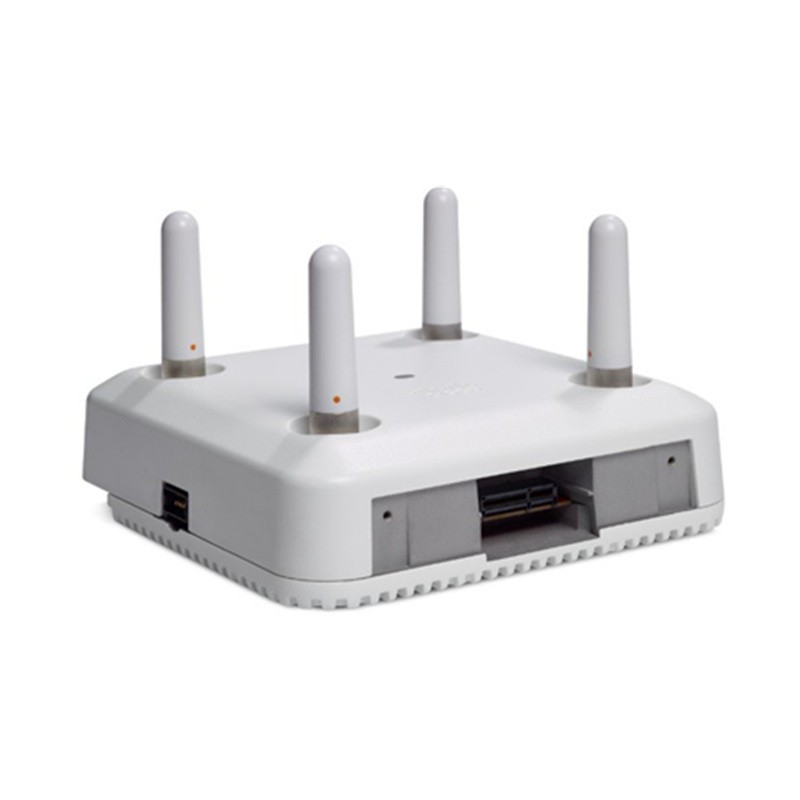

AIR-AP3802E-E-K9C Cisco 3802E Access Point, External Antenna, E Domain, Configurable
Model No.: AIR-AP3802E-E-K9C
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-AP3802E-E-K9C: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain, Configurable
The Cisco AIR-AP3802E-E-K9C is an advanced enterprise-grade access point tailored for high-density network environments, delivering exceptional Wi-Fi performance and reliability. The 3802e uses the latest 802.11ac Wave 2 standard and features flexible access management to support business-critical applications. Its air-ap3802e-e-k9c modular hardware supports external antennas for versatile deployment, providing superior coverage and seamless wireless access in enterprise scenarios.
Specification
| AIR-AP3802E-E-K9C Specification | |
| Model | AIR-AP3802E-E-K9C |
| Brand | Cisco |
| Description | 802.11ac Wave 2 access point with CleanAir, 4x4:3, modular design, external antenna, multigigabit, E regulatory domain, configurable |
| Regulatory Domain | E (E regulatory domain): 2.412–2.472 GHz, 13 channels; 5.180–5.320 GHz, 8 channels; 5.500–5.700 GHz, 8 channels (excludes 5.600–5.640 GHz) |
| Software & Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2MR1 or later; Supported controllers: Cisco 2500, 5500, 8500, Flex 7500, Virtual Wireless Controller, Wireless Controller Module for ISR G2, WiSM2 for Catalyst 6500, Catalyst 3850 & 3650 Series Switches; Cisco IOS XE Release 16.3 or later |
| 802.11n v2.0 Capabilities | 4x4 MIMO, three spatial streams, maximal ratio combining (MRC), 802.11n and 802.11a/g beamforming, 20/40 MHz channels, up to 450 Mbps (40 MHz @ 5 GHz), A-MPDU/A-MSDU aggregation, DFS, cyclic shift diversity (CSD) support |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80 MHz channels, up to 1.3 Gbps (80 MHz @ 5 GHz), A-MPDU/A-MSDU aggregation, DFS, CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO, three spatial streams, MRC, 802.11ac beamforming, 20/40/80/160 MHz channels, up to 5.2 Gbps, A-MPDU/A-MSDU aggregation, DFS, CSD support |
| Integrated Antenna | Flexible radio: 2.4 GHz or 5 GHz; 2.4 GHz, 4 dBi, internal omnidirectional; 5 GHz, 6 dBi, internal directional (elevation beamwidth 90°); dedicated 5 GHz radio: 5 dBi, internal omnidirectional |
| External Antenna | Certified for antennas up to 6 dBi (2.4/5 GHz) for 3802e; up to 13 dBi (2.4/5 GHz) for 3802p with AIR-ANT2513-P4M-N=; broad Cisco antenna portfolio for flexible coverage |
| Smart Antenna Connector | Available on 3802e and 3802p; requires AIR-CAB002-DART-R= (2 ft) to RP-TNC; required for second 5 GHz radio or wireless security monitoring use |
| Interfaces | 2x Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45, IEEE 802.3bz); CAT 5e; 10GBASE-T (CAT 6/6a); 100/1000BASE-T autosensing AUX (RJ-45); RJ-45 management console |
| Indicators | Status LED for boot loader, association, operation, warnings, errors |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) (excluding brackets) |
| Input Power Requirements | 802.3at PoE+, Cisco UPOE, 802.3at injector (AIR-PWRINJ6=), 50W power supply (AIR-PWR-50=) |
| Power Draw | 30W at PSE (all features except USB 2.0); 34W at PSE (USB 2.0 enabled) |
| Environmental – 3800i | Storage: -22° to 158°F (-30° to 70°C), 25°C at 15,000 ft; Operating: 32° to 104°F (0° to 40°C), humidity 10–90% (noncondensing), 40°C at 9843 ft |
| Environmental – 3800e/3800p | Storage: -22° to 158°F (-30° to 70°C), 25°C at 15,000 ft; Operating: -4° to 122°F (-20° to 50°C), humidity 10–90% (noncondensing), 40°C at 9843 ft |
| System Memory | 1024MB DRAM 256MB flash |
Related Products
| Cisco Aironet 3800 Series Access Points | |
| Cisco Aironet 3800I Access Point: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9 | Dual-band, controller-based 802.11a/b/g/n/ac |
| AIR-AP3802I-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac) 10 quantity access points |
| Cisco Aironet 3800I Access Point Configurable: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9C | Dual-band, controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802I-xK910C | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable |
| Cisco Aironet 3800E Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802E-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800e Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802E-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Cisco Aironet 3800p Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802P-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800P Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802P-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
