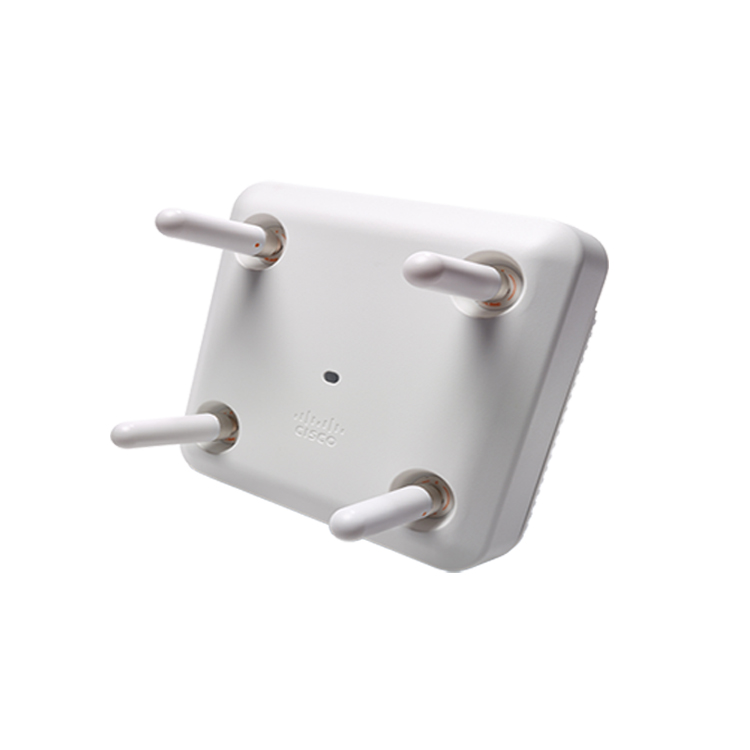

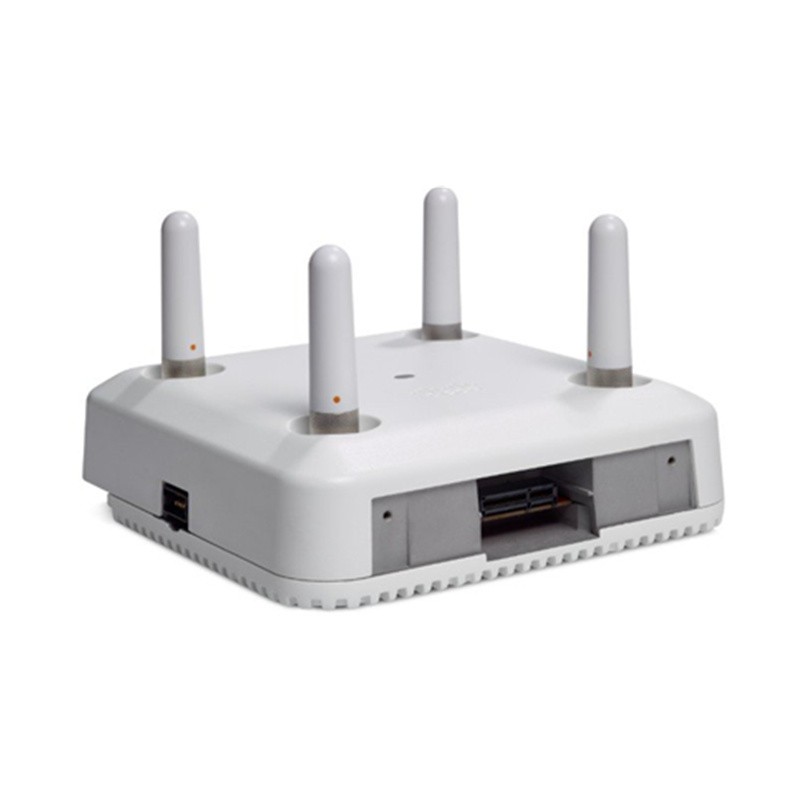

AIR-AP3802E-A-K9C Cisco 3802E Access Point Configurable, 802.11ac, 4x4:3 MU-MIMO, External Antenna, A Domain
Model No.: AIR-AP3802E-A-K9C
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-AP3802E-A-K9C: 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, A Regulatory Domain, Configurable
Cisco’s AIR-AP3802E-A-K9C is a high-performance access point engineered for enterprise environments that demand robust, secure, and scalable wireless connectivity. The 3802e excels in dense deployments, leveraging 4x4 MU-MIMO and flexible radio architecture to optimize throughput and client experiences. As a core choice for access deployment, the AIR-AP3802E-A-K9C integrates advanced wireless technologies, enabling seamless network access for a large number of users in dynamic settings. For organizations seeking reliability, the 3802e balances outstanding access control with powerful data performance, making air-ap3802e-a-k9c a preferred solution for next-generation network infrastructure.
Specification
| AIR-AP3802E-A-K9C Specification | |
| Model | AIR-AP3802E-A-K9C |
| Brand | Cisco |
| Software and Supported Wireless LAN Controllers | Cisco Unified Wireless Network Software Release 8.2.MR1 or later; Cisco 2500 Series, Wireless Controller Module for ISR G2, WiSM2 for Catalyst 6500 Series Switches, 5500 Series, Flex 7500 Series, 8500 Series, Virtual Wireless Controller; Cisco IOS XE Software Release 16.3 (Target Q3 CY2016); Cisco Catalyst 3850, 3650 Series Switches |
| 802.11n Version 2.0 and Related Capabilities | 4x4 MIMO with 3 spatial streams; Maximal Ratio Combining (MRC); 802.11n/a/g beamforming; 20/40 MHz channels; PHY data rates up to 450 Mbps (40 MHz, 5 GHz); A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) aggregation; 802.11 DFS; Cyclic Shift Diversity (CSD) |
| 802.11ac Wave 1 Capabilities | 4x4 MIMO with 3 spatial streams; MRC; 802.11ac beamforming; 20/40/80 MHz channels; PHY data rates up to 1.3 Gbps (80 MHz, 5 GHz); A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) aggregation; 802.11 DFS; CSD support |
| 802.11ac Wave 2 Capabilities | 4x4 MU-MIMO with 3 spatial streams; MRC; 802.11ac beamforming; 20/40/80/160 MHz channels; PHY data rates up to 5.2 Gbps; A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) aggregation; 802.11 DFS; CSD support |
| Integrated Antenna | Flexible radio (2.4 GHz or 5 GHz): 2.4 GHz, 4 dBi gain, internal omnidirectional; 5 GHz, 6 dBi gain, internal directional, 90° elevation beamwidth. Dedicated 5-GHz radio: 5 GHz, 5 dBi gain, internal omnidirectional antenna |
| External Antenna | 3802e Series: supports antenna gain up to 6 dBi (2.4 GHz & 5 GHz); 3802p Series: up to 13 dBi (2.4 GHz & 5 GHz) with AIR-ANT2513-P4M-N=; Cisco offers a broad selection of antennas for various deployment needs (antennas sold separately) |
| Smart Antenna Connector | Available on 3802e/3802p Series; requires AIR-CAB002-DART-R= 2 ft connector to RP-TNC for additional antenna; needed for flexible radio as second 5 GHz serving or Wireless Security Monitoring radio |
| Interfaces | 2 Ethernet ports; 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) - IEEE 802.3bz; CAT 5e cabling; 10GBASE-T (CAT 6/6a) supported; 100/1000BASE-T autosensing (AUX RJ-45); Management console port (RJ-45) |
| Indicators | Status LED shows boot loader, association, and operating status; warnings and errors |
| Dimensions (W x L x H) | 3802I: 8.66 x 8.68 x 2.46 in (22 x 22 x 6.25 cm); 3802E/3802P: 8.66 x 8.68 x 2.62 in (22 x 22 x 6.7 cm) (without mounting brackets) |
| Input Power Requirements | 802.3at PoE+, Cisco Universal Power over Ethernet (UPOE); 802.3at power injector (AIR-PWRINJ6=); 50W power supply (AIR-PWR-50=) |
| Power Draw | 30W at power sourcing equipment (PSE) with all features except USB 2.0; 34W at PSE with USB 2.0 enabled |
| Environmental | Cisco Aironet 3800i: Storage temp: -30°C to 70°C; Operating temp: 0°C to 40°C; Storage altitude: 25°C, 15,000 ft; Operating humidity: 10–90% (noncondensing); Operating altitude: 40°C, 9843 ft. Cisco Aironet 3800e/3800p: Storage temp: -30°C to 70°C; Operating temp: -20°C to 50°C; Storage altitude: 25°C, 15,000 ft; Operating humidity: 10–90% (noncondensing); Operating altitude: 40°C, 9843 ft. |
| System Memory | 1024MB DRAM 256MB flash |
Related Products
| Cisco Aironet 3800 Series Access Points | |
| Cisco Aironet 3800I Access Point: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9 | Dual-band, controller-based 802.11a/b/g/n/ac |
| AIR-AP3802I-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac) 10 quantity access points |
| Cisco Aironet 3800I Access Point Configurable: Indoor environments, with internal antennas | |
| AIR-AP3802I-x-K9C | Dual-band, controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802I-xK910C | Eco-pack (dual-band 802.11a/g/n/ac) 10 quantity access points, configurable |
| Cisco Aironet 3800E Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802E-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800e Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802E-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802E-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Cisco Aironet 3800p Access Point: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9 | Dual-band controller-based 802.11a/b/g/n/ac |
| AIR-AP3802P-xK910 | Eco-pack (dual-band 802.11a/b/g/n/ac), 10 quantity access points |
| Cisco Aironet 3800P Access Point Configurable: Indoor, challenging environments, with external antennas | |
| AIR-AP3802P-x-K9C | Dual-band controller-based 802.11a/g/n/ac, configurable |
| AIR-AP3802P-xK910C | Eco-pack (dual-band 802.11a/g/n/ac), 10 quantity access points, configurable |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
