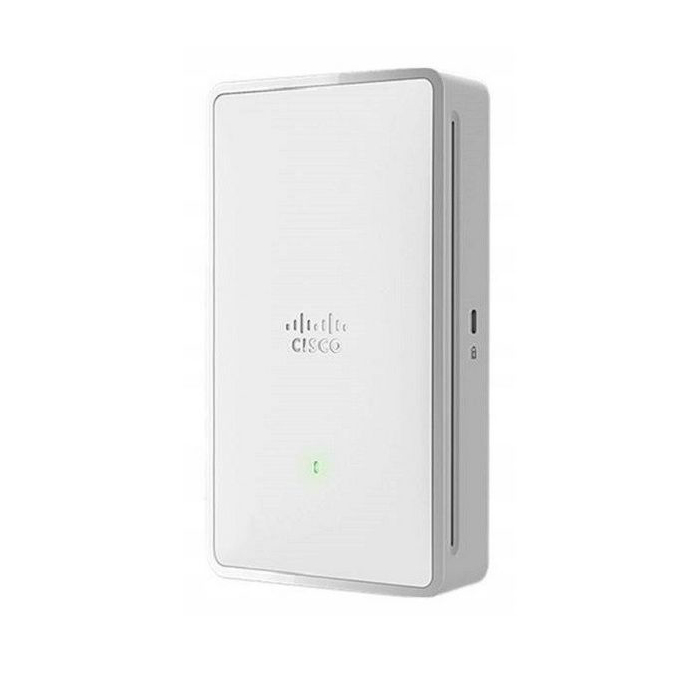

C9105AXW-C, Cisco Catalyst 9105AX Wall Plate Access Point, Internal Antenna, Wi-Fi 6, C Domain
Model No.: C9105AXW-C
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9105AXW-C: Cisco Catalyst 9105AX Wall Plate Access Point, with Internal Antenna; Wi-Fi 6; 2x2 MIMO with two spatial streams, C Domain
C9105AXW-C is a Cisco Catalyst 9105AX Wall Plate, with internal antennas; Wi-Fi 6; 2x2 MIMO with two spatial streams, and C regulatory domain. Cisco? Catalyst? 9105 Series Access Points are the most versatile next generation access point in enterprise grade. They are resilient, secure, and intelligent.
Specification
| C9105AXW-C Specification | |
| Model | C9105AXW-C |
| Brand | Cisco |
| Software | Catalyst 9105AXW: Cisco Unified Wireless Network Software Release 8.10MR3 or later Cisco IOS ® XE Software Release 17.3.1 or later |
| Supported wireless LAN controllers | Cisco Catalyst 9800 Series Wireless Controllers Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | 2x2 MIMO with two spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g 20- and 40-MHz channels PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support |
| 802.11ac | 2x2 downlink MU-MIMO with two spatial streams MRC 802.11ac beamforming 20-, 40-, 80- MHz channels PHY data rates up to 866.7 Mbps (80 MHz with 5GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support WPA3 support |
| 802.11ax | 2x2 uplink/downlink MU-MIMO with two spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80- channels PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support WPA3 support |
| Integrated antenna | Catalyst 9105AXW: 2.4 GHz: Peak gain 3 dBi, internal antenna 5 GHz: Peak gain 5 dBi, internal antenna |
| Interfaces | Catalyst 9105AXW: 1x 100/1000/2500 Base-T (Ethernet) Uplink Interface 3x 10/100/1000 Base-T (Ethernet) Downlink Interface (LAN1,LAN2 and LAN3, LAN1 supports 10.5W PSE Power Budget) Management console port (RJ-45) USB 2.0 at 4.5W Passthru Port |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): C9105AXW: 3.54 x 6.3 x 1.3 in. (90 x 160 x 32.66 mm) |
Related Products
| Cisco Catalyst 9105 Series Wi-Fi 6 Access Points | |
| Part Number | Description |
| C9105AXI-x | Cisco Catalyst 9105AX Access Point: Indoor environments, with internal antennas |
| C9105AXI-EWC-x | Cisco Catalyst 9105AX Access Point: Indoor environments, with internal antennas, with embedded wireless controller |
| C9105AXW-x | Cisco Catalyst 9105AX Access Point: Wall Plate, with internal antennas |
| C9105AXIT-x | Cisco Catalyst 9105AX Teleworker Access Point: Indoor environments, with internal antennas |
| C9105AXWT-x | Cisco Catalyst 9105AX Teleworker Access Point: Wall Plate, with internal antennas |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
