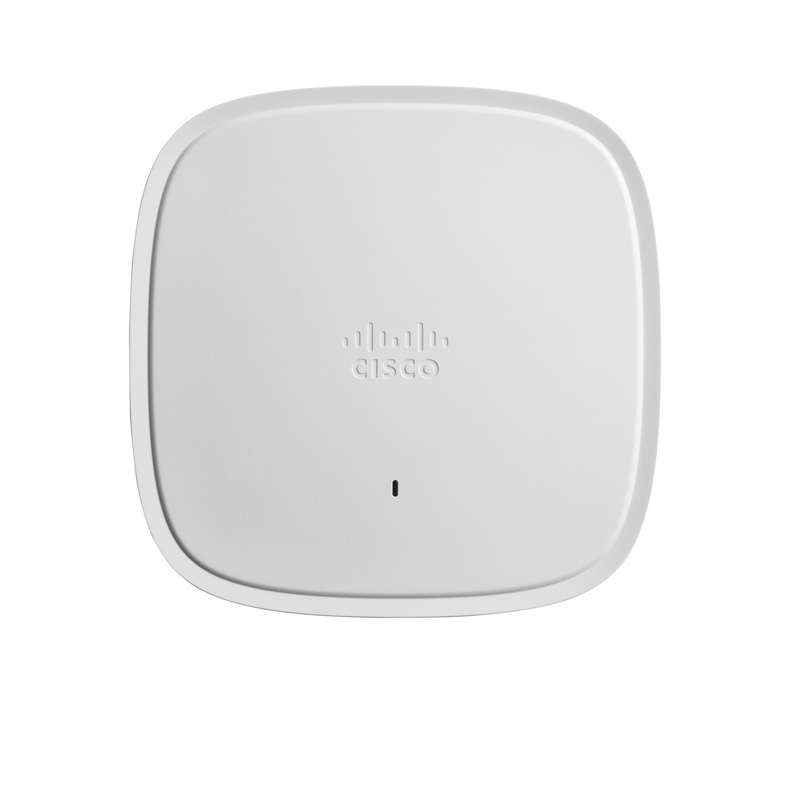

C9115AXI-EWC-E, Cisco C9115AXI Access Point, Embedded Wireless Controller, E Domain
Model No.: C9115AXI-EWC-E
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9115AXI-EWC-E: Cisco Catalyst 9115AXI Access Point: Indoor environments, with Internal Antenna, with Embedded Wireless Controller, E Domain
The Cisco Embedded Wireless Controller on Catalyst Access Points (EWC-AP) is the next-generation Wi-Fi solution. Built for intent-based networking and Cisco DNA, the EWC-AP helps you simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation, and human expertise that no other vendor can deliver, regardless of where you are in the intent-based networking journey.
Specification
| C9115AXI-EWC-E Specifications | |
| Model | C9115AXI-EWC-E |
| Brand | Cisco Embedded Wireless Controller on Catalyst Access Points: Indoor environments, with internal antennas, E regulatory domain. |
| Description | Cisco Catalyst 9115AX Series, E Domain |
| Software | Cisco Unified Wireless Network Software Release 8.9 or later Cisco IOS ® XE Software Release 16.11 or later |
| Supported wireless LAN controllers | Cisco Catalyst 9800 Series Wireless Controllers Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | 4x4 MIMO with four spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support |
| 802.11ac | 4x4 downlink MU-MIMO with four spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support |
| 802.11ax | 4x4 downlink MU-MIMO with four spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support |
| Integrated antenna | 2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth 5 GHz, peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios |
| Interfaces | 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz Management console port (RJ-45) USB 2.0 (enabled via future software) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): C9115I: 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm), C9115E: 8.0 x 8.0 x 1.7 in. (20.3 x 20.3 x 4.3 cm) |
| System memory | 2048 MB DRAM 1024 MB flash |
| Frequency band and 20-MHz operating channels | E (E regulatory domain): 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) |
Related Products
| Cisco Catalyst 9115 Series Wi-Fi 6 Access Points | |
| Part Number | Description |
| C9115AXI-x | Cisco Catalyst 9115AXI Access Point: Indoor environments, with internal antennas |
| C9115AXI-EWC-x | Cisco Catalyst 9115AXI Access Point: Indoor environments, with internal antennas, with embedded wireless controller |
| C9115AXE-x | Cisco Catalyst 9115AXE Access Point: Indoor, challenging environments, with external antennas |
| C9115AXE-EWC-x | Cisco Catalyst 9115AXE Access Point: Indoor, challenging environments, with external antennas, with embedded wireless controller |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
FAQ
Q: Is your product original?
A: Yes, our product is original, we only sells original product.
Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.
Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.
Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.
Q: If the product has quality problem, how to solve it?
A: If there is quality problem during warranty, you can ship back to get replacement or refund.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
