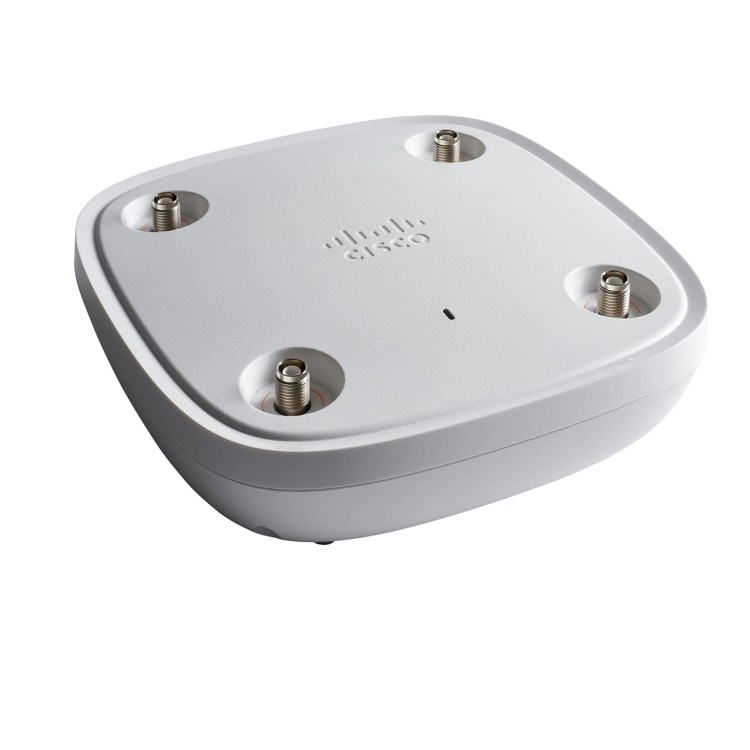

C9115AXE-E, Cisco Catalyst 9115AXE Access Point, External Antenna, Wi-Fi 6, E Domain
Model No.: C9115AXE-E
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9115AXE-E: Cisco Catalyst 9115AXE Access Point: Indoor, challenging environments, with External Antenna; Wi-Fi 6; 4x4:4 MIMO, E Domain
The Catalyst 9115 Series Access Points, paired with the Cisco Digital Network Architecture (Cisco DNA), are enterprise-class products that will address both your current and future needs. They are the first step in updating your network to take better advantage of all of the features and benefits that Wi-Fi 6 provides. C9115AXE-E is the Cisco Catalyst 9115AX Access Point, External antenna; Wi-Fi 6; 4x4:4 MIMO, E Domain.
Specification
| C9115AXE-E Specification | |
| Model | C9115AXE-E |
| Brand | Cisco |
| Description | Cisco Catalyst 9115AX Series, H Domain |
| Supported wireless LAN controllers | Cisco Catalyst 9800 Series Wireless Controllers, Cisco 3500, 5520, and 8540 Series Wireless Controllers, and Cisco Virtual Wireless Controller |
| Software | Cisco Unified Wireless Network Software Release 8.9 or later Cisco IOS XE Software Release 16.11 or later |
| 802.11n version 2.0 | 4x4 MIMO, four spatial streams Maximal Ratio Combining (MRC) Beamforming 20- and 40-MHz channels PHY data rates up to 890 Mbps Packet aggregation: A-MPDU, A-MSDU Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) |
| 802.11ac | 4x4 downlink MU-MIMO, four spatial streams MRC Beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 3.47 Gbps Packet aggregation: A-MPDU, A-MSDU Dynamic Frequency Selection (DFS) CSD |
| 802.11ax | 4x4 downlink MU-MIMO, four spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC Beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 5.38 Gbps Packet aggregation: A-MPDU, A-MSDU Dynamic Frequency Selection (DFS) CSD |
| Integrated antenna | 2.4 GHz, peak gain 3 dBi, internal, omnidirectional 5 GHz, peak gain 6 dBi, internal, omnidirectional |
| External antenna (sold separately) | Certified for use with antenna gains up to 6 dBi Wide selection of antennas for various deployments |
| Interfaces | 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) Management console port (RJ-45) USB 2.0 (enabled via future software) |
| Indicators | Status LED: boot loader status, association status, operating status, warnings, and errors |
| Dimensions (W x L x H) | 8.0 x 8.0 x 1.5 in. (20.3 x 20.3 x 3.8 cm) |
| System memory | 2048 MB DRAM 1024 MB flash |
| Frequency band and 20-MHz operating channels | E (E regulatory domain): 2.412 to 2.472 GHz; 13 channels 5.180 to 5.320 GHz; 8 channels 5.745 to 5.825 GHz; 5 channels |
Related Products
| Cisco Catalyst 9115 Series Wi-Fi 6 Access Points | |
| Part Number | Description |
| C9115AXI-x | Cisco Catalyst 9115AXI Access Point: Indoor environments, with internal antennas |
| C9115AXI-EWC-x | Cisco Catalyst 9115AXI Access Point: Indoor environments, with internal antennas, with embedded wireless controller |
| C9115AXE-x | Cisco Catalyst 9115AXE Access Point: Indoor, challenging environments, with external antennas |
| C9115AXE-EWC-x | Cisco Catalyst 9115AXE Access Point: Indoor, challenging environments, with external antennas, with embedded wireless controller |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
