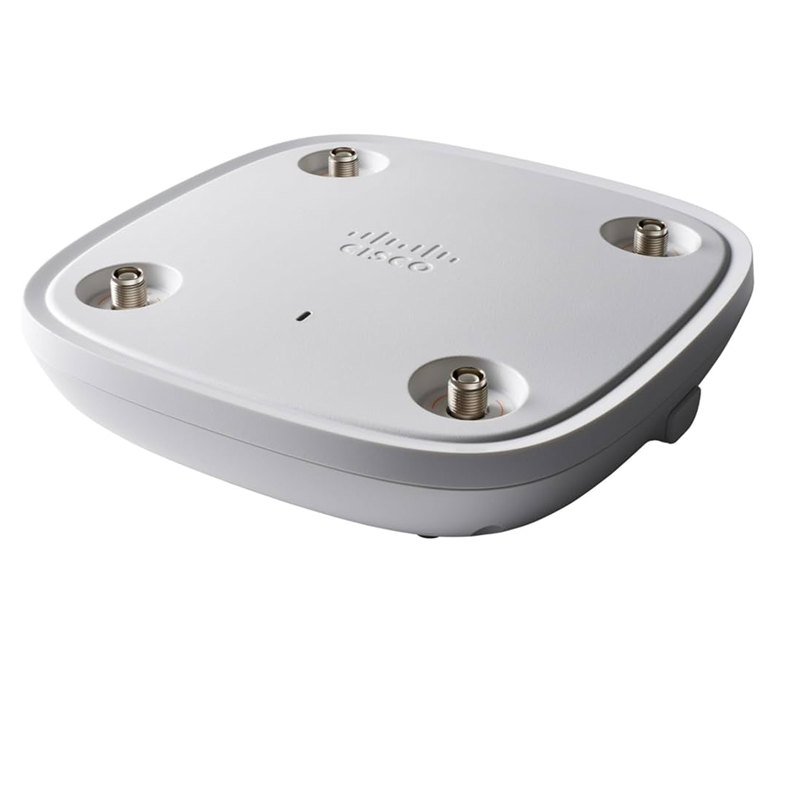

C9120AXE-A, Cisco Catalyst 9120AXE Access Point, Wi-Fi 6, 4x4 MU-MIMO, External Antenna, A Domain
Model No.: C9120AXE-A
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9120AXE-A: Cisco Catalyst 9120AXE Access Point, Indoor, challenging environments, External Antenna; Wi-Fi 6; 4x4:4 MIMO, A Domain
The Cisco Catalyst 9120 Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. The Cisco Catalyst 9120AX Series Access Points, paired with Cisco DNA, are enterprise-class products that will address your current and future needs. These access points are the first step in updating your network so that you can take better advantage of all of the features and benefits that Wi-Fi 6 provides.
Specification
| C9120AXE-A Specification | |
| Model | C9120AXE-A |
| Brand | Cisco |
| Description | Cisco Catalyst 9120AXE Series, A Domain |
| Software | Cisco Unified Wireless Network Software Release 8.9.x or later Cisco IOS® XE Software Release 16.11 with AP Device Pack, or later |
| Supported wireless LAN controllers | Cisco Catalyst 9800 Series Wireless Controllers Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | 4x4 MIMO with four spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g beamforming 20- and 40-MHz channels PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support |
| 802.11ac | 4x4 downlink MU-MIMO with four spatial streams MRC 802.11ac beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support |
| 802.11ax | 4x4 downlink MU-MIMO with four spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80-, and 160-MHz channels PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support |
| Integrated antenna | Flexible radio (either on 2.4GHz or on 5GHz) 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth Dedicated 5GHz radio 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios Supports Self-Identifiable Antennas (SIA) on one RP-TNC port |
| Smart Antenna Connector | Available on the 9120E and on the 9120P only Compact multi RF connector with DART interface Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio |
| Interfaces | 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45)–IEEE 802.3bz Management console port (RJ-45) USB 2.0 @ 3.75W (enabled via future software) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7" (21.6 x 21.6 x 4.3 cm), C9120E and C9120P: 8.5 x 8.05x 2.0" (21.6 x 21.6 x 5.1 cm) |
| System memory | 2048 MB DRAM 1024 MB flash |
| Frequency band and 20-MHz operating channels | A (A regulatory domain): 2.412 to 2.462 GHz; 11 channels 5.180 to 5.320 GHz; 8 channels 5.500 to 5.700 GHz; 8 channels(excludes 5.600 to 5.640 GHz) 5.745 to 5.825 GHz; 5 channels |
Related Products
| Cisco Catalyst 9120AX Series Wi-Fi 6 Access Points | |
| Part Number | Description |
| C9120AXI-x | Cisco Catalyst 9120AXI Access Point: Indoor environments, with internal antennas |
| C9120AXI-EWC-x | Cisco Catalyst 9120AXI Access Point: Indoor environments, with internal antennas, with embedded wireless controller |
| C9120AXE-x | Cisco Catalyst 9120AXE Access Point: Indoor, challenging environments, with external antennas |
| C9120AXE-EWC-x | Cisco Catalyst 9120AXE Access Point: Indoor, challenging environments, with external antennas, with embedded wireless controller |
| C9120AXP-x | Cisco Catalyst 9120AXP Access Point: Indoor, professional installations |
| C9120AXP-EWC-x | Cisco Catalyst 9120AXP Access Point: Indoor, professional installations, with embedded wireless controller |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
