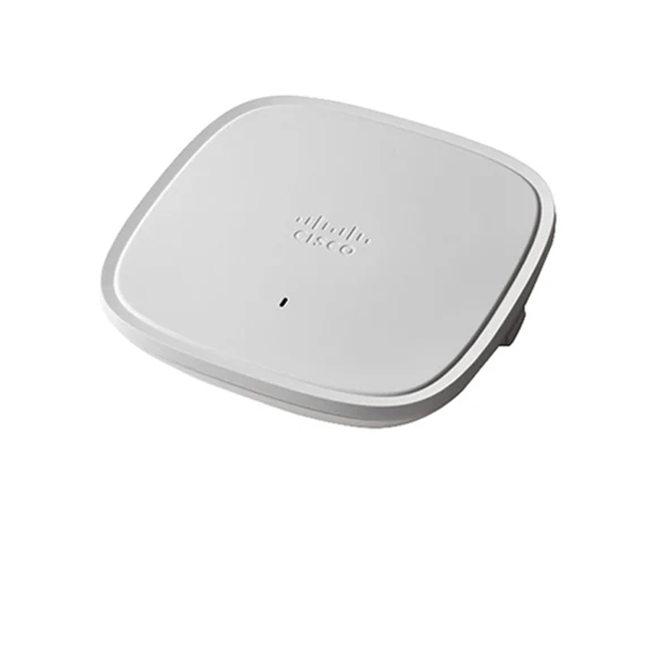

C9120AXP-I, Cisco Catalyst 9120AXP Access Point, professional installations, Internal Antenna, I Domain
Model No.: C9120AXP-I
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9120AXP-I: Cisco Catalyst 9120AXP Access Point: Indoor, professional installations, Internal Antenna; Wi-Fi 6; 4x4:4 MIMO, I Domain
The Cisco Catalyst 9120 Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. Wi-Fi 6; 4x4:4 MIMO, I Domain.
Specification
| C9120AXP-I Specification | |
| Description | Cisco Catalyst 9120AXP Series, I Domain |
| Software | • Cisco Unified Wireless Network Software Release 8.9.x or later • Cisco IOS® XE Software Release 16.11 with AP Device Pack, or later |
| Supported wireless LAN controllers | • Cisco Catalyst 9800 Series Wireless Controllers • Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | • 4x4 MIMO with four spatial streams • Maximal Ratio Combining (MRC) • 802.11n and 802.11a/g beamforming • 20- and 40-MHz channels • PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 Dynamic Frequency Selection (DFS) • Cyclic Shift Diversity (CSD) support |
| 802.11ac | • 4x4 downlink MU-MIMO with four spatial streams • MRC • 802.11ac beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support |
| 802.11ax | • 4x4 downlink MU-MIMO with four spatial streams • Uplink/downlink OFDMA • TWT • BSS coloring • MRC • 802.11ax beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support |
| Integrated antenna | Flexible radio (either on 2.4GHz or on 5GHz) • 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth • 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuth Dedicated 5GHz radio • 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | • Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) • Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with the AIR-ANT2513-P4M-N= antenna • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios • Supports Self-Identifiable Antennas (SIA) on one RP-TNC port |
| Smart Antenna Connector | • Available on the 9120E and on the 9120P only • Compact multi RF connector with DART interface • Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNCconnector • Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio |
| Interfaces | • 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45)–IEEE 802.3bz • Management console port (RJ-45) • USB 2.0 @ 3.75W (enabled via future software) |
| Indicators | • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | • Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7" (21.6 x 21.6 x 4.3 cm), C9120E and C9120P: 8.5 x 8.05x 2.0" (21.6 x 21.6 x 5.1 cm) |
| Input power requirements | • 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE®) • Cisco power injector, AIR-PWRINJ6= • 802.3af PoE • Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) |
| System memory | • 2048 MB DRAM • 1024 MB flash |
| Frequency band and 20-MHz operating channels | I (I regulatory domain): • 2.412 to 2.472 GHz; 13 channels • 5.180 to 5.320 GHz; 8 channels |
Related Products
| Cisco Catalyst 9120AX Series Wi-Fi 6 Access Points | |
| Part Number | Description |
| C9120AXI-x | Cisco Catalyst 9120AXI Access Point: Indoor environments, with internal antennas |
| C9120AXI-EWC-x | Cisco Catalyst 9120AXI Access Point: Indoor environments, with internal antennas, with embedded wireless controller |
| C9120AXE-x | Cisco Catalyst 9120AXE Access Point: Indoor, challenging environments, with external antennas |
| C9120AXE-EWC-x | Cisco Catalyst 9120AXE Access Point: Indoor, challenging environments, with external antennas, with embedded wireless controller |
| C9120AXP-x | Cisco Catalyst 9120AXP Access Point: Indoor, professional installations |
| C9120AXP-EWC-x | Cisco Catalyst 9120AXP Access Point: Indoor, professional installations, with embedded wireless controller |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
