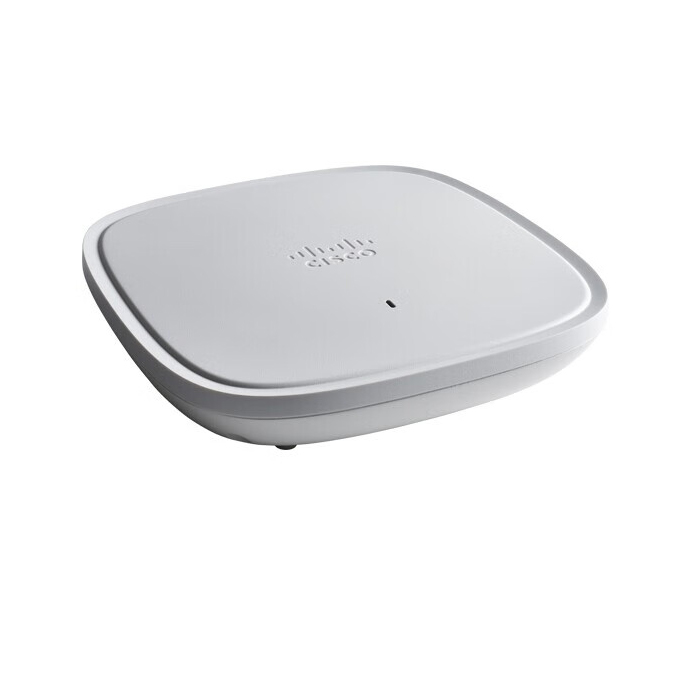

C9130AXI-E, Cisco Catalyst 9130AXI Access Point, Internal Antenna, Wi-Fi 6, 4x4:4 MIMO, E Domain
Model No.: C9130AXI-E
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9130AXI-E: Cisco Catalyst 9130AXI Access Point: Indoor environments, with Internal Antenna; Wi-Fi 6; 4x4:4 MIMO, E Domain
The Cisco Catalyst 9130AXI-E is a high-performance enterprise-grade Access Point designed to deliver seamless and reliable wireless connectivity. Leveraging the latest WiFi 6 technology, the Catalyst 9130 ensures optimal performance in high-density environments. This Access Point offers advanced features such as superior wireless coverage, enhanced security options, and intelligent management capabilities, making it a perfect addition to enterprise networks. The Cisco Catalyst 9130 also integrates effortlessly into existing Cisco infrastructure, providing a robust and scalable solution for businesses looking to upgrade their wireless network capabilities. With the Catalyst 9130's exceptional throughput and low latency, users can enjoy an uninterrupted and efficient wireless experience, crucial for supporting today's data-intensive applications.
Specification
| C9130AXI-E Specification | |
| Model | C9130AXI-E |
| Brand | Cisco |
| Software | Catalyst 9130AXI • Cisco Unified Wireless Network Software Release 8.10.x or later • Cisco IOS® XE Software Release 16.12.1 with AP Device Pack, or later |
| Supported Wireless LAN Controllers | • Cisco Catalyst 9800 Series Wireless Controllers • Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n Version 2.0 Capabilities | • 4x4 MIMO with four spatial streams • Maximal Ratio Combining (MRC) • 802.11n and 802.11a/g • 20- and 40-MHz channels • PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • Cyclic Shift Diversity (CSD) support |
| 802.11ac | • 8x8 downlink MU-MIMO with eight spatial streams • MRC • 802.11ac beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
| 802.11ax | • 8x8 uplink/downlink MU-MIMO with eight spatial streams • Uplink/downlink OFDMA • TWT • BSS coloring • MRC • 802.11ax beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
| Integrated Antenna | • 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth • 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
| External Antenna with Smart Antenna Connector | • The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios • Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector • Smart antenna connector is a compact multi-RF connector with 8-DART interface • Requires the AIR-CAB002-D8-R= 2-ft smart antenna connector when used with antennas with a RP-TNC connector • Requires the AIR-CAB003-D8-N= 3-ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna |
| Interfaces | • 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz • Management console port (RJ-45) • USB 2.0 at 4.5W (enabled via future software) |
| Indicators | • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | • Access point (without mounting brackets): - C9130AXI: 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm) |
| System Memory | • 2048 MB DRAM • 1024 MB flash |
Related Products
| Cisco Catalyst 9130AX Series Wi-Fi 6 Access Points | |
| Part Number | Description |
| C9130AXI-x | Cisco Catalyst 9130AXI Access Point: Indoor environments, with internal antennas |
| C9130AXI-EWC-x | Cisco Catalyst 9130AXI Access Point: Indoor environments, with internal antennas, with embedded wireless controller |
| C9130AXE-x | Cisco Catalyst 9130AXE Access Point: Challenging indoor environments, with external antennas |
| C9130AXE-EWC-x | Cisco Catalyst 9130AXE Access Point: Challenging indoor environments, with external antennas, with embedded wireless controller |
| C9130AXE-STA-x | Cisco Catalyst 9130AXE-STA Access Point: C9130 AP with C-ANT9104 Stadium antenna |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
FAQ
Q: Is your product original?
A: Yes, our product is original, we only sells original product.
Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.
Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.
Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.
Q: If the product has quality problem, how to solve it?
A: If there is quality problem during warranty, you can ship back to get replacement or refund.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
