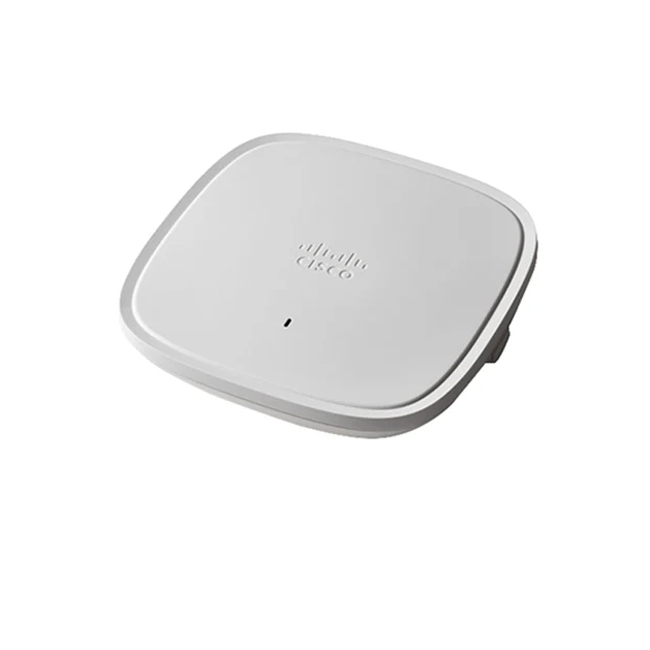

C9130AXI-H, Cisco Catalyst 9130AXI Access Point, Wi-Fi 6, 4x4:4 MIMO, H Domain
Model No.: C9130AXI-H
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * C9130AXI-H: Cisco Catalyst 9130AXI Access Point: Indoor environments, with Internal Antenna; Wi-Fi 6; 4x4:4 MIMO, H Domain
The Cisco Catalyst 9130AX Series Access Points are the next generation of enterprise access points. They are resilient, secure, and intelligent. C9130AXI-H is the Cisco Catalyst 9130AX Series Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain.
Specification
| C9130AXI-H Specification | |
| Model | C9130AXI-H |
| Brand | Cisco |
| Software | Catalyst 9130AXI • Cisco Unified Wireless Network Software Release 8.10.x or later • Cisco IOS® XE Software Release 16.12.1 with AP Device Pack, or later |
| Supported Wireless LAN Controllers | • Cisco Catalyst 9800 Series Wireless Controllers • Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n Version 2.0 Capabilities | • 4x4 MIMO with four spatial streams • Maximal Ratio Combining (MRC) • 802.11n and 802.11a/g • 20- and 40-MHz channels • PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • Cyclic Shift Diversity (CSD) support |
| 802.11ac | • 8x8 downlink MU-MIMO with eight spatial streams • MRC • 802.11ac beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
| 802.11ax | • 8x8 uplink/downlink MU-MIMO with eight spatial streams • Uplink/downlink OFDMA • TWT • BSS coloring • MRC • 802.11ax beamforming • 20-, 40-, 80-, and 160-MHz channels • PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) • 802.11 DFS • CSD support • WPA3 support |
| Integrated Antenna | • 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth • 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
| External Antenna with Smart Antenna Connector | • The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios • Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector • Smart antenna connector is a compact multi-RF connector with 8-DART interface • Requires the AIR-CAB002-D8-R= 2-ft smart antenna connector when used with antennas with a RP-TNC connector • Requires the AIR-CAB003-D8-N= 3-ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna |
| Interfaces | • 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz • Management console port (RJ-45) • USB 2.0 at 4.5W (enabled via future software) |
| Indicators | • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | • Access point (without mounting brackets): - C9130AXI: 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm) |
| System Memory | • 2048 MB DRAM • 1024 MB flash |
Related Products
| Cisco Catalyst 9130AX Series Wi-Fi 6 Access Points | |
| Part Number | Description |
| C9130AXI-x | Cisco Catalyst 9130AXI Access Point: Indoor environments, with internal antennas |
| C9130AXI-EWC-x | Cisco Catalyst 9130AXI Access Point: Indoor environments, with internal antennas, with embedded wireless controller |
| C9130AXE-x | Cisco Catalyst 9130AXE Access Point: Challenging indoor environments, with external antennas |
| C9130AXE-EWC-x | Cisco Catalyst 9130AXE Access Point: Challenging indoor environments, with external antennas, with embedded wireless controller |
| C9130AXE-STA-x | Cisco Catalyst 9130AXE-STA Access Point: C9130 AP with C-ANT9104 Stadium antenna |
| Remark: x = regulatory domain Customers are responsible for verifying approval for use in their individual countries |
|
FAQ
Q: Is your product original?
A: Yes, our product is original, we only sells original product.
Q: How to pay?
A: You can pay by T/T,Western Union,MoneyGram.
Q: How do you guarantee delivery after payment?
A: We will send all products usually within 3 working days after payment confirmed, we want to do long-term business with every customer, not one time business, so we really need your trust. Work with us, your money is safe, your order is safe.
Q: How long is the warranty?
A: We can provide 1 year warranty, so please don't worry to cooperate with us, you have good guarantee.
Q: If the product has quality problem, how to solve it?
A: If there is quality problem during warranty, you can ship back to get replacement or refund.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL,FedEx,UPS,Aramex,Air Cargo, it usually takes 3-5 days to destination.
