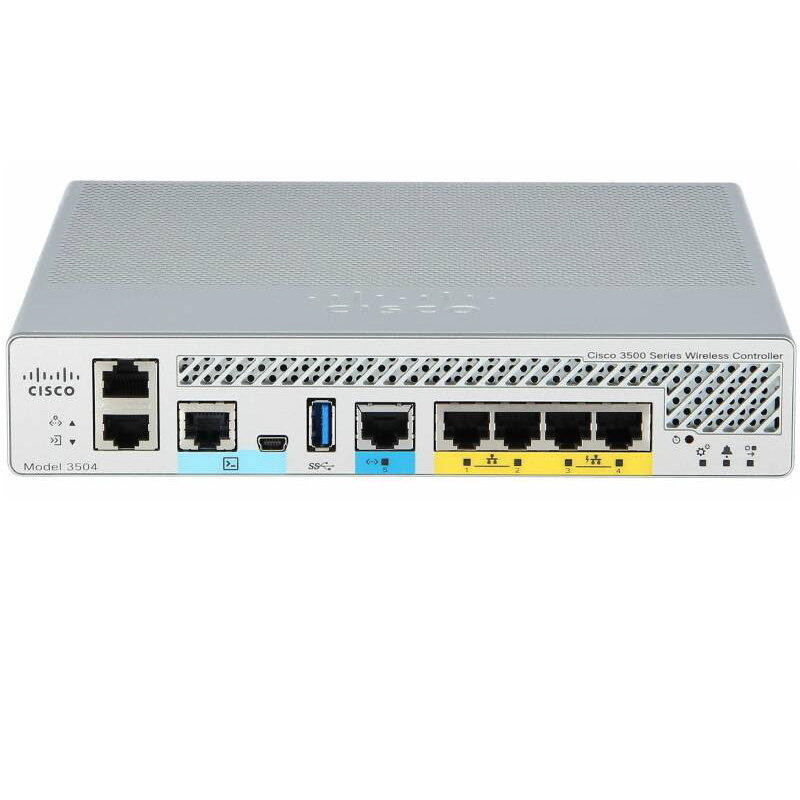

AIR-CT3504-K9, Cisco 3504 Wireless Controller, 150 APs
Model No.: AIR-CT3504-K9
Brand Name: CISCO
Condition: Original, New in box
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * AIR-CT3504-K9: Cisco 3504 Wireless Controller
AIR-CT3504-K9 is the Cisco 3504 Wireless Controller. The Cisco 3504 Wireless Controller provides centralized control, management, and troubleshooting for small to medium-sized enterprises and branch offices. It offers flexibility to support multiple deployment modes in the same controller—a centralized mode for campus environments, Cisco FlexConnect mode for lean branches managed over the WAN, and a mesh (bridge) mode for deployments in which full Ethernet cabling is unavailable. As a component of the Cisco Unified Wireless Network, the 3504 controller provides real-time communications between Cisco Aironet access points, Cisco Prime Infrastructure, and the Cisco Mobility Services Engine, and is interoperable with the Cisco 5520 and 8540 Wireless Controllers.
Specification
| AIR-CT3504-K9 Specification | |
| Model | AIR-CT3504-K9 |
| Brand | Cisco |
| Chassis Height | One rack-unit (1RU) |
| Throughput | 4 Gbps |
| Number of APs supported | 150 |
| Number of clients supported | 3000 |
| Processor | Cavium Network Processor—CN7240-AAP 8-core, 1.5 GHz |
| Memory Options | Control/Data Plane Memory—8GB DDR4 Boot Flash—8MB SPI NOR Serial Boot Bulk Flash—32GB eMMC |
| Redundancy, Service Ports | 2x 1G Cu |
| Data Ports | 1x 5G/mGig Cu, 4x 1G Cu (2 ports 802.3at PSE) |
| Storage Temperature | –4° F to 158° F (–20° C to 70° C) |
| Operating Temperature | 32° F to 104° F (0° C to 40° C) |
| Storage Humidity | 0% to 95% RH non-condensing |
| Operating Humidity | 5% to 95% RH non-condensing |
| Power Adapter | 54VDC/1.05A, 12VDC/3.75A |
| Wireless | IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave 1 and Wave 2 |
| Wired, switching, and routing | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation |
| Data Request For Comments (RFC) | · RFC 768 UDP · RFC 791 IP · RFC 2460 IPv6 · RFC 792 Internet Control Message Protocol (ICMP) · RFC 793 TCP · RFC 826 Address Resolution Protocol (ARP) · RFC 1122 Requirements for Internet Hosts · RFC 1519 Classless Interdomain Routing (CIDR) · RFC 1542 BOOTP · RFC 2131 Dynamic Host Configuration Protocol (DHCP) · RFC 5415 CAPWAP Protocol · RFC 5416 CAPWAP Binding for 802.11 |
| Encryption | Wired Equivalent Privacy (WEP) and Temporal Key Integrity Protocol-Message Integrity Check (TKIP-MIC): · RC4 40, 104 and 128 bits (both static and shared keys) · Advanced Encryption Standard (AES): CBC, Counter with CBC-MAC (CCM), Counter with CBC Message Authentication Code Protocol (CCMP) · Data Encryption Standard (DES): DES-CBC, 3DES · Secure Sockets Layer (SSL) and TLS: RC4 128-bit and RSA 1024- and 2048-bit · DTLS: AES-CBC · IPsec: DES-CBC, 3DES, AES-CBC · 802.1AE MACsec encryption |
| Management interfaces | · Web-based: HTTP/HTTPS · Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port · Cisco Prime Infrastructure |
| Interfaces and indicators | · 1x Multigigabit Ethernet interface (up to 5 Gigabit Ethernet) + 4x 1 Gigabit Ethernet interfaces (RJ-45) · 1x service port: 1 Gigabit Ethernet port (RJ-45) · 1x redundancy port: 1 Gigabit Ethernet port (RJ-45) · 1x console port: Serial port (RJ-45) · 1x console port: Serial port (mini-B USB) · 1x USB 3.0 port · LED indicators: Network link, diagnostics |
| Physical and environmental | Dimensions: 1.73 x 9.5 x 8.5 in. (43.94 x 214.3 x 215.9 mm) Weight: 4.4lbs Temperature: Operating: 32 to 104 °F (0 to 40°C) Storage: -4 to 158 °F (-20 to 70°C) Humidity: Operating Humidity: 5% to 95% RH non-condensing Storage Humidity: 0% to 95% RH non-condensing Power adapter: Input power: 100 to 240 VAC; 50/60 Hz Heat dissipation (without PoE): 47W, 160BTU/hr Heat dissipation (with PoE): 98W, 335BTU/hr |
