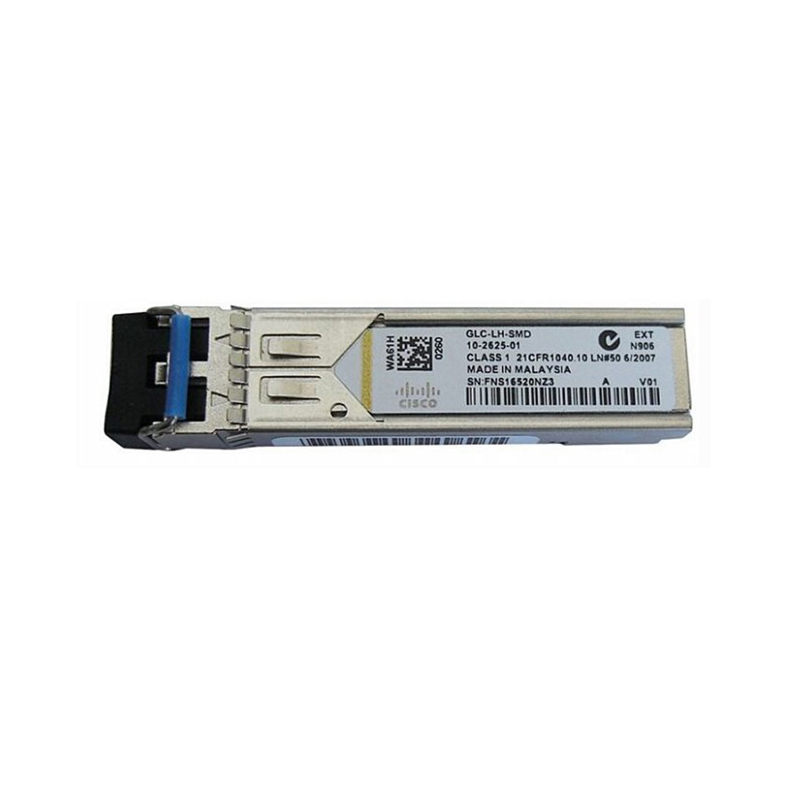

GLC-LH-SMD, Cisco 1000BASE-LX/LH SFP Transceiver Module, MMF/SMF, 1310nm, 10km, DOM
Model No.: GLC-LH-SMD
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * GLC-LH-SMD: Cisco 1000BASE-LX/LH SFP Transceiver Module, MMF/SMF, 1310nm, 10km, DOM
The Cisco GLC-LH-SMD is a carrier-grade SFP transceiver module designed for reliable Gigabit Ethernet over single-mode fiber. Supporting a 1 Gbps data rate at a 1310 nm wavelength, it delivers stable 1000BASE-LX/LH links up to 10 km, making it ideal for enterprise network aggregation and metro access. Its LC duplex connector simplifies integration into existing fiber plants, while digital optical monitoring (DOM) helps operators and integrators proactively manage link performance and minimize downtime.
1000BASE-LX/LH SFP for both multimode and single-mode fibers
The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable.
Features and benefits:
● Hot swappable to maximize uptime and simplify serviceability
● Flexibility of media and interface choice on a port-by-port basis, so you can “pay as you populate”
● Robust design for enhanced reliability
● Supports Digital Optical Monitoring (DOM) capability
Specification
| GLC-LH-SMD Specification | |
| Model | GLC-LH-SMD |
| Brand | Cisco |
| Type | Transceiver Module |
| Form Factor | SFP |
| Data Rate | 1 Gbps |
| Cable Type | Single-Mode Fiber |
| Operating Temperature | 0° to 70°C (32° to 158°F) |
| Connector | LC Duplex |
| Transmission Distance | Up to 10 km |
| DOM Support | Yes |
| Wavelength | 1310 nm |
| Protocols | Gigabit Ethernet |
| Weight | 0.2 kg |
Related Products
| Part Number | Description |
| GLC-TE | Cisco 1000BASE-T SFP Module, RJ-45, Copper, 100m |
| GLC-SX-MMD | Cisco 1000BASE-SX SFP Transceiver Module, MMF, 850nm, 550m, DOM |
| GLC-LH-SMD | Cisco 1000BASE-LX/LH SFP Transceiver Module, MMF/SMF, 1310nm, 10km, DOM |
| GLC-EX-SMD | Cisco 1000BASE-EX SFP Transceiver Module, SMF, 1310nm, 40km, DOM |
| GLC-ZX-SMD | Cisco 1000BASE-ZX SFP Transceiver Module, SMF, 1550nm, 80km, DOM |
| SFP-10G-T-X | Cisco 10GBASE-T SFP+ Module for CAT6A cables (up to 30 meters) |
| SFP-10G-SR-S | Cisco 10GBASE-SR SFP+ Module for MMF S-Class, 850nm, 300m |
| SFP-10G-SR | Cisco 10GBASE-SR SFP+ Module for MMF, 850nm, 300m |
| SFP-10G-LRM | Cisco 10GBASE-LRM SFP+ Module for MMF and SMF, 1310nm, 220m |
| SFP-10G-LR-S | Cisco 10GBASE-LR SFP+ Module for SMF S-Class, 1310nm, 10km |
| SFP-10G-LR | Cisco 10GBASE-LR SFP+ Module for SMF, 1310nm, 10km |
| SFP-10G-ER-S | Cisco 10GBASE-ER SFP+ Module for SMF S-Class, 1550nm, 40km |
| SFP-10G-ER | Cisco 10GBASE-ER SFP+ Module for SMF, 1550nm, 40km |
| QSFP-40G-SR4-S | Cisco 40GBASE-SR4 QSFP Module for MMF, 850nm, 150m |
| QSFP-40G-SR4 | Cisco 40GBASE-SR4 QSFP Module for MMF, 850nm, 150m |
| QSFP-40G-LR4-S | Cisco 40GBASE-LR4 QSFP Module for SMF, 1310nm, 10km |
| QSFP-40G-LR4 | Cisco 40GBASE-LR4 QSFP Module for SMF with OTU-3 data-rate support, 1310nm, 10km |
| QSFP-100G-SR4-S | Cisco 100GBASE-SR4 QSFP Transceiver, MPO-12, 100m over OM4 MMF |
| QSFP-100G-LR-S | Cisco 100GBASE-LR1 QSFP Transceiver, 10km over SMF |
| QSFP-100G-LR4-S | Cisco 100GBASE-LR4 QSFP Transceiver, LC, 10km over SMF |
