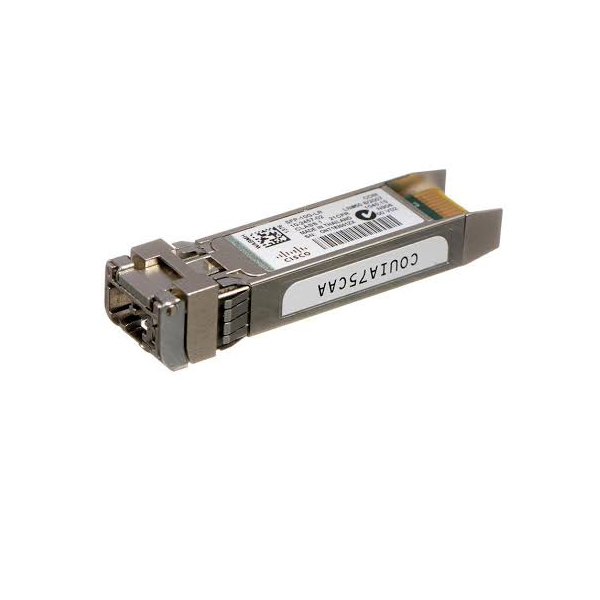

SFP-10G-LR, Cisco 10GBASE-LR SFP+ Transceiver Module, SMF, 1310nm, 10km
Model No.: SFP-10G-LR
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * SFP-10G-LR: Cisco 10GBASE-LR SFP+ Module for SMF, 1310nm, 10km
The Cisco SFP-10G-LR is an enterprise-class 10GBASE-LR SFP+ transceiver designed for long-reach backbone and aggregation links over single-mode fiber. Operating at a 1310 nm wavelength on G.652 SMF, it delivers reliable 10 km connectivity for data center, campus, and metro networks across Asia, Europe, Africa, and North America. With low 1W power consumption, blue bail latch identification, and tightly controlled transmit and receive power, this Cisco module is ideal for distributors, SMB integrators, and end users building scalable 10G optical infrastructure.
Cisco SFP-10G-LR Module
The Cisco 10GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF, G.652).
Features and benefits
Cisco SFP+ modules offer the following features and benefits:
● Industry’s smallest 10G form factor for greatest density per chassis
● Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a Cisco switch (no need to power down if installing or replacing)
● Supports “pay-as-you-populate” model for investment protection and ease of technology migration
● Digital optical monitoring capability for strong diagnostic capabilities
● Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link
● Cisco quality Identification (ID) feature enables a Cisco platform to identify whether the module is certified and tested by Cisco
Specification
| SFP-10G-LR Specification | |
| Model | SFP-10G-LR |
| Brand | Cisco |
| Wavelength (nm) | 1310 |
| Cable Type | SMF |
| Core Size (Microns) | G.652 |
| Cable Distance | 10 km |
| Transmit and Receive Wavelength (nm) | 1260 to 1355 |
| Bail Latch Color | Blue |
| Power Consumption (W) | 1 |
| Transmit Power (dBm) | Maximum: 0.5 Minimum: -8.2 |
| Receive Power (dBm) | Maximum: -0.5 Minimum: -14.4 |
| Weight | 0.2 kg |
Related Products
| Cisco 10GBASE SFP+ Modules | |
| Part Number | Description |
| SFP-10G-T-X | Cisco 10GBASE-T SFP+ Module for CAT6A cables (up to 30 meters) |
| SFP-10G-SR-S | Cisco 10GBASE-SR SFP+ Module for MMF S-Class, 850nm, 300m |
| SFP-10G-SR | Cisco 10GBASE-SR SFP+ Module for MMF, 850nm, 300m |
| SFP-10G-SR-X | Cisco Multirate 10GBASE-SR, 10GBASE-SW and OTU2e SFP+ Module for MMF, extended temperature range, 850nm, 300m |
| SFP-10G-SR-I | Cisco Multirate 10GBASE-SR, 10GBASE-SW and OTU2e SFP+ Module for MMF, industrial temperature range |
| SFP-10G-LRM | Cisco 10GBASE-LRM SFP+ Module for MMF and SMF, 1310nm, 220m |
| SFP-10G-LR-S | Cisco 10GBASE-LR SFP+ Module for SMF S-Class, 1310nm, 10km |
| SFP-10G-LR | Cisco 10GBASE-LR SFP+ Module for SMF, 1310nm, 10km |
| SFP-10G-LR-X | Cisco Multirate 10GBASE-LR, 10GBASE-LW and OTU2e SFP+ Module for SMF, extended temperature range |
| SFP-10G-LR10-I | Cisco Multirate 10GBASE-LR, CPRI 3-8, Industrial Temperature Module |
| SFP-10G-ER-S | Cisco 10GBASE-ER SFP+ Module for SMF S-Class, 1550nm, 40km |
| SFP-10G-ER | Cisco 10GBASE-ER SFP+ Module for SMF, 1550nm, 40km |
| SFP-10G-ER-I | Cisco Multirate 10GBASE-ER, 10GBASE-EW and OTU2e SFP+ Module for SMF, Industrial Temperature range |
| SFP-10G-ZR-S | Cisco 10GBASE-ZR SFP+ Module for SMF S-Class, 1550nm, 80km |
| SFP-10G-ZR | Cisco 10GBASE-ZR SFP+ Module for SMF, 1550nm, 80km |
| SFP-10G-ZR-I | Cisco Multirate 10GBASE-ZR, 10GBASE-ZW and OTU2e SFP+ Module for SMF |
| SFP-10G-BXD-I | Cisco 10GBASE-BX10-D Bidirectional for 10km |
| SFP-10G-BXU-I | Cisco 10GBASE-BX10-U Bidirectional for 10km |
| SFP-10G-BX40D-I | Cisco 10GBASE-BX40-D Bidirectional for 40km |
| SFP-10G-BX40U-I | Cisco 10GBASE-BX40-U Bidirectional for 40km |
