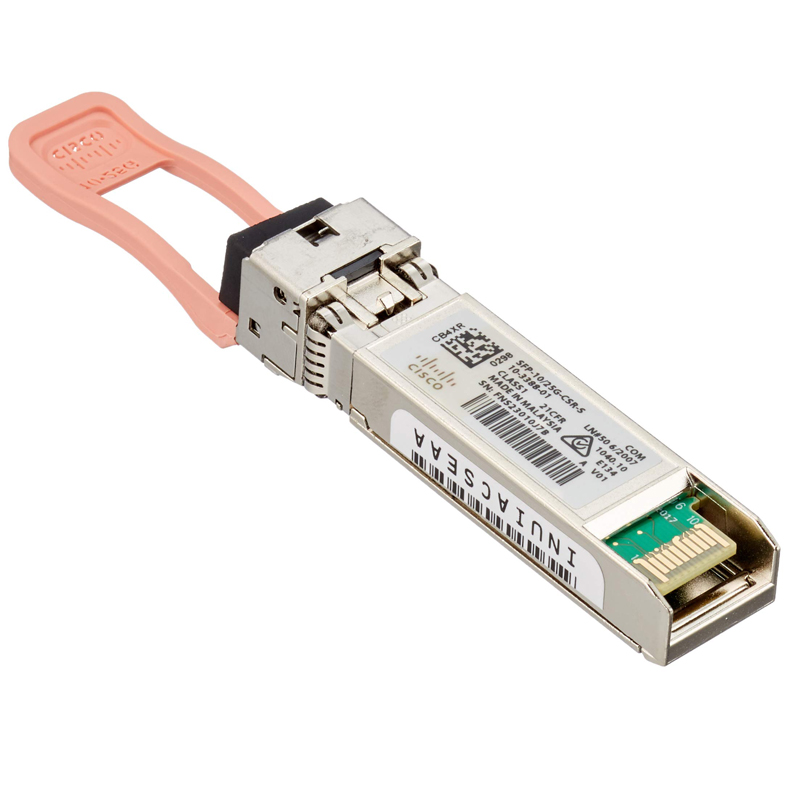

SFP-10/25G-CSR-S, Cisco 10/25GBASE-CSR SFP28 Module, MMF, 850nm, 300m
Model No.: SFP-10/25G-CSR-S
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * SFP-10/25G-CSR-S: Cisco 10/25GBASE-CSR SFP28 Module for MMF, 850nm, 300m
The SFP-10/25G-CSR-S is a dual-rate 10/25GBASE-CSR SFP module. This high-speed, high-capacity transceiver is an ideal solution for data center networking and other environments where high data rates are necessary.
Cisco SFP-10/25G-CSR-S
The Cisco 10/25GBASE-CSR Module supports a link length of up to 300/400m over OM3/4 at 10G, and up to 300/400m over OM3/4 at 25G*. It also supports link lengths of 82m over OM2 at 10G, and up to 70m over OM2 at 25G.
This module requires RS-FEC on the host port for full reach operation at 25G. Using BASE-R FEC the module can support 70/100m over OM3/4 and with-out FEC it can support 30/50m over OM3/4 at 25G*. For 10G operation FEC is not required.
Features and benefits of Cisco 25G Modules
● Interoperable with other IEEE-compliant 25G interfaces where applicable.
● Certified and tested on Cisco SFP28 ports for superior performance, quality, and reliability.
● High-speed connectivity compliant to IEEE 802.3by and IEEE 802.3cc.
Specification
| SFP-10/25G-CSR-S Specification | ||
| Model | SFP-10/25G-CSR-S | |
| Brand | Cisco | |
| Wavelength (nm) | 850 | |
| Cable Type | MMF | |
| Core Size (Microns) | 50 | |
| Modal Bandwidth | 500 (OM2) | |
| Cable Distance | 70m (25G) 82m (10G) |
|
| Type | 10G | 25G |
| Maximum: +2.4 Minimum: -7.3 |
Maximum: +2.4 Minimum: -6 |
|
| Transmit Power (dBm)* | Maximum: +2.4 Minimum: -9.9 |
Maximum: +2.4 Minimum: -8.7 |
| Receive Power (dBm)* | Maximum: +2.4 Minimum: -9.9 |
Maximum: +2.4 Minimum: -8.7 |
| Transmit and Receive Wavelength (nm) | 840 to 860 | 840 to 860 |
| Cable Type | MMF | |
| Cable Distance | 300/400m (OM3/OM4)* | |
| Max Power Consumption (W) | 1.2 | |
| Pull Tab /Bail Latch Color | Peach | |
Related Products
| Cisco 25GBASE SFP28 Modules | |
| Part Number | Description |
| SFP-25G-SR-S | Cisco 25GBASE-SR SFP28 Module for MMF, 850nm, 100m |
| SFP-25G-SL | Cisco 25GBASE-SL SFP28 Module for MMF |
| SFP-10/25G-CSR-S | Cisco 10/25GBASE-CSR SFP28 Module for MMF, 850nm, 300m |
| SFP-10/25G-LR-S | Cisco 10/25GBASE-LR SFP28 Module for SMF, 1310nm, 10km |
| SFP-10/25G-LR-I | Cisco 10/25GBASE-LR SFP28 Module for SMF, Industrial Temp |
| SFP-25G-ER-I | Cisco 25GBASE-ER SFP28 Module for SMF, Industrial Temp, 1310nm, 40km |
| SFP-10/25G-BXD-I | Cisco 10/25GBASE-BR SFP28 Bidi module for SMF, Industrial Temp, Downstream |
| SFP-10/25G-BXU-I | Cisco 10/25GBASE-BR SFP28 Bidi module for SMF, Industrial Temp, Upstream |
| SFP-25G-BX40D-I | Cisco 25GBASE-BR40 SFP28 Bidi module for SMF, Industrial Temp, Downstream |
| SFP-25G-BX40U-I | Cisco 25GBASE-BR40 SFP28 Bidi module for SMF, Industrial Temp, Upstream |
