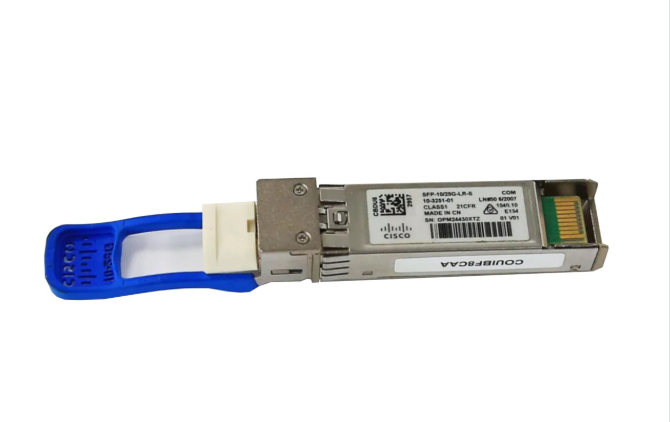

SFP-10/25G-LR-S, Cisco 10/25GBASE-LR SFP28 Module, SMF, 1310nm, 10km
Model No.: SFP-10/25G-LR-S
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * SFP-10/25G-LR-S: Cisco 10/25GBASE-LR SFP28 Module for SMF, 1310nm, 10km
The Cisco 25GBASE SFP28 (Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 25 Gigabit Ethernet connectivity options for data center and high-performance computing networks applications. The 25G Modules are based on SFP28 form factor.
Cisco SFP-10/25G-LR-S
The Cisco 10/25GBASE-LR Module supports a link length of 10 kilometers on standard Single-Mode Fiber (SMF) G.652 at both 10G and 25G.
This module requires RS-FEC on the host ports for operation at 25G.
Features and benefits of Cisco 25G Modules
● Interoperable with other IEEE-compliant 25G interfaces where applicable.
● Certified and tested on Cisco SFP28 ports for superior performance, quality, and reliability.
● High-speed connectivity compliant to IEEE 802.3by and IEEE 802.3cc.
Specification
| SFP-10/25G-LR-S Specification | |
| Model | SFP-10/25G-LR-S |
| Brand | Cisco |
| Description | Cisco 10/25GBASE-LR SFP28 Module for Single-Mode Fiber (SMF) |
| Cable Distance | 10 km (SMF, G.652 compliant) |
| Wavelength | 1310 nm (10G & 25G modes) |
| Max Power Consumption | 1.3 W |
| Pull Tab Color | Blue |
| Optical Performance (10G Mode) | Transmit Power: +0.5 dBm (max), -8.2 dBm (min); Receive Sensitivity: +0.5 dBm (max), -14.4 dBm (min); Wavelength Range: 1260–1355 nm |
| Optical Performance (25G Mode) | Transmit Power: +0.5 dBm (max), -14.4 dBm (min); Receive Sensitivity: +2.0 dBm (max), -13.3 dBm (min); Wavelength Range: 1295–1325 nm |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Compliance & Standards | IEEE 802.3 (10G/25G), SFF-8402 (SFP28), SFF-8472 (diagnostics), RoHS 6 |
| Safety | Laser Class 1 (IEC 60825-1, 21CFR-1040) |
| Connector Type | Dual LC/PC (APC connectors not supported) |
| FCoE Support | Yes (with compatible host software) |
| Engineered Links | Up to 15 km possible with RS-FEC and insertion loss <9.3 dB |
Related Products
| Cisco 25GBASE SFP28 Modules | |
| Part Number | Description |
| SFP-25G-SR-S | Cisco 25GBASE-SR SFP28 Module for MMF, 850nm, 100m |
| SFP-25G-SL | Cisco 25GBASE-SL SFP28 Module for MMF |
| SFP-10/25G-CSR-S | Cisco 10/25GBASE-CSR SFP28 Module for MMF, 850nm, 300m |
| SFP-10/25G-LR-S | Cisco 10/25GBASE-LR SFP28 Module for SMF, 1310nm, 10km |
| SFP-10/25G-LR-I | Cisco 10/25GBASE-LR SFP28 Module for SMF, Industrial Temp |
| SFP-25G-ER-I | Cisco 25GBASE-ER SFP28 Module for SMF, Industrial Temp, 1310nm, 40km |
| SFP-10/25G-BXD-I | Cisco 10/25GBASE-BR SFP28 Bidi module for SMF, Industrial Temp, Downstream |
| SFP-10/25G-BXU-I | Cisco 10/25GBASE-BR SFP28 Bidi module for SMF, Industrial Temp, Upstream |
| SFP-25G-BX40D-I | Cisco 25GBASE-BR40 SFP28 Bidi module for SMF, Industrial Temp, Downstream |
| SFP-25G-BX40U-I | Cisco 25GBASE-BR40 SFP28 Bidi module for SMF, Industrial Temp, Upstream |
