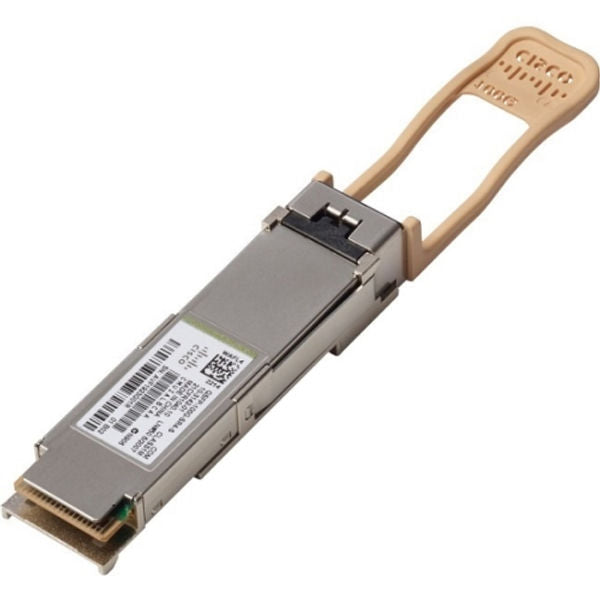

QSFP-40G-SR4-S, Cisco 40GBASE-SR4 QSFP Module, MMF, 850nm, 100m
Model No.: QSFP-40G-SR4-S
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * QSFP-40G-SR4-S: Cisco 40GBASE-SR4 QSFP Module for MMF, 850nm, 150m
The Cisco 40GBASE QSFP (Quad Small Form-Factor Pluggable) portfolio offers customers a wide variety of high-density and low-power 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications.
Features and benefits of Cisco QSFP Modules
● Hot-swappable input/output device that plugs into a 40 Gigabit Ethernet Cisco QSFP port
● Interoperable with other IEEE-compliant 40GBASE interfaces where applicable
● Certified and tested on Cisco QSFP 40G ports for superior performance, quality, and reliability
● High-speed electrical interface compliant to the IEEE 802.3ba standard
● QSFP Form factor, 2-wire I2C communication interface and other low-speed electrical interface compliant to SFF 8436 and QSFP Multisource Agreement (MSA)
Specification
| QSFP-40G-SR4-S Specification | |
| Model | QSFP-40G-SR4-S |
| Brand | Cisco |
| Description | Cisco 40GBASE-SR4 QSFP Module for MMF, 850nm |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Wavelength (nm) | 850 |
| Cable Type | MMF |
| Core Size (microns) | 50 50 |
| Modal Bandwidth (MHz-km) | 2000 (OM3) 4700 (OM4) |
| Cable Distance | 100m 150m |
| Power Consumption (W) | 1.5 |
| Pull Tab Color | Beige |
| Type | 40GBASE-SR4, 4 lanes, 850 nm MMF |
| Transmit Power (dBm) | Max:+2,4 per lane Min:-7.6 per lane |
| Receive Power (dBm) | Max:-2.4 per lane Min:-9.5 per lane |
| Transmit and Receive Wavelength (nm) | 840 to 860 |
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
| Standards | • GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable • GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies • GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors • IEEE 802.3ba (-SR4, -LR4) • IEEE 802.3ae (-CSR4) • QSFP+ MSA SFF-8436 • SFP+ MSA SFF-8431 and -8461 • RoHS 6 |
| Safety | • Cable jacket of QSFP copper modules is UL E116441 Compliant • QSFP copper cables are ELV Compliant |
Related Products
| Cisco 40GBASE QSFP Modules | |
| Part Number | Description |
| QSFP-40G-SR4-S | Cisco 40GBASE-SR4 QSFP Module for MMF, 850nm, 100m |
| QSFP-40G-SR4 | Cisco 40GBASE-SR4 QSFP Module for MMF, 850nm, 100m |
| QSFP-40G-SR-BD | Cisco 40GBASE-SR Bi-Directional QSFP Module for Duplex MMF |
| QSFP-40G-BD-RX | Cisco 40GBASE-SR Bi-Directional QSFP Monitor Module for Duplex MMF |
| QSFP-40G-CSR-S | Cisco 40GBASE-CSR QSFP Module for Duplex MMF, 850nm, 300m |
| QSFP-40G-CSR4 | Cisco 40GBASE-CSR4 QSFP Module for MMF, 850nm, 300m |
| WSP-Q40GLR4L | Cisco 40GBASE-LR4L QSFP Module for SMF |
| QSFP-40G-LR4-S | Cisco 40GBASE-LR4 QSFP Module for SMF, 1310nm, 10km |
| QSFP-40G-LR4 | Cisco 40GBASE-LR4 QSFP Module for SMF with OTU-3 data-rate support, 1310nm, 10km |
| QSFP-4X10G-LR-S | Cisco 4x10GBASE-LR QSFP Modules for SMF, 1310nm, 10km |
| QSFP-40G-ER4 | Cisco 40GBASE-ER4 QSFP Module for SMF with OTU-3 data-rate support, 1310nm, 40km |
