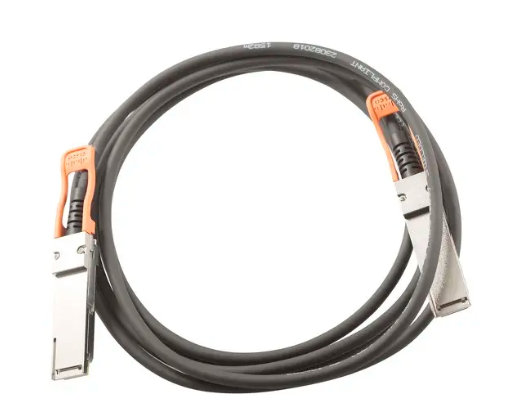

QSFP-H40G-CU5M, Cisco QSFP Copper Cable, 40GBASE-CR4, Passive, 5-Meter
Model No.: QSFP-H40G-CU5M
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * QSFP-H40G-CU5M: Cisco 40GBASE-CR4 QSFP Direct-Attach Copper Cable, 5-Meter, Passive
The Cisco QSFP-H40G-CU5M is a high-performance 40Gbps direct-attach copper cable designed for data center and enterprise switching environments. This Cisco accessory delivers low-latency, short-reach 5m connectivity between QSFP+ ports while consuming only 1.5W, making it ideal for top-of-rack and aggregation links. Its passive copper design enhances reliability and cost-efficiency for high-density 40GBASE-CR4 deployments across global networks.
Cisco QSFP to QSFP Copper Direct-Attach Cables
Cisco QSFP to QSFP copper direct-attach 40GBASE-CR4 cables are suitable for very short distances and offer a very cost-effective way to establish a 40-gigabit link between QSFP ports of Cisco switches within racks and across adjacent racks. Cisco currently offers passive cables in lengths of 0.5, 1, 2, 3, 4 and 5 meters and active cables in lengths of 7 and 10 meters.
Specification
| QSFP-H40G-CU5M Specification | |
| Model | QSFP-H40G-CU5M |
| Brand | Cisco |
| Description | Cisco 40GBASE-CR4 QSFP direct-attach copper cable,5-meter, passive |
| Dimensions | 13.5 x 18.4 x 72.4mm |
| Wavelength (nm) | \ |
| Cable Type | Direct-attach copper cable assembly |
| Core Size (microns) | \ |
| Modal Bandwidth (MHz-km) | \ |
| Cable Distance | 5m |
| Power Consumption (W) | 1.5 |
| Pull Tab Color | Gray |
| Commercial temperature | 0 to 70 ° C (32 to 158 ° F) |
| Storage temperature | -40 to 85 ° C (-40 to 185 ° F) |
| Standards | • GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable • GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies • GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors • IEEE 802.3ba (-SR4, -LR4) • IEEE 802.3ae (-CSR4) • QSFP+ MSA SFF-8436 • SFP+ MSA SFF-8431 and -8461 • RoHS 6 |
| Safety | • Cable jacket of QSFP copper modules is UL E116441 Compliant • QSFP copper cables are ELV Compliant |
| Weight | 1 kg |
Related Products
| Cisco QSFP to QSFP Direct-Attach Copper Cables 40GBASE-CR4 | |
| QSFP-H40G-CU0-5M | Cisco 40GBASE-CR4 QSFP Direct-Attach Copper Cable, 0.5-Meter, Passive |
| QSFP-H40G-CU1M | Cisco 40GBASE-CR4 QSFP Direct-Attach Copper Cable, 1-Meter, Passive |
| QSFP-H40G-CU2M | Cisco 40GBASE-CR4 QSFP Direct-Attach Copper Cable, 2-Meter, Passive |
| QSFP-H40G-CU3M | Cisco 40GBASE-CR4 QSFP Direct-Attach Copper Cable, 3-Meter, Passive |
| QSFP-H40G-CU4M | Cisco 40GBASE-CR4 QSFP Direct-Attach Copper Cable, 4-Meter, Passive |
| QSFP-H40G-CU5M | Cisco 40GBASE-CR4 QSFP Direct-Attach Copper Cable, 5-Meter, Passive |
| QSFP-H40G-ACU7M | Cisco 40GBASE-CR4 QSFP Direct-Attach Copper Cable, 7-Meter, Active |
| QSFP-H40G-ACU10M | Cisco 40GBASE-CR4 QSFP Direct-Attach Copper Cable, 10-Meter, Active |
| Cisco QSFP-40G to Four SFP+ Direct-Attach Breakout Cables | |
| QSFP-4SFP10-CU0-5M | Cisco 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ Direct-Attach Breakout Cable, 0.5-Meter, Passive |
| QSFP-4SFP10G-CU1M | Cisco 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ Direct-Attach Breakout Cable, 1-Meter, Passive |
| QSFP-4SFP10G-CU2M | Cisco 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ Direct-Attach Breakout Cable, 2-Meter, Passive |
| QSFP-4SFP10G-CU3M | Cisco 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ Direct-Attach Breakout Cable, 3-Meter, Passive |
| QSFP-4SFP10G-CU4M | Cisco 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ Direct-Attach Breakout Cable, 4-Meter, Passive |
| QSFP-4SFP10G-CU5M | Cisco 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ Direct-Attach Breakout Cable, 5-Meter, Passive |
| QSFP-4X10G-AC7M | Cisco 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ Direct-Attach Breakout Cable, 7-Meter, Active |
| QSFP-4X10G-AC10M | Cisco 40GBASE-CR4 QSFP to 4 10GBASE-CU SFP+ Direct-Attach Breakout Cable, 10-Meter, Active |
