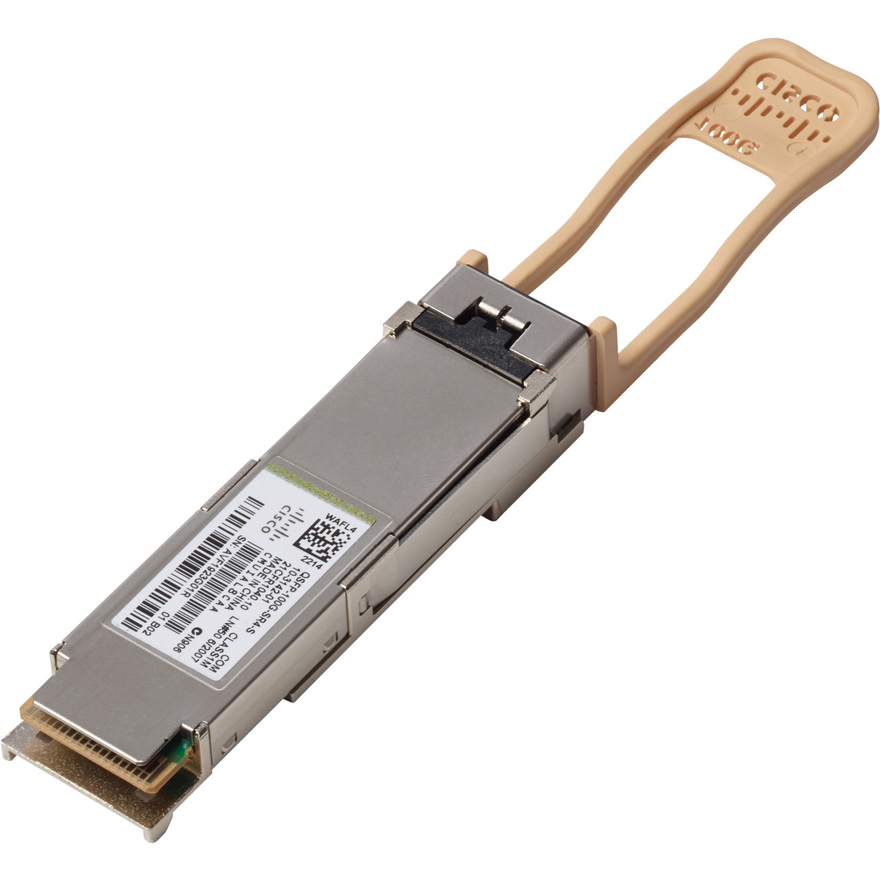

QSFP-100G-SR4-S, Cisco 100GBASE-SR4 QSFP Transceiver, MPO-12, 100m over OM4 MMF
Model No.: QSFP-100G-SR4-S
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * QSFP-100G-SR4-S: Cisco 100GBASE-SR4 QSFP Transceiver, MPO-12, 100m over OM4 MMF
Cisco QSFP-100G-SR4-S
The Cisco 100GBASE-SR4-S QSFP Module supports link lengths of up to 70m over OM3 and 100m over OM4 Multimode Fiber with MPO connectors. It primarily enables high-bandwidth 100G optical links over 12-fiber parallel fiber terminated with MPO multifiber connectors. QSFP-100G-SR4-S supports 100GBase Ethernet rate.
The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor.
Features and Benefits of Cisco QSFP Modules
● Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port.
● Interoperable with other IEEE-compliant 100GBASE interfaces where applicable.
● Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability.
● High-speed electrical interface compliant to IEEE 802.3bm.
Specification
| QSFP-100G-SR4-S Specification | |
| Model | QSFP-100G-SR4-S |
| Brand | Cisco |
| Description | Cisco 100GBASE-SR4 QSFP Transceiver, MPO-12, 100m over OM4 MMF |
| Form Factor | QSFP-100G-SR4 |
| Data Rate | 100 Gbps |
| Connector Type | MTP/MPO-12 |
| Wavelength | 850 nm |
| Cable Type Supported | Multimode fiber (MMF) |
| Max Cable Distance | 70 m (OM3), 100 m (OM4) |
| Transmitter Type | VCSEL |
| Receiver Type | PIN photodiode |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Digital Optical Monitoring | Supported |
| Application | 100GBASE-SR4 Ethernet |
| Hot Swappable | Yes |
| Power Consumption | <2.5W |
| DDM/DOM | Supported |
Related Products
| Cisco 100GBASE QSFP-100G Modules | |
| Part Number | Description |
| QSFP-100G-SR4-S | Cisco 100GBASE-SR4 QSFP Transceiver, MPO-12, 100m over OM4 MMF |
| QSFP-100G-SL4 | Cisco 100GBASE-SL4 QSFP Transceiver, MPO-12, 30m over OM4 MMF |
| QSFP-100G-SR1.2 | Cisco 100GBASE SR-BIDI QSFP Transceiver, LC, 100m OM4 MMF |
| QSFP-40/100-SRBD | Cisco 100G and 40G SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF |
| QSFP-100G-SR-S | Cisco 100GBASE-SR1 QSFP Transceiver, LC, 100m over OM4 MMF |
| QSFP-100G-PSM4-S | Cisco 100G PSM4 QSFP Transceiver, MPO-12, 500m over SMF |
| QSFP-100G-DR-S | Cisco 100GBASE-DR QSFP Transceiver, 500m over SMF |
| QSFP-100G-FR-S | Cisco 100GBASE-FR1 QSFP Transceiver, 2km over SMF |
| QSFP-100G-CWDM4-S | Cisco 100G CWDM4 QSFP Transceiver, LC, 2km over SMF |
| QSFP-100G-SM-SR | Cisco 100G CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C |
| QSFP-100G-LR-S | Cisco 100GBASE-LR1 QSFP Transceiver, 10km over SMF |
| QSFP-100G-LR4-S | Cisco 100GBASE-LR4 QSFP Transceiver, LC, 10km over SMF |
| QSFP-100G-LR4-I | Cisco 100GBASE-LR4 QSFP I-Temp Transceiver, LC, 10km over SMF |
| QSFP-100G-ERL-S | Cisco 100GBASE-ER-Lite QSFP Transceiver, 25km over SMF |
| QSFP-100G-B20U4-I | Cisco 100GBASE BIDI 20KM reach over SMF, Duplex LC |
| QSFP-100G-B20D4-I | Cisco 100GBASE BIDI 20KM reach over SMF, Duplex LC |
| QSFP-100G-ER4L-S | Cisco 100G ER4-Lite QSFP Transceiver, 40KM reach over SMF, Duplex LC |
| QSFP-100G-4W40-I | Cisco 100G WDM-40 QSFP Transceiver, 40KM reach over SMF, Duplex LC |
| QSFP-100G-ZR4-S | Cisco 100GBASE-ZR4 QSFP Transceiver, 80KM reach over SMF, Duplex LC |
