QSFP-100G-SM-SR, Cisco 100G CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C
Model No.: QSFP-100G-SM-SR
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * QSFP-100G-SM-SR: Cisco 100G CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C

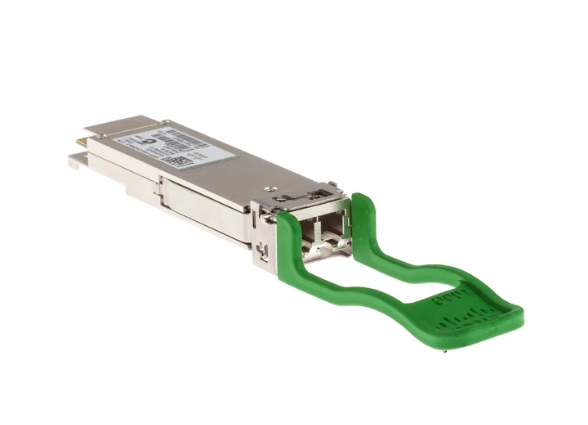

Cisco QSFP-100G-SM-SR
The Cisco QSFP-100G-SM-SR QSFP module supports link lengths of up to 2 kilometers over a standard pair of G.652 Single-Mode Fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device. The operating temperature range is from +10 to +60°C with an optical link budget of 4.2 decibels. This 4.2-decibel link budget offers the ability to support the loss from patch panels in the link in a data center environment. QSFP 100G SM-SR is interoperable with QSFP-100G-CWDM4-S.
The Cisco 100GBASE Quad Small Form-Factor Pluggable (QSFP) portfolio offers customers a wide variety of high-density and low-power 100 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider applications. The QSFP-100G modules are our latest generation of 100G transceiver modules solution based on a QSFP form factor.
Features and Benefits of Cisco QSFP Modules
● Hot-swappable input/output device that plugs into a 100G Gigabit Ethernet Cisco QSFP port.
● Interoperable with other IEEE-compliant 100GBASE interfaces where applicable.
● Certified and tested on Cisco QSFP-100G ports for superior performance, quality, and reliability.
● High-speed electrical interface compliant to IEEE 802.3bm.
Specification
| QSFP-100G-SM-SR Specification | |
| Model | QSFP-100G-SM-SR |
| Brand | Cisco |
| Description | Cisco 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Nominal Wavelength (nm) | 1271, 1291, 1311, 1331 |
| Cable Type | SMF |
| Core Size (Microns) | G.652 |
| Cable Distance | 2km |
| Power Consumption (W) | 3.5 |
| Pull Tab Color | Green |
| Transmit Power (dBm) per lane | Max: +2.5 / Min: -6.9 |
| Receive Power (dBm) per lane | Max: +2.5 / Min: -11.1 |
| Receive Power (dBm) per lane | Four lanes: 1271, 1291, 1311, 1331 |
| Commercial Temperature | +10 to 60°C (50 to 140°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Standards | • SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013 • SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014 • 802.3-2012 IEEE Standard for Ethernet • IEEE 802.3ba Amendment of IEEE Std 802.3-2012 • IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014) • GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable • GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies • GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment • GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors • RoHS 6 |
| Safety | • Cable jacket of QSFP copper modules is UL E116441 Compliant • QSFP copper cables are ELV compliant |
Related Products
| Cisco 100GBASE QSFP-100G Modules | |
| Part Number | Description |
| QSFP-100G-SR4-S | Cisco 100GBASE-SR4 QSFP Transceiver, MPO-12, 100m over OM4 MMF |
| QSFP-100G-SL4 | Cisco 100GBASE-SL4 QSFP Transceiver, MPO-12, 30m over OM4 MMF |
| QSFP-100G-SR1.2 | Cisco 100GBASE SR-BIDI QSFP Transceiver, LC, 100m OM4 MMF |
| QSFP-40/100-SRBD | Cisco 100G and 40G SR-BiDi QSFP Transceiver, LC, 100m OM4 MMF |
| QSFP-100G-SR-S | Cisco 100GBASE-SR1 QSFP Transceiver, LC, 100m over OM4 MMF |
| QSFP-100G-PSM4-S | Cisco 100G PSM4 QSFP Transceiver, MPO-12, 500m over SMF |
| QSFP-100G-DR-S | Cisco 100GBASE-DR QSFP Transceiver, 500m over SMF |
| QSFP-100G-FR-S | Cisco 100GBASE-FR1 QSFP Transceiver, 2km over SMF |
| QSFP-100G-CWDM4-S | Cisco 100G CWDM4 QSFP Transceiver, LC, 2km over SMF |
| QSFP-100G-SM-SR | Cisco 100G CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C |
| QSFP-100G-LR-S | Cisco 100GBASE-LR1 QSFP Transceiver, 10km over SMF |
| QSFP-100G-LR4-S | Cisco 100GBASE-LR4 QSFP Transceiver, LC, 10km over SMF |
| QSFP-100G-LR4-I | Cisco 100GBASE-LR4 QSFP I-Temp Transceiver, LC, 10km over SMF |
| QSFP-100G-ERL-S | Cisco 100GBASE-ER-Lite QSFP Transceiver, 25km over SMF |
| QSFP-100G-B20U4-I | Cisco 100GBASE BIDI 20KM reach over SMF, Duplex LC |
| QSFP-100G-B20D4-I | Cisco 100GBASE BIDI 20KM reach over SMF, Duplex LC |
| QSFP-100G-ER4L-S | Cisco 100G ER4-Lite QSFP Transceiver, 40KM reach over SMF, Duplex LC |
| QSFP-100G-4W40-I | Cisco 100G WDM-40 QSFP Transceiver, 40KM reach over SMF, Duplex LC |
| QSFP-100G-ZR4-S | Cisco 100GBASE-ZR4 QSFP Transceiver, 80KM reach over SMF, Duplex LC |
