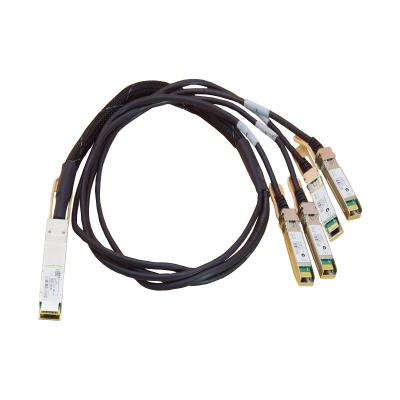

QSFP-4SFP25G-CU1M, Cisco 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1-Meter
Model No.: QSFP-4SFP25G-CU1M
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * QSFP-4SFP25G-CU1M: Cisco 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1-Meter
Cisco QSFP-4SFP25G-CUxM
Cisco QSFP-100G to Four SFP-25G Copper Direct-Attach Breakout Cables are suitable for very short links and offer a cost-effective way to connect within racks and across adjacent racks. These breakout cables connect to a 100G QSFP port of a Cisco switch on one end and to four 25G SFP ports of a Cisco switch/server on the other end. Cisco currently offers passive cables in lengths of x=1, 1.5, 2, 2.5, 3 and 5 meters.
Specification
| QSFP-4SFP25G-CU1M Specification | |
| Model | QSFP-4SFP25G-CU1M |
| Brand | Cisco |
| Description | Cisco 100GBase QSFP to 4xSFP25G Passive Copper Splitter Cable, 1-Meter |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Nominal Wavelength (nm) | \ |
| Cable Type | Direct-attach copper cable assembly |
| Core Size (Microns) | \ |
| Modal Bandwidth (MHz*km)*1 | \ |
| Cable Distance | 1m |
| Power Consumption (W) | 1.5 |
| Pull Tab Color | Beige |
| Commercial temperature | 0 to 70°C (32 to 158°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
| Standards | • SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013 • SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014 • 802.3™-2012 IEEE Standard for Ethernet • IEEE 802.3ba Amendment of IEEE Std 802.3-2012 • IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014) • GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable • GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies • GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment • GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors • RoHS 6 |
| Safety | • Cable jacket of QSFP copper modules is UL E116441 Compliant • QSFP copper cables are ELV compliant |
Related Products
| Cisco QSFP to QSFP Direct-Attach Copper Cables 100GBASE-CR4 | |
| QSFP-100G-CU1M | Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 1-Meter |
| QSFP-100G-CU1.5M | Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 1.5-Meter |
| QSFP-100G-CU2M | Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 2-Meter |
| QSFP-100G-CU2.5M | Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 2.5-Meter |
| QSFP-100G-CU3M | Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 3-Meter |
| QSFP-100G-CU5M | Cisco 100GBASE-CR4 QSFP Passive Copper Cable, 5-Meter |
| Cisco QSFP-100G to Four SFP-25G Copper Direct-Attach Breakout Cables | |
| QSFP-4SFP25G-CU1M | Cisco 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1-Meter |
| QSFP-4SFP25G-CU1.5M | Cisco 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 1.5-Meter |
| QSFP-4SFP25G-CU2M | Cisco 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2-Meter |
| QSFP-4SFP25G-CU2.5M | Cisco 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 2.5-Meter |
| QSFP-4SFP25G-CU3M | Cisco 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 3-Meter |
| QSFP-4SFP25G-CU5M | Cisco 100G QSFP to 4xSFP25G Passive Copper Splitter Cable, 5-Meter |
